NSK 3311 Double ROW Angular Contact Ball Bearing

Manufacturer: NSK

Type: Double Row Angular Contact Ball Bearing

Model: 3311

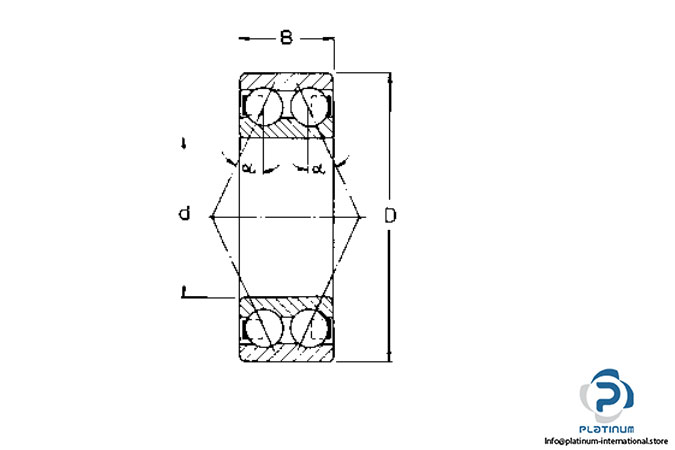

Dimensions

Bore Diameter d: 55 mm

Outer diameter D: 120 mm

Width B: 49.2 mm

Contact angle: 32 °

Basic load ratings, radial:

Dynamic C_r: 100500 N

Static C_0r: 115300 N

Limiting speed:

Lubrication with Grease: 3600 rpm

Lubrication with Oil: 4800 rpm
