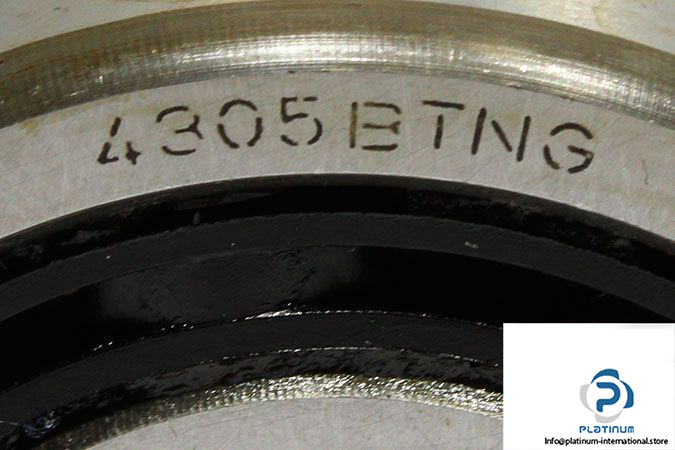

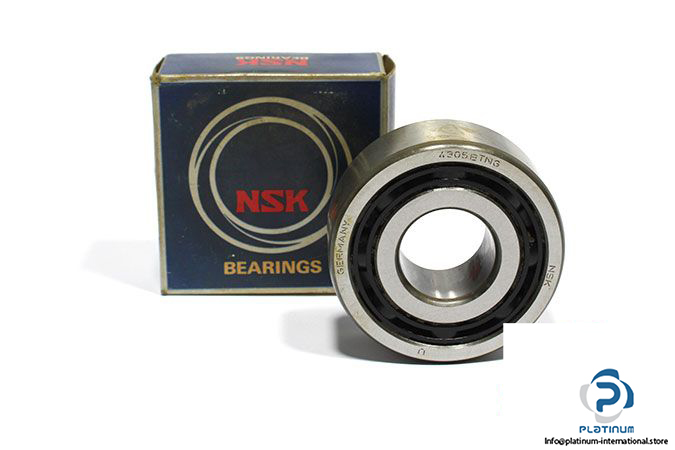

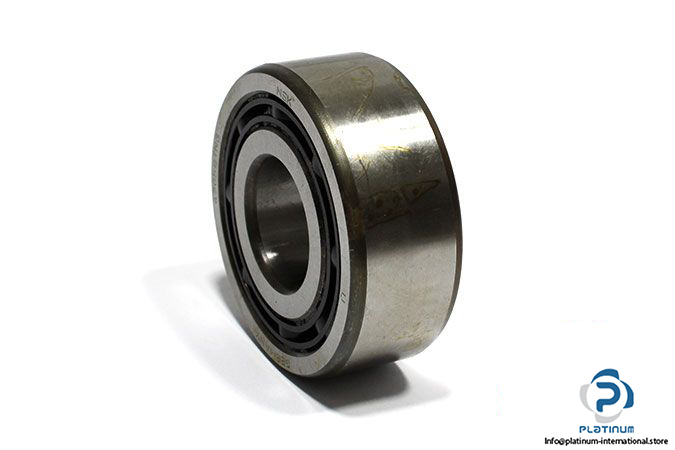

NSK 4305 Btng Double ROW Deep Groove Ball Bearing

Manufacturer: NSK

Type: Double Row Deep Groove Ball Bearing

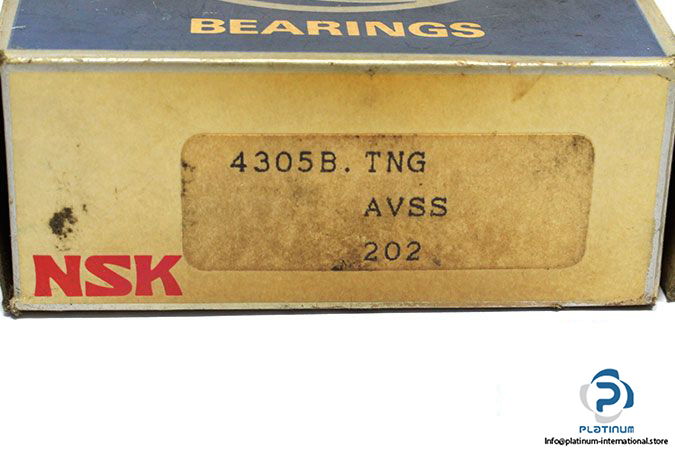

Model: 4305B.TNG AVSS

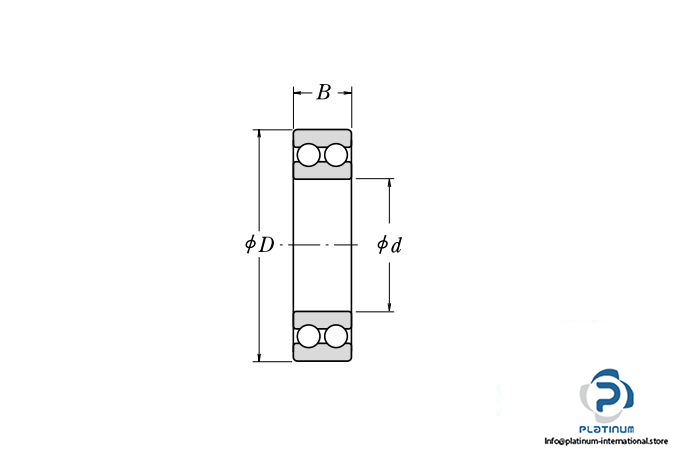

Dimensions

Bore Diameter d: 25 mm

Outer diameter D: 62 mm

Width B: 24 mm

Chamfer dimension r_{S min}: 1.1 mm

Basic load ratings:

Dynamic C: 31500 N

Static C₀: 22400 N

Limiting Speeds:

Grease: 8000 rpm

Oil: 10000 rpm

Cage: Polyamide cage

Weight: 0.34 kg
