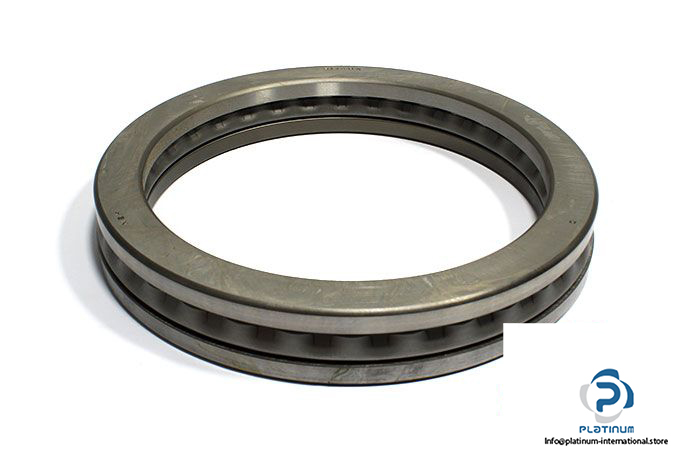

NSK 51140X Thrust Ball Bearing
Manufacturer: NSK
Type: Single Direction Thrust Ball Bearings

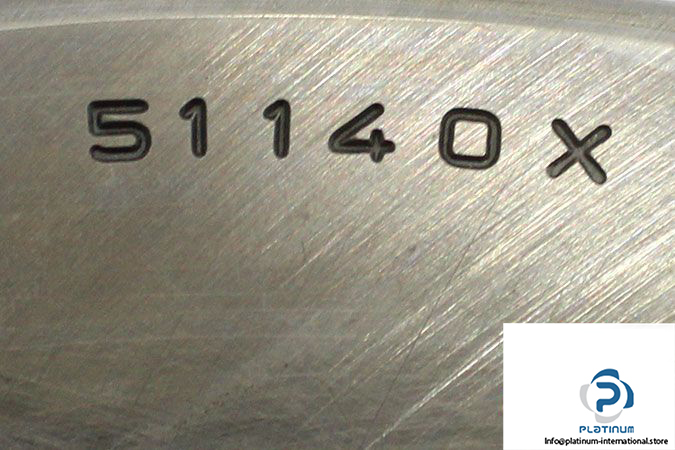

Model: 51140 X

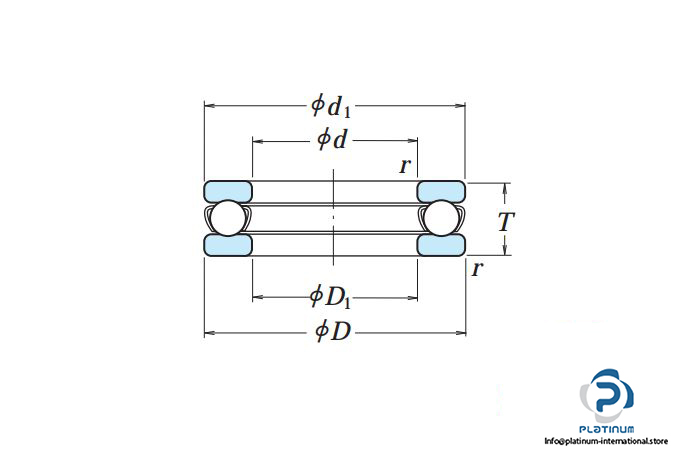

Dimensions
Bore diameter d: 200 mm
Outer diameter D: 250 mm
Height T: 37 mm
Outside diameter shaft washer d1: 247 mm
Inner diameter housing washer D1: 203 mm
Minimum chamfer dimension rmin: 1.1 mm
Basic load ratings:
Dynamic Ca: 173 kN
Static C0a: 675 kN
Allowable speed:
Grease lubrication: 1000 rpm
Oil lubrication: 1500 rpm
Cage: Pressed Steel cage
Weight: 3.9 kg
