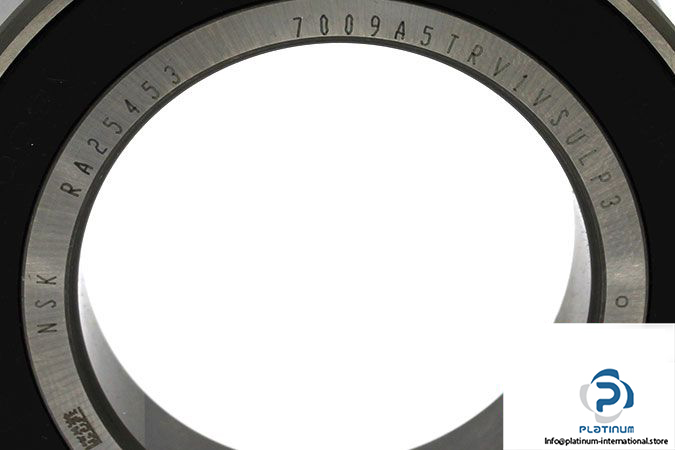

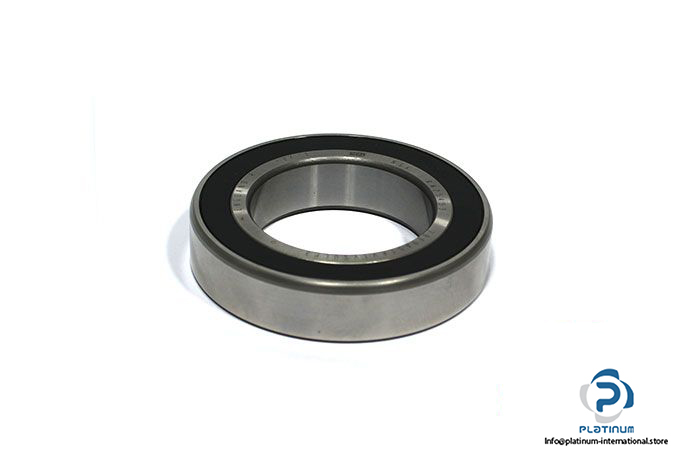

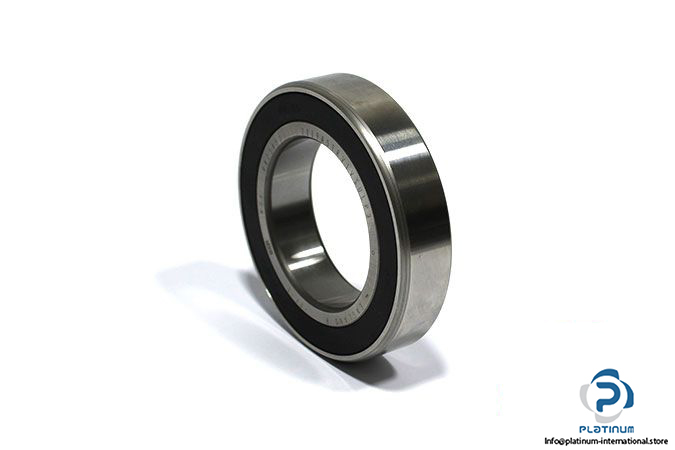

NSK 7009 A5TRV1VSULP3 Angular Contact Ball Bearing
Manufacturer: NSK
Type: Super Precision Sealed Angular Contact Ball Bearing
Model: 7909A5TRV1VSULP3

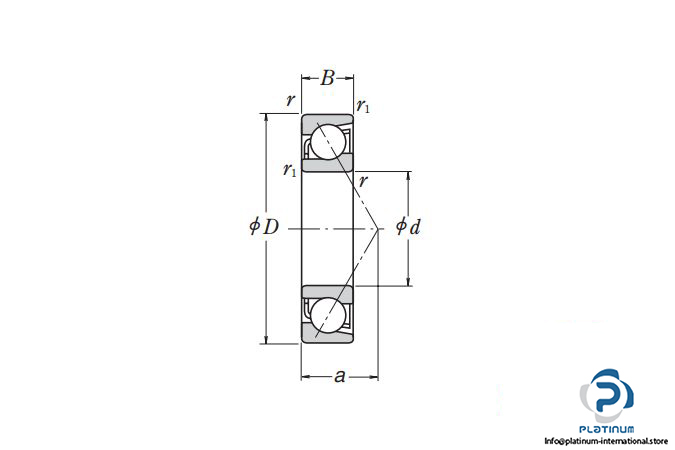

Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 75 mm
Width B: 16 mm
Contact angle α: 25 °
Basic load ratings:
Dynamic Cr: 23100 N
Static C0r: 18300 N
Limiting Speed (Grease): 16700 rpm
Accuracy: P3
Preload: L, light preload
Cage: TR, phenol resin cage
Seal: V1V, non-contact rubber seal
Weight: 0.24 kg
