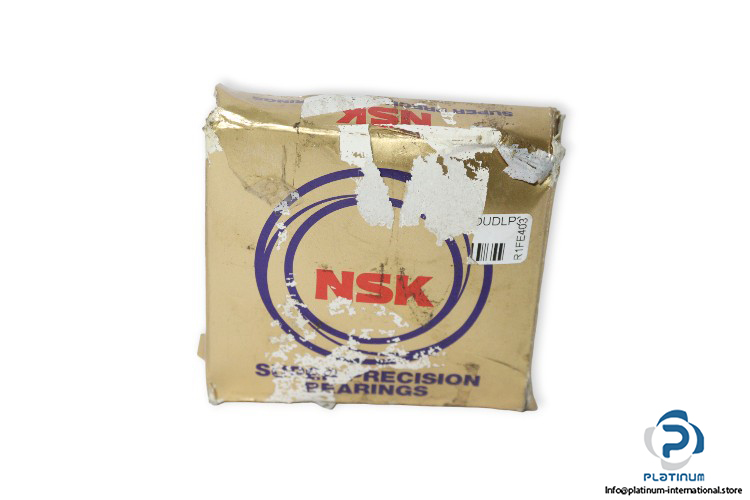

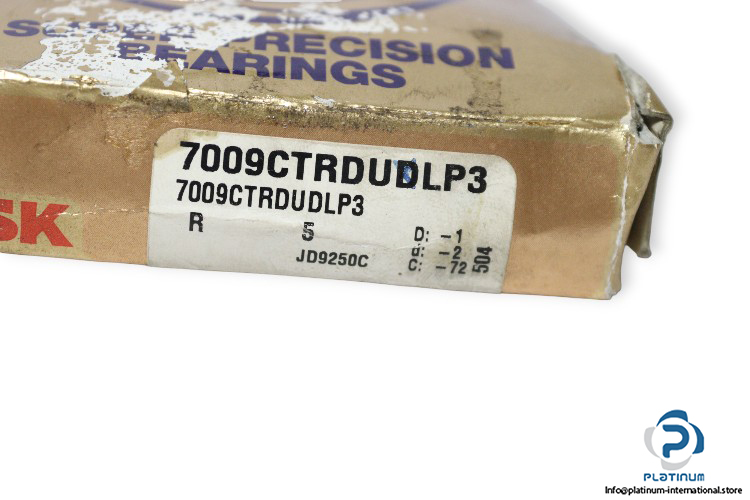

NSK 7009CTRDUDLP3 Angular Contact Ball Bearing
Manufacturer: NSK
Type: Angular Contact Ball Bearing
Model: 7009 CTR DUDLP3
Dimensions
Bore Diameter d: 45 mm
Outer diameter D: 75 mm
Width B: 16 mm
Basic load ratings:
Dynamic Cr: 24400 N
Static C0r: 19300 N
Limiting speed with Oil: 19000 rpm
Limiting speed with Grease: 14000 rpm
Contact Angle: C, 15°
Preload: L, Light Preload
Cage Material: TR, Phenolic
Grouping: DUD, Set of spindle bearings consisting of 3 universal bearings
Precision Rating: P3
