Bearings Rolling Bearings Angular Contact

NSK 70BNR10STYNDBBELP4Y Angular Contact Ball Bearing

Name: NSK 70BNR10STYNDBBELP4Y ANGULAR CONTACT BALL BEARING
SKU: 1076923
Availability: LimitedAvailability

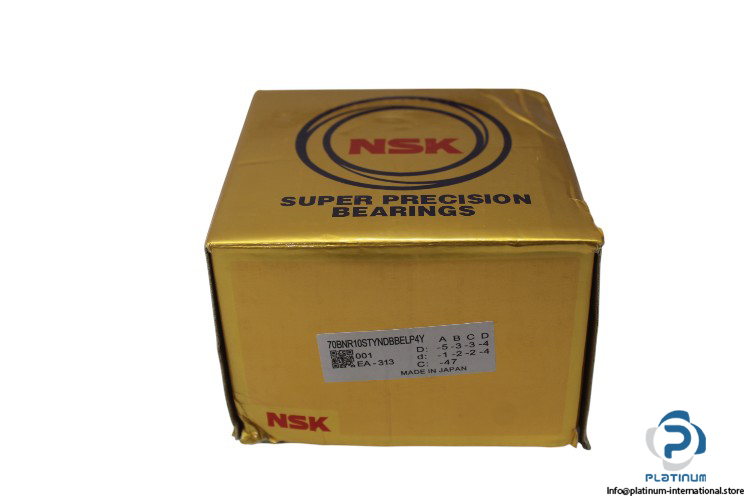

nsk-70BNR10STYNDBBELP4Y-angular-contact-ball-bearing-new-carton

nsk-70BNR10STYNDBBELP4Y-angular-contact-ball-bearing-new-carton-1

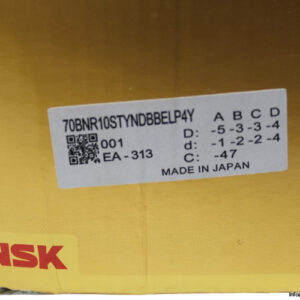

nsk-70BNR10STYNDBBELP4Y-angular-contact-ball-bearing-new-carton-2

New

Available on request

Angular Contact Ball Bearing

NSK 70BNR10STYNDBBELP4Y Angular Contact Ball Bearing features a 70 mm bore diameter, 110 mm outer diameter, and 20 mm width. With dynamic load capacity of 22300 N and 18° contact angle, it is designed for high-precision industrial applications.

Manufacturer

NSK

SKU

1076923

Category

Angular Contact

Condition

New

22300 70 70BNR10STYNDBBELP4Y Angular back-to-back Ball bearing bearings bore Contact DBB Dynamic High Load mm N NSK Precision

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

NSK 70BNR10STYNDBBELP4Y Angular Contact Ball Bearing

The NSK 70BNR10STYNDBBELP4Y Angular Contact Ball Bearing is designed for high-precision applications, offering high dynamic and static load capacities. With an 18° contact angle and back-to-back arrangement, this bearing ensures excellent performance in various industrial settings.

Manufacturer: NSK

Type: Angular Contact Ball Bearing

Model: 70BNR10STYNDBBELP4Y

Bore Diameter	70 mm
Outer Diameter	110 mm
Width	20 mm
Dynamic Load	22300 N
Static Load	19800 N
Bearing Material	Steel (SUJ2)
Cage	TYN, Ball guided polyamide resin
Tolerance Class	P4Y
Preload	EL
Contact Angle	18° (BNR)
Arrangement	DBB, Back-to-back arrangement
Item per Set	4
