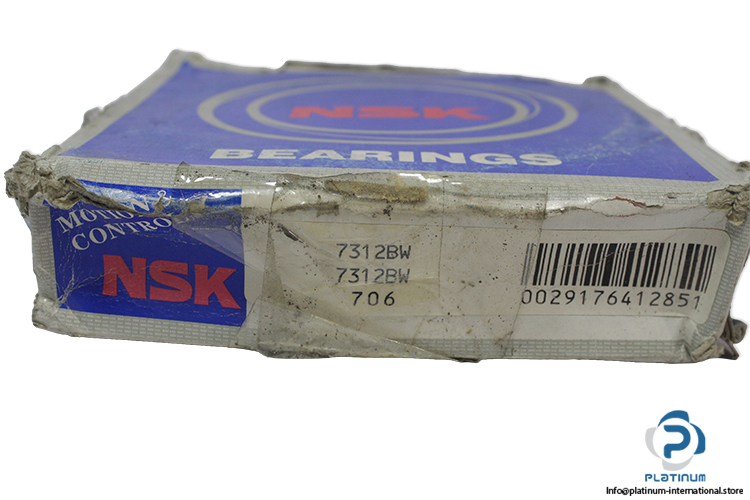

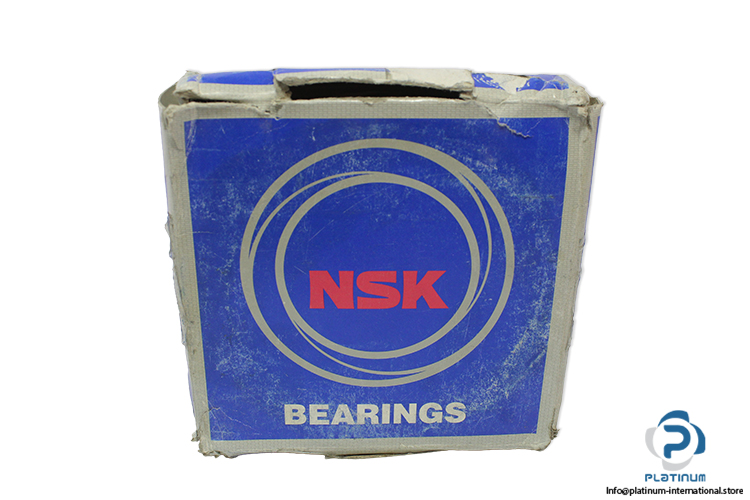

NSK 7312 BW Angular Contact Ball Bearing
New
In stock1 unitReady to ship
Angular Contact Ball Bearing
NSK 7312BW single row angular contact ball bearing with 40° contact angle, high load capacity, and pressed steel cage for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NSK 7312BW Single Row Angular Contact Ball Bearing
A high-precision single row angular contact ball bearing manufactured by NSK, designed to support combined radial and axial loads while maintaining high rotational accuracy. With a 40-degree contact angle and robust pressed steel cage, this bearing is suitable for demanding industrial applications requiring reliable performance and high load capacity.
Manufacturer: NSK
Type: Single Row Angular Contact Ball Bearing
Model: 7312BW
Basic Load Ratings
Speed Ratings
| Bore Diameter (d) | 60 mm |
| Outer Diameter (D) | 130 mm |
| Width (B) | 31 mm |
| Contact Angle | 40 degrees |
| Dynamic Load Rating (Cr) | 107000 N |
| Static Load Rating (C0r) | 68500 N |
| Oil Limiting Speed | 4500 rpm |
| Grease Limiting Speed | 3400 rpm |
| Cage | Pressed Steel |
