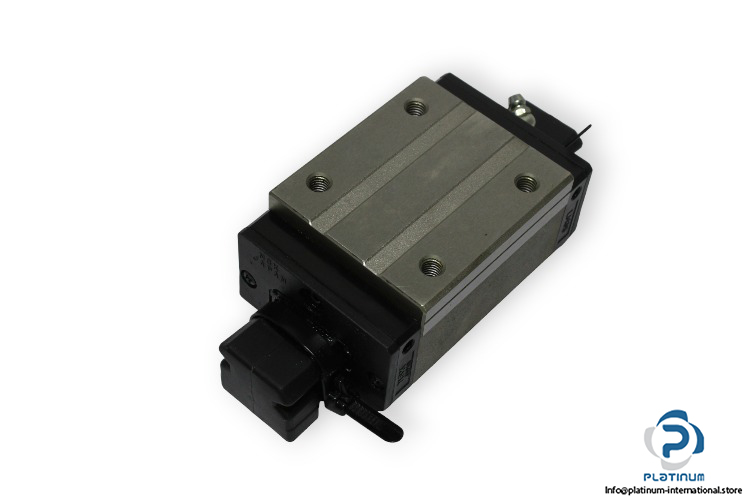

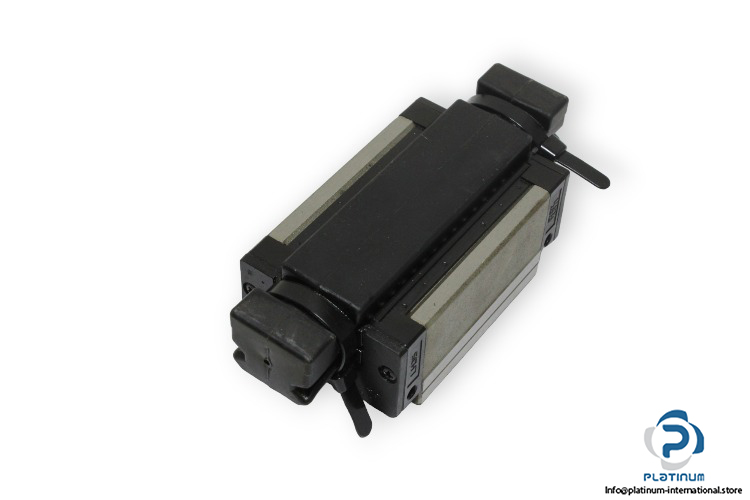

NSK LAH35AN Linear Bearing Block
Manufacturer: NSK
Type: Linear Guideway Block

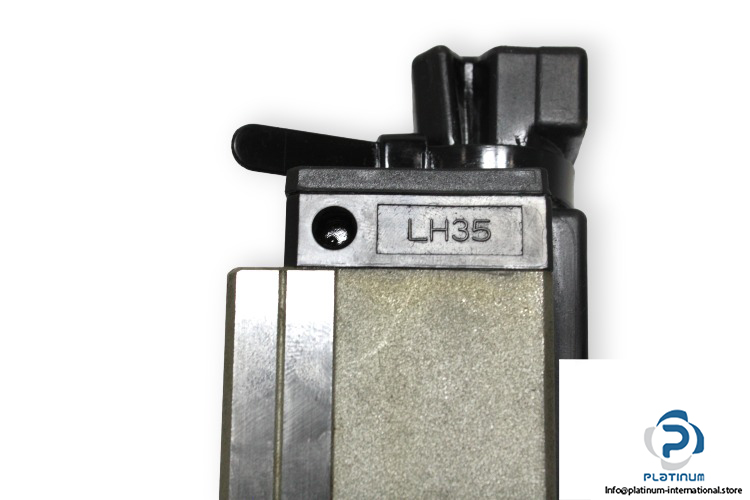

Model: LAH 35 AN , LH35AN
Size: 35

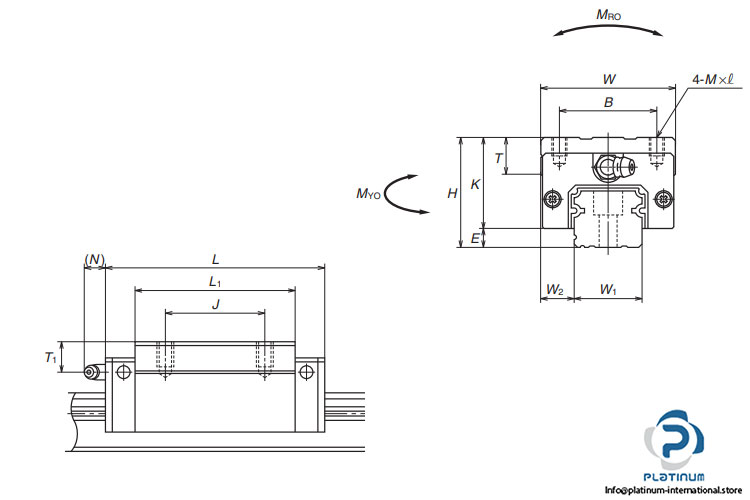

Dimensions
Total Height H: 55 mm
Block Height K: 45.5 mm
Width W: 70 mm
Block Length L: 109 mm
B: 50 mm
J: 50 mm
L1: 80 mm
Block Type: Square Type
Mounting Hole: 4 Tapped holes
Hole size: M6 x 0.75
Basic Load Ratings:
Dynamic C50: 47500 N
Dynamic C100: 37500 N
Static C0: 80500 N
