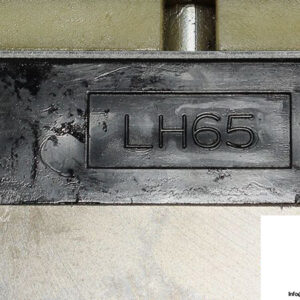

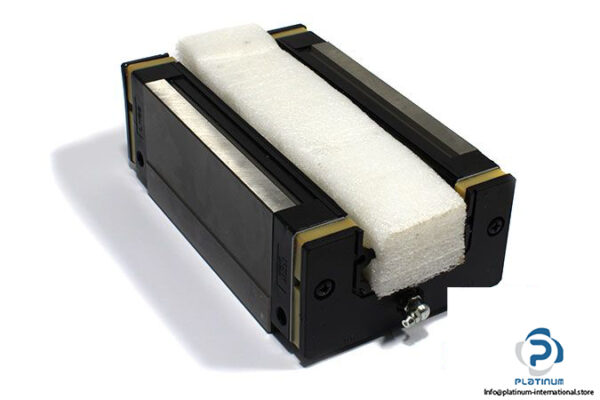

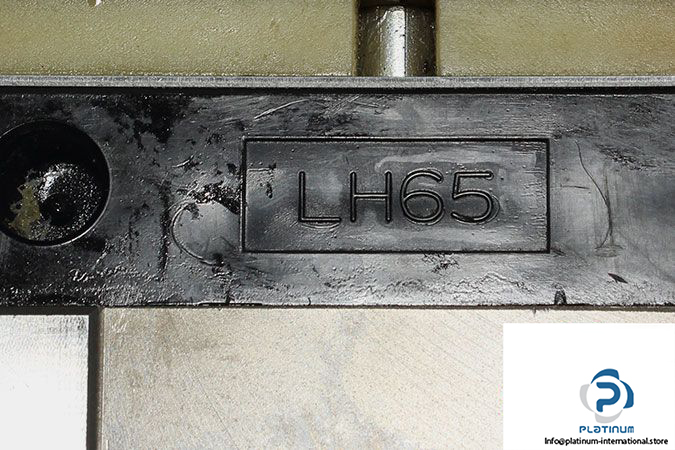

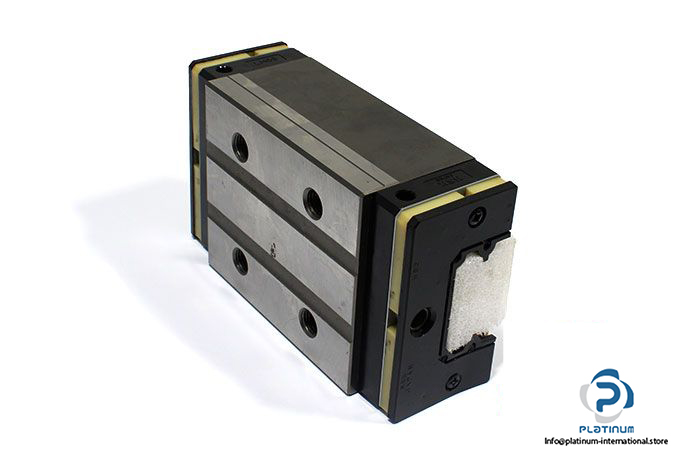

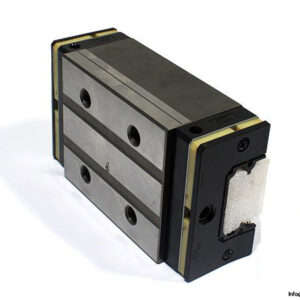

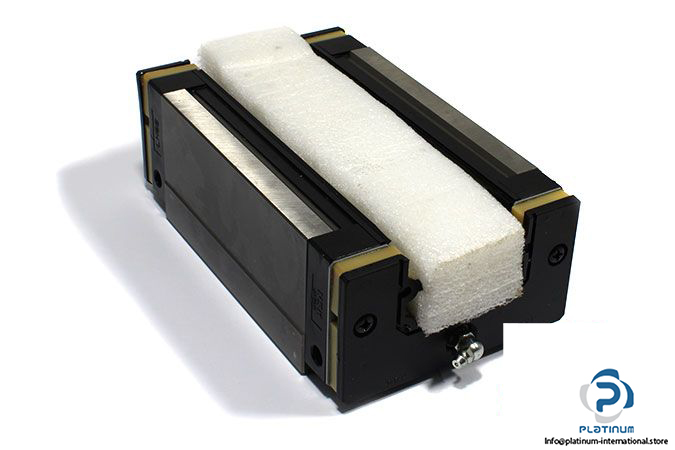

NSK LH65AN Linear Guideway Block

Manufacturer: NSK

Type: Linear Guides LH Series

Model: LAH 65 AN

Size: 65

Block Type: Square Type

Basic Load Ratings:

Dynamic C: 181000 N

Static C₀: 281000 N

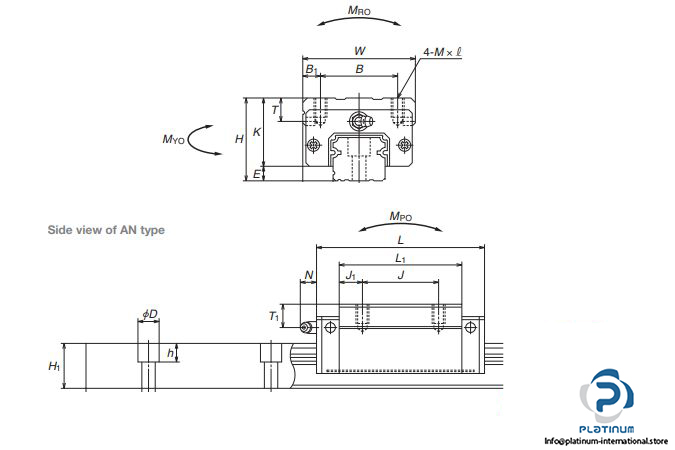

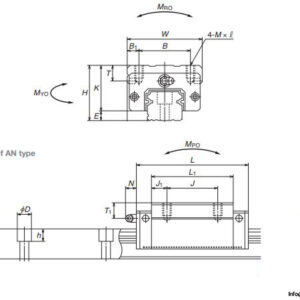

Dimensions

Total Height H: 90 mm

Block Width W: 126 mm

Block Length with double seal: 210 mm

B: 76 mm

J: 70 mm

Weight: 7.8 kg
