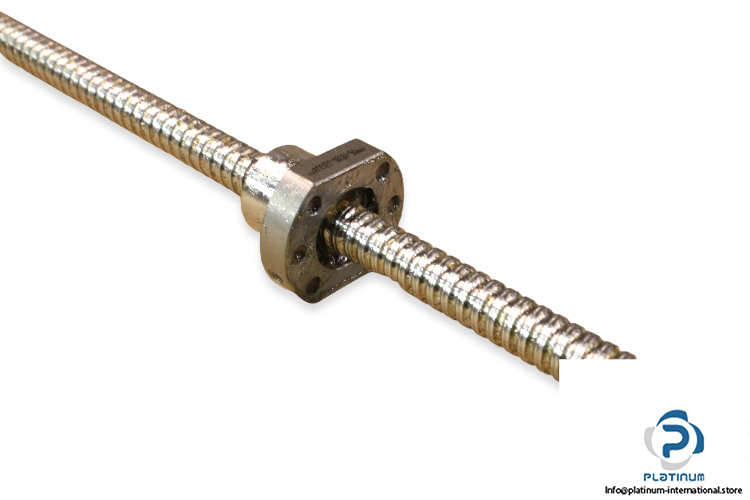

NSK VSP1505N1D0600PP Ball Screw

Manufacturer: NSK

Type: Precision rolled ball screw PR Series

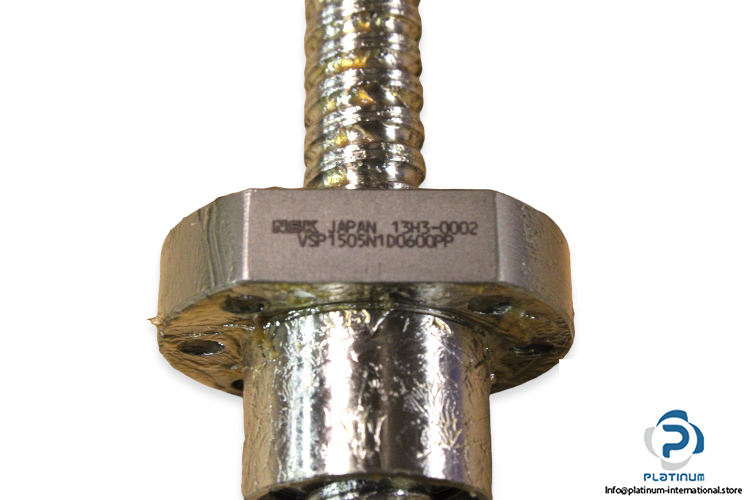

Model: VSP1505N1D0600PP

Part No.: PR1505

Size: 15 x 5 R

Nominal Diameter d: 15 mm

Lead l: 5 mm

Effective turns of balls: 2.7 × 1

Direction of Lead: Right-Hand Thread

Dynamic Rating Load C_a: 5460 N

Static Rating Load C_oa: 10200 N

Accuracy: V; Ct7 grade

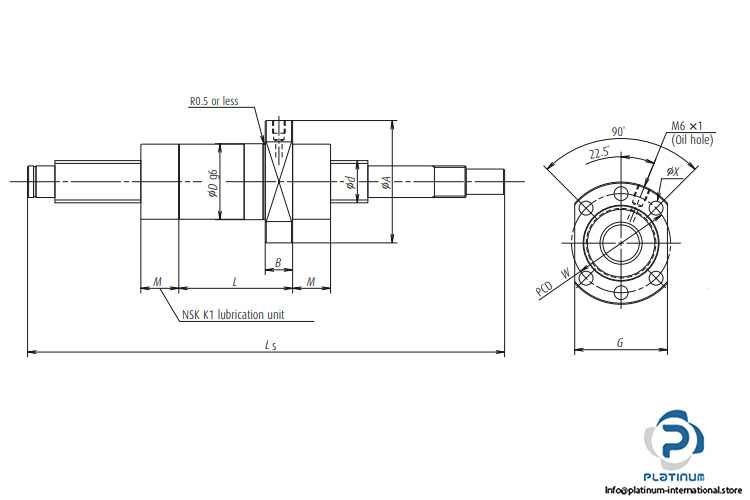

Dimensions:

A: 48 mm

D: 28 mm

L : 30 mm

G: 40 mm

B: 11 mm

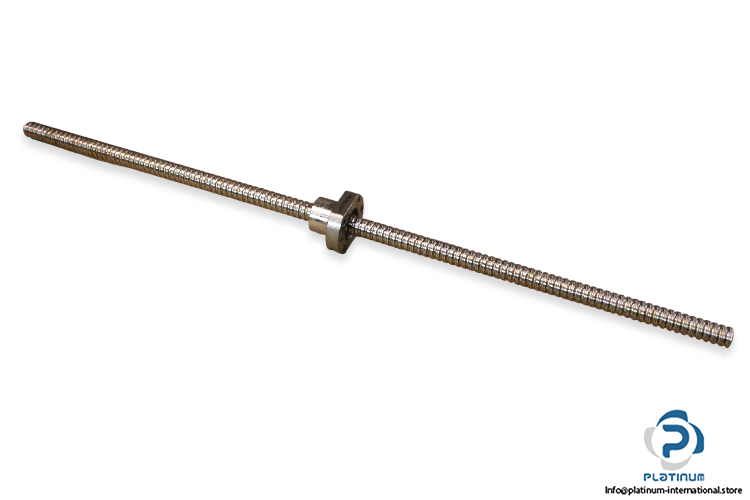

Over length for screw shaft: 600 mm
