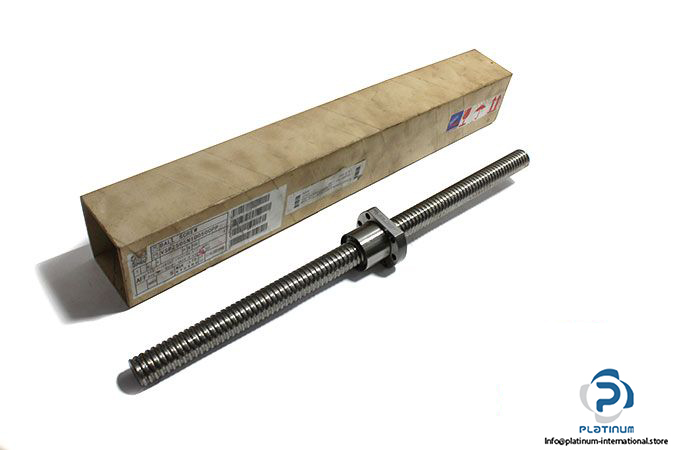

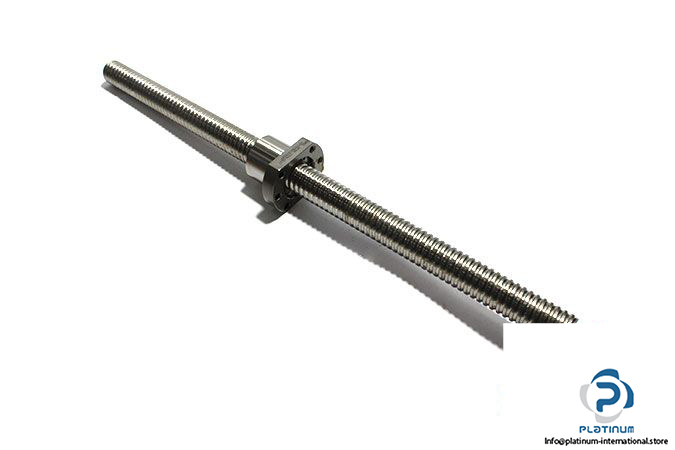

NSK VSP2505N1D0500PP Ball Screw

Manufacturer: NSK

Type: Precision rolled ball screw PR Series

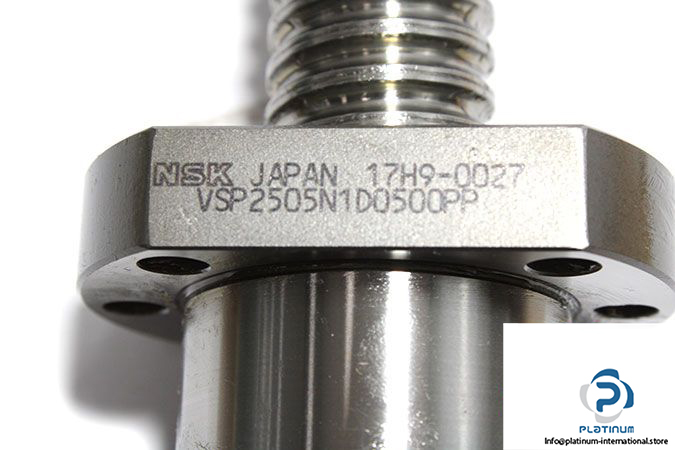

Part No.: VSP2505N1D0500PP

Model: PR2505

Size: 25 x 5 R

Nominal Diameter d: 25 mm

Lead l: 5 mm

Effective turns of balls: 4.7 × 1

Direction of Lead: Right-Hand Thread

Dynamic Rating Load C_a: 15700 N

Static Rating Load C_oa: 40900 N

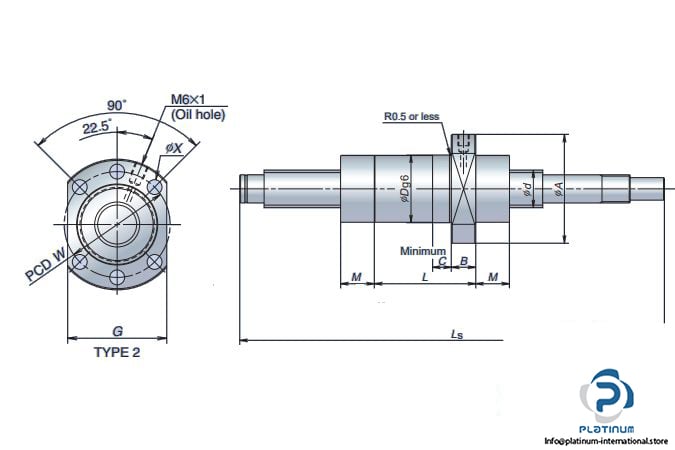

Dimensions:

A: 62 mm

D: 40 mm

L : 42 mm

G: 48 mm

Over length for screw shaft: 500 mm

Weight: 2.54 kg
