NSK W3205M-19Z-C5Z-96S6-3001 Ball Screw

In stock1 unitReady to ship

NSK Flange Nut Ball Screw provides precision with a 32 mm nominal diameter, 5 mm lead, and a threaded length of 550 mm, offering C5 accuracy grade and zero clearance preload.

Manufacturer:
NSK
Type:
Flange Nut Ball Screw
Model:
W3205M-19Z-C5Z-96S6-3001 The
Manufacturer
NSK
SKU
1057872
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

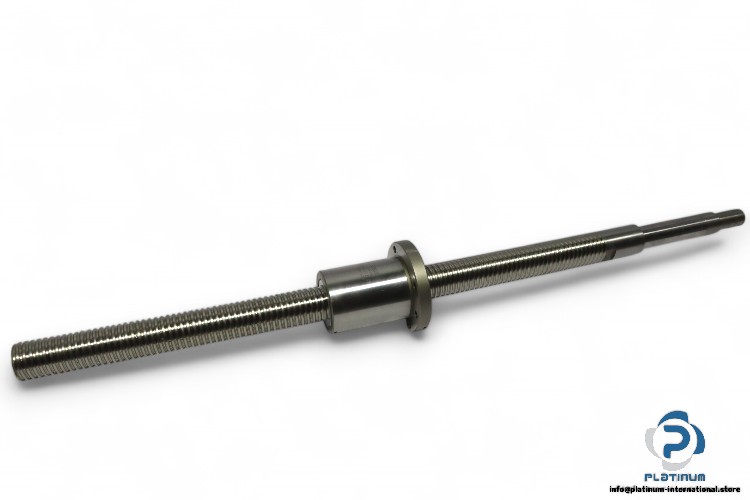

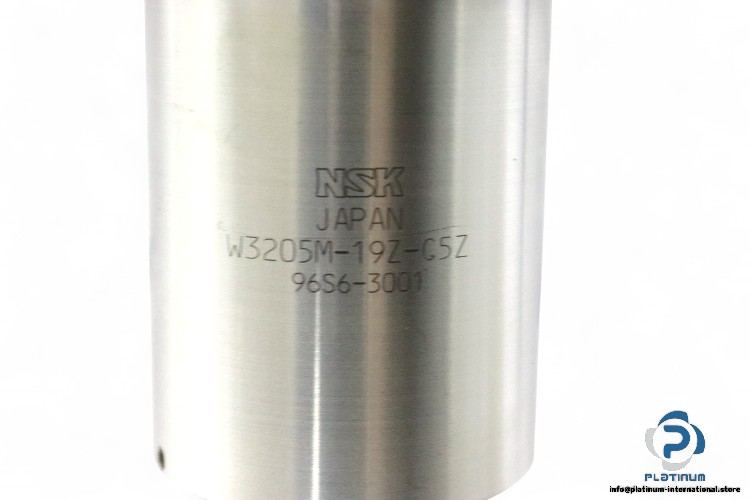

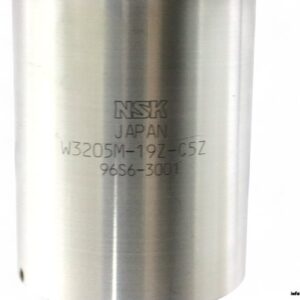

Flange Nut Ball Screw (Model: W3205M-19Z-C5Z-96S6-3001)

Manufacturer: NSK

Type: Flange Nut Ball Screw

Model: W3205M-19Z-C5Z-96S6-3001

The NSK Flange Nut Ball Screw (Model: W3205M-19Z-C5Z-96S6-3001) is designed for high-performance applications with precision features such as zero clearance preload and accurate ball screw specifications. Ideal for mechanical systems requiring precise motion control and durability.

  • Manufacturer: NSK
  • Type: Flange Nut Ball Screw
  • Model: W3205M-19Z-C5Z-96S6-3001
  • Size: 32 x 5 R
  • Nominal Diameter (dN): 32 mm
  • Lead (P): 5 mm
  • Number of Starts: 1
  • Direction of Lead: Right-Hand Thread
  • Threaded Length: 550 mm
  • Total Screw Length: 750 mm
  • Accuracy Grade: C5
  • Clearance/Preload Code: Z, Preloaded (Zero Clearance)
  • Design Sequence Number: 19
  • Ball Screw Specifications / Appearance: Z, Single Nut, Offset Type Preload
NSK 51117 Thrust Ball Bearing
New

NSK

NSK 51117 Thrust Ball Bearing

SKU: 1101214

Qty: 1

Available through quotation
NSK 20TAC47B Angular Contact Ball Bearing
New

NSK

NSK 20TAC47B Angular Contact Ball Bearing

SKU: 1098501

Qty: 1

Available through quotation
NSK 4302 Deep Groove Ball Bearing
Used

NSK

NSK 4302 Deep Groove Ball Bearing

SKU: 1098471

Qty: 1

Available through quotation
NSK 3205 Btng Double-ROW Angular Contact Ball ?Bearing
New

NSK

NSK 3205 Btng Double-ROW Angular Contact Ball ?Bearing

SKU: 1098451

Qty: 1

Available through quotation
NSK Nskhps 7005C DBLP5 Angular Contact Ball Bearing
New

NSK

NSK Nskhps 7005C DBLP5 Angular Contact Ball Bearing

SKU: 1101169

Qty: 4

Available through quotation

Related Products

Scaravella 25050202 Ball Screw
New

Scaravella 25050202 Ball Screw

SKU: 1000803

Qty: 6

Available through quotation
Steinmeyer 149854 Ball Screw
New

STEINMEYER

Steinmeyer 149854 Ball Screw

SKU: 1008117

Qty: 4

Available through quotation
INA KGF25X05-2A4 Ball Screw
NewAvailable on request

INA KGF25X05-2A4 Ball Screw

SKU: 1003859

Available on request

Available through quotation
Rexroth Star 1512-3-7013 Flanged Single NUT FEM-E-S
NewAvailable on request

REXROTH

Rexroth Star 1512-3-7013 Flanged Single NUT FEM-E-S

SKU: 992474

Available on request

Available through quotation
NSK VSP1505N1D0400PP Ball Screw
New

NSK VSP1505N1D0400PP Ball Screw

SKU: 1000225

Qty: 7

Available through quotation
Platinum International
Surplus, New & Used - Always Reliable
NSK SKU: 1057872
NSK W3205M-19Z-C5Z-96S6-3001 Ball Screw
NSK W3205M-19Z-C5Z-96S6-3001 Ball Screw
PriceOn Request
Stock1 In stock
ManufacturerNSK
CategoryScrew & Ball Screws
ConditionNew
SKU1057872

Manufacturer: NSK

Type: Flange Nut Ball Screw

Model: W3205M-19Z-C5Z-96S6-3001

The NSK Flange Nut Ball Screw provides precision with a 32 mm nominal diameter, 5 mm lead, and a threaded length of 550 mm, offering C5 accuracy grade and zero clearance preload.

Technical Specifications
Weight5,2 kg
ConditionNew
ManufacturerNSK
Flange Thickness [mm]12
Type of ProductFlange nut ball screw
Shelf No.250131
Nut Outer Diameter [mm]58
Flange Diameter [mm]85
Size32 x 5 R
Nut Length [mm]86
