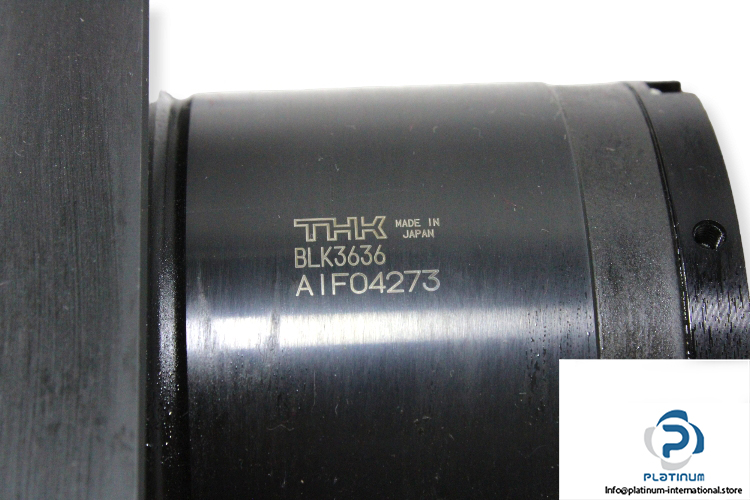

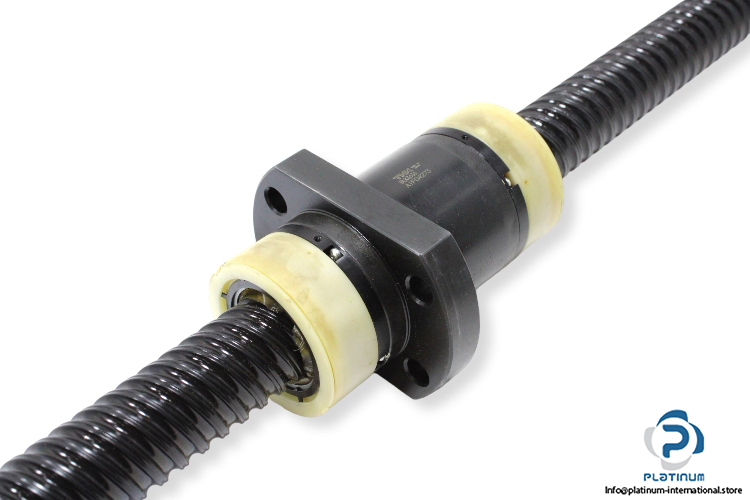

THK BLK3636 Ball Screw

Manufacturer: THK

Type: Ball screw BLK Series

Model: BLK 3636

Part no.: BLK 3636-3.6

Size: 36 x 36 R

Screw shaft outer diameter d: 36 mm

Lead Ph: 36 mm

No. of loaded circuits: 2 x 1.8

Direction of Lead: Right-Hand Thread

Dynamic Rating Load C_a: 30.8 kN

Static Rating Load C_oa: 78 kN

Rigidity K: 490 N/μm

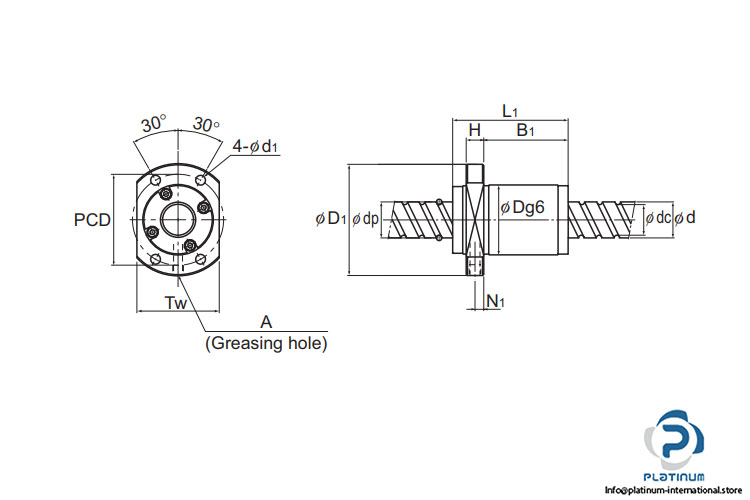

Dimensions:

Outer diameter D: 66 mm

Flange diameter D₁: 106 mm

Overall length L₁: 77 mm

H: 17 mm

B₁: 50 mm

Length with an option attached: 137 mm

Precision Grade: Full-Ball no preload

Available screw:

Total length: 1760 mm

Path length: 1620 mm

Nut Weight: 2.05 kg

Shaft Weight: 7.34 kg/m
