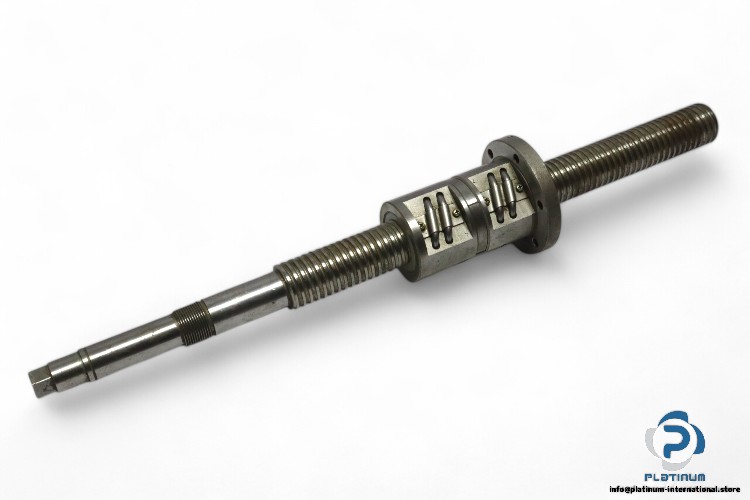

NSK W3206M-17D-C5Z8S8-004 Ball Screw
Used
In stock1 unitReady to ship
NSK Flange Nut Ball Screw offers high precision with a 32 mm nominal diameter, 6 mm lead, and 515 mm total screw length. Perfect for demanding applications requiring accuracy.
Manufacturer:
NSK
Type:
Flange Nut Ball Screw
Model:
W3206M-17D-C5Z8S8-004
The
AccuracyBallC5DoubleFlangegradeIndustrialNSKnutPrecisionPreloadRight-HandscrewThreadW3206M-17D-C5Z8S8-004With
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

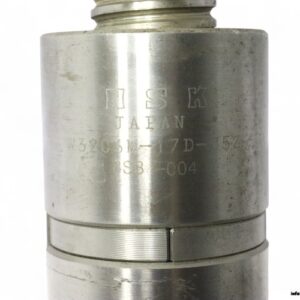

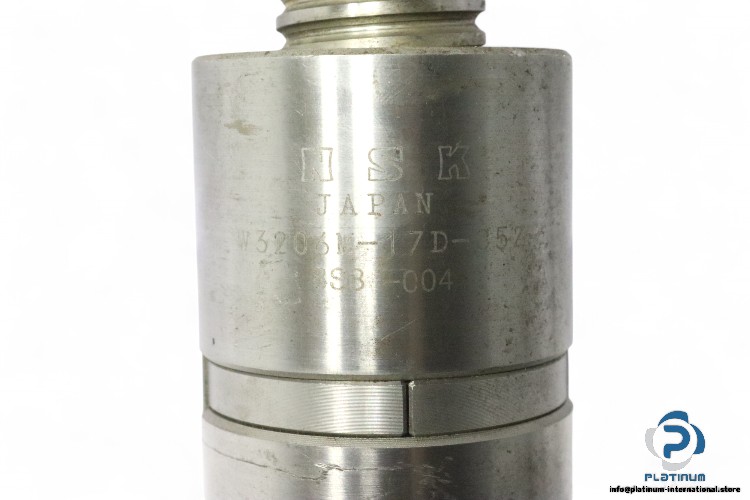

Flange Nut Ball Screw (Model: W3206M-17D-C5Z8S8-004)
Manufacturer: NSK
Type: Flange Nut Ball Screw
Model: W3206M-17D-C5Z8S8-004
The NSK Flange Nut Ball Screw (Model: W3206M-17D-C5Z8S8-004) offers high precision and durability in linear motion applications. Its robust design ensures optimal performance in industrial environments, making it a perfect choice for precision machinery.
- Manufacturer: NSK
- Type: Flange Nut Ball Screw
- Model: W3206M-17D-C5Z8S8-004
- Size: 32 x 6 R
- Nominal Diameter (dN): 32 mm
- Lead (P): 6 mm
- Number of starts: 1
- Direction of Lead: Right-Hand Thread
- Threaded Length: 350 mm
- Total Screw Length: 515 mm
- Accuracy Grade: C5
- Clearance / Preload Code: Z, Preloaded (Zero Clearance)
- Design Sequence Number: 17
- Ball Screw Specifications / Appearance: D, Double Nut Preload
