NTN 16040 Deep Groove Ball Bearing
New
In stock1 unitReady to ship
Deep Groove Ball Bearing
Single row NTN deep groove ball bearing with high load capacity, suitable for high-speed and heavy-duty industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

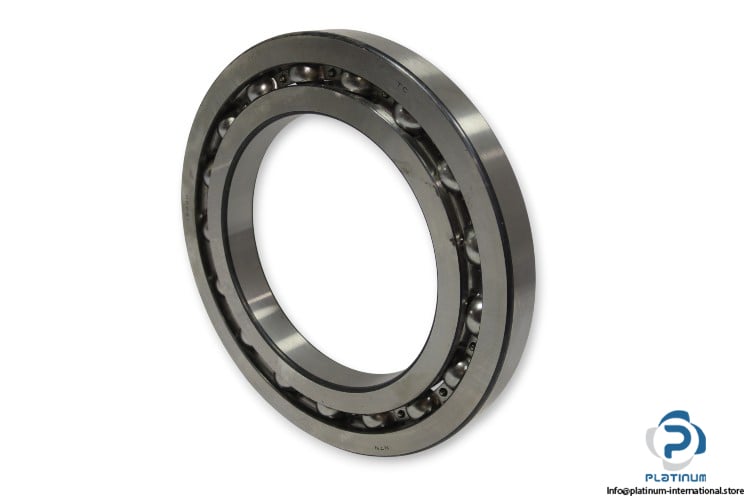

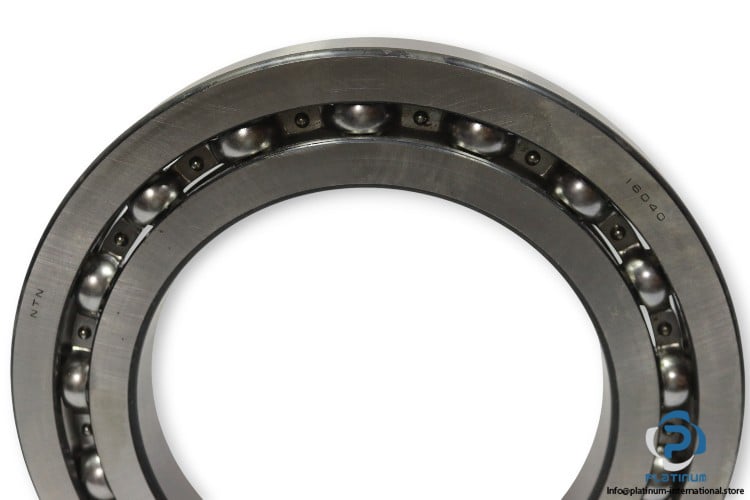

NTN 16040 Deep Groove Ball Bearing
The NTN 16040 is a single row deep groove ball bearing designed for high load capacity and reliable operation in demanding industrial environments. It offers stable performance at high speeds and supports both radial and axial loads.
Manufacturer: NTN
Type: Single Row Deep Groove Ball Bearing
Model: 16040
| Bore Diameter (d) | 200 mm |
| Outer Diameter (D) | 310 mm |
| Width (B) | 34 mm |
| Dynamic Load Rating | 157 kN |
| Static Load Rating | 160 kN |
| Fatigue Load Limit | 6.65 kN |
| Limiting Speed (Grease Lubrication) | 2000 tr/min |
| Limiting Speed (Oil Lubrication) | 2400 tr/min |
| Max Operating Temperature | 120 °C |
