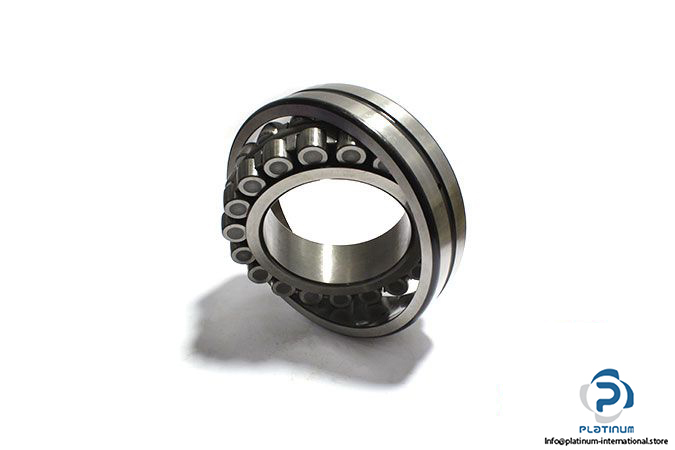

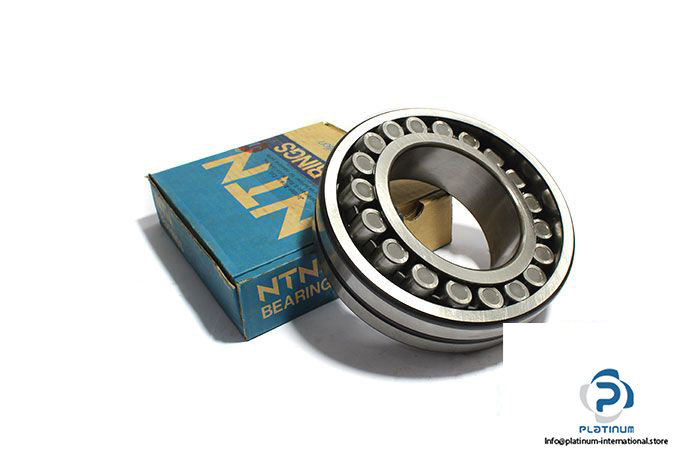

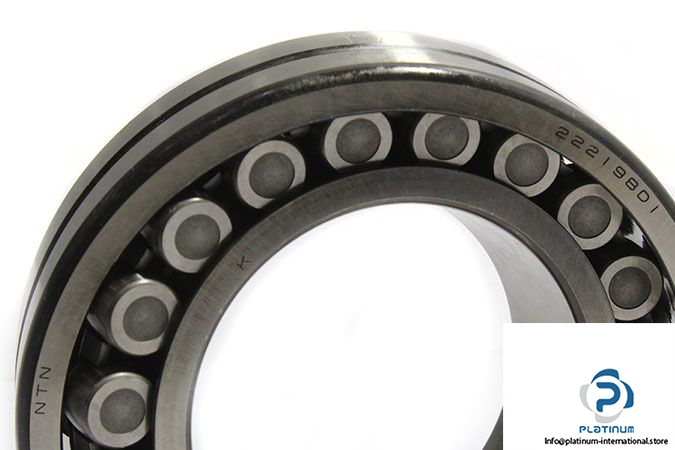

NTN 22219BKD1 Spherical Roller Bearing

Manufacturer: NTN

Type: Spherical Roller Bearing

Model: 22219 BKD1

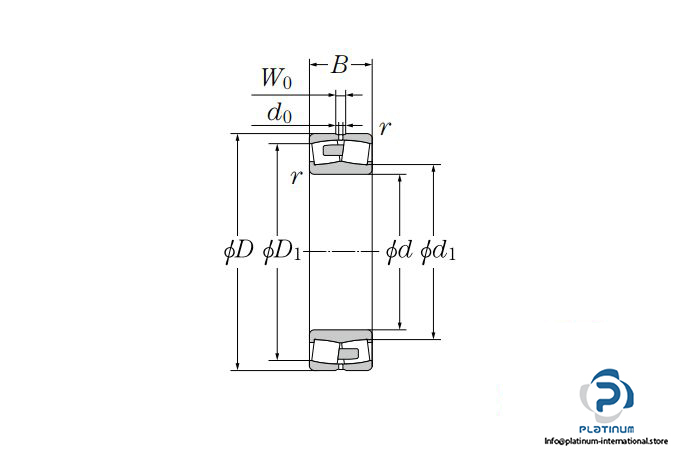

Dimensions:

Bore Diameter d: 95 mm

Outer diameter D: 170 mm

Width B: 43 mm

Minimum chamfer dimension r_{s min}: 2.1 mm

Basic load ratings:

Dynamic C_r: 416 kN

Static C_0r: 417 kN

Fatigue load limit C_u: 33.4 kN

Speed Rating (grease): 3000 rpm

Speed Rating (oil): 3800 rpm

Bore type: Tapered bore, taper 1:12

Lubrication: (D1); Oil groove and holes

Weight: 4 kg
