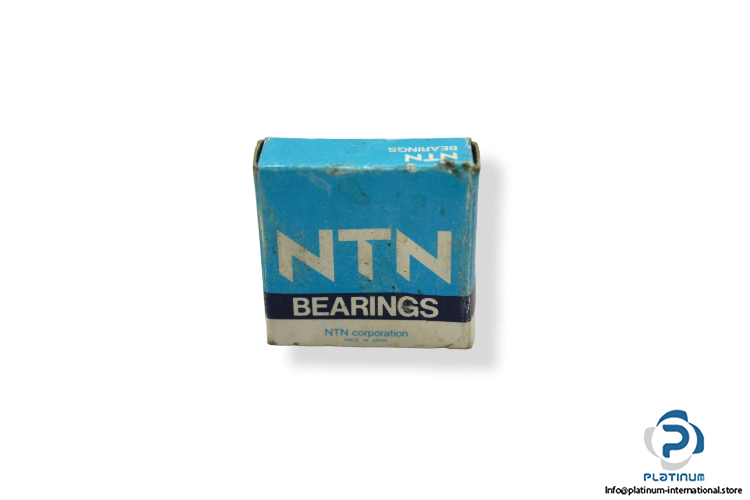

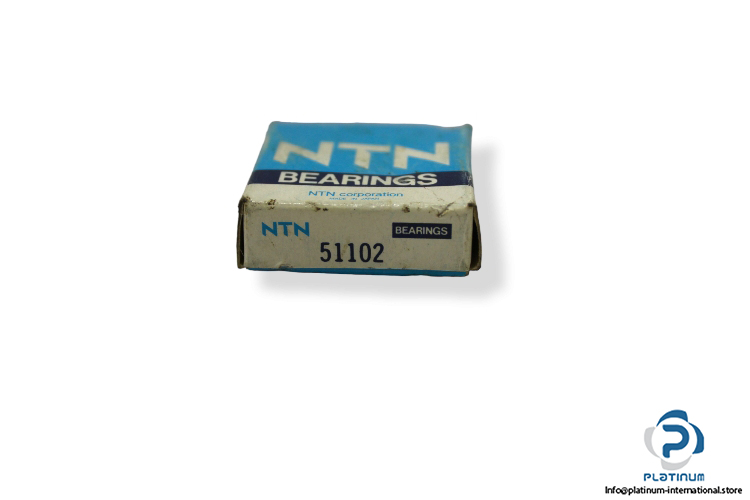

NTN 51102 Thrust Ball Bearing

Manufacturer: NTN

Type: Thrust ball bearings single direction

Model: 51102

Dimensions

Bore diameter d: 15 mm

Outer diameter D: 28 mm

Height T: 9 mm

Outside diameter shaft washer d₁: 28 mm

Inner diameter housing washer D₁: 16 mm

Minimum chamfer dimension r_{s min}: 0.3 mm

Basic load ratings:

Dynamic C_a: 10500 N

Static C_0a: 16800 N

Allowable speed:

Grease lubrication: 6200 rpm

Oil lubrication: 8800 rpm

Cage Material: Resin

Cage Type: Molded
