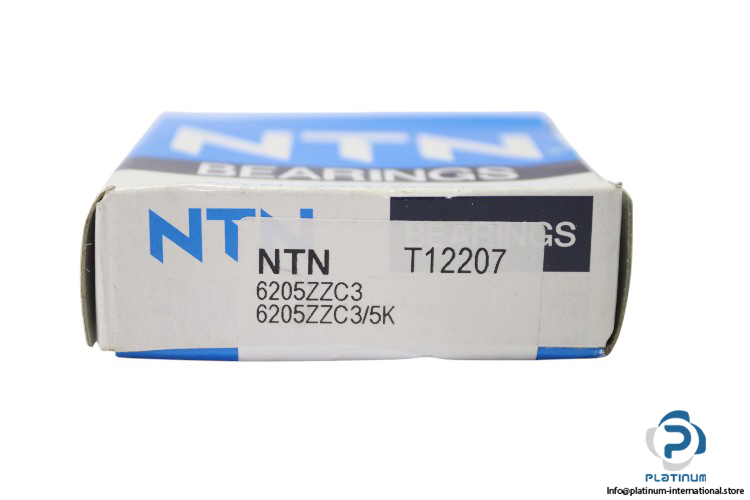

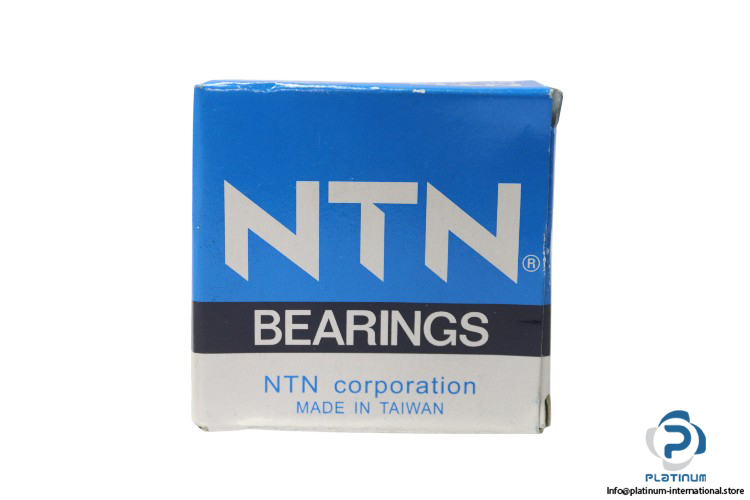

NTN 6205ZZC3/5K Deep Groove Ball Bearing
New
Available on request
Deep Groove Ball Bearing
NTN 6205ZZC3/5K Deep Groove Ball Bearing features a 25 mm bore, 52 mm outer diameter, and 15 mm width. With dynamic load rating up to 15.5 kN and grease lubrication limit speed of 13,000 tr/min, it is ideal for high-performance applications.15.525526205ZZC3/5KBallbearingbearingsboreDeepdiameterDynamicGrooveIndustrialkNLoadmmNTNOuterRatingShielded
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NTN 6205ZZC3/5K Deep Groove Ball Bearing
The NTN 6205ZZC3/5K Deep Groove Ball Bearing is engineered for high durability and efficiency in various industrial applications. It offers excellent load capacity, lubrication efficiency, and is shielded on both sides for added protection.
Manufacturer: NTN
Model: 6205ZZC3/5K
Type: Deep Groove Ball Bearing
| Bore Diameter (d) | 25 mm |
| Outer Diameter (D) | 52 mm |
| Width (B) | 15 mm |
| Dynamic Load Rating (Cr) | 15.5 kN |
| Static Load Rating (C0r) | 7.85 kN |
| Fatigue Load Rating | 0.55 kN |
| Grease Lubrication Limit Speed | 13,000 tr/min |
| Sealing | ZZ, Shielded on both sides |
| Pre Lubricant | 5K, Kyodo Yushi Multemp SRL |
| Clearance | C3 |
