NTN 6206 K C3 Deep Groove Ball Bearing
Used
In stock5 unitsReady to ship
Ball Bearing
Single row deep groove ball bearing, 30 mm inner diameter, 62 mm outer diameter, and 16 mm width. High-speed NTN 6206KC3 bearing with C3 clearance and pressed steel cage for reliable mechanical performance.BallbearingboreC3CageClearanceComponentsDeepGrooveHighIndustrialMechanicalNTNpressedRowSingleSpeedSteeltapered
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

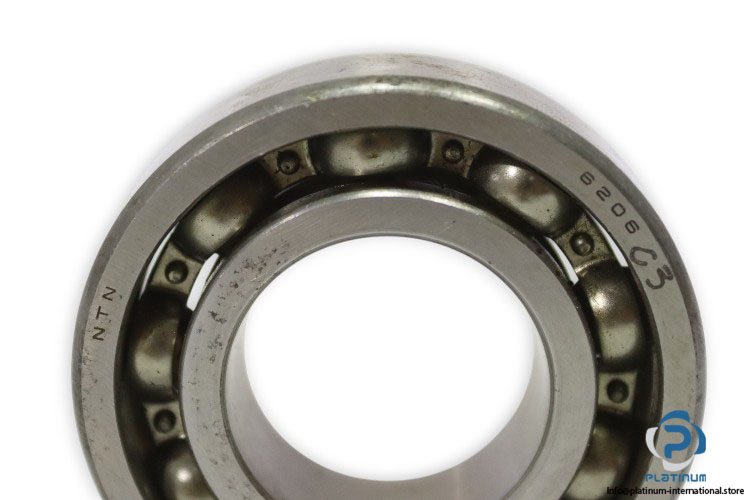

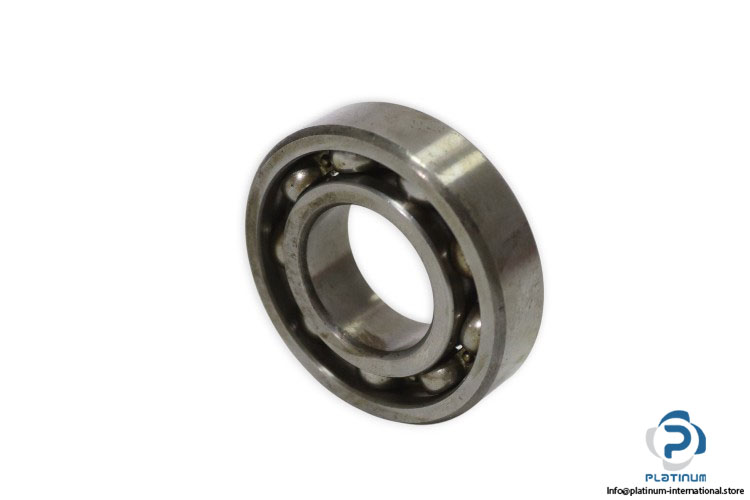

NTN 6206KC3 Single Row Deep Groove Ball Bearing
The NTN 6206KC3 is a precision-engineered single row deep groove ball bearing designed for high rotational speed, durability, and reduced friction in demanding mechanical applications.
Manufacturer: NTN
Type: Single Row Deep Groove Ball Bearing
Model: 6206KC3
| Internal Diameter (d) | 30 mm |
| Outer Diameter (D) | 62 mm |
| Width (B) | 16 mm |
| Dynamic Load | 20.5 kN |
| Static Load | 11.3 kN |
| Fatigue Limit Load | 0.51 kN |
| Reference Speed | 12000 tr/min |
| Mechanical Limit Speed | 18000 tr/min |
| Cage Material | Pressed Steel Cage |
| C3 | Radial Internal Clearance |
| Bore Type | K, Tapered Bore |
