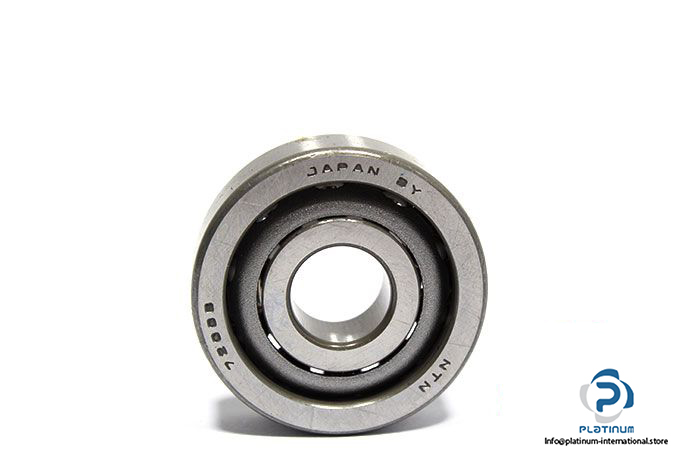

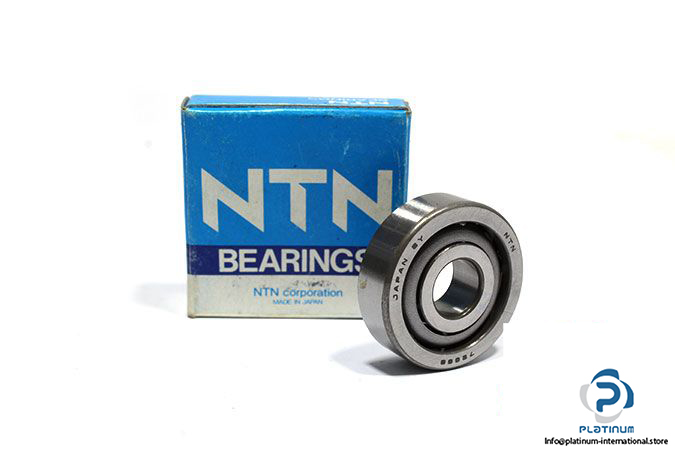

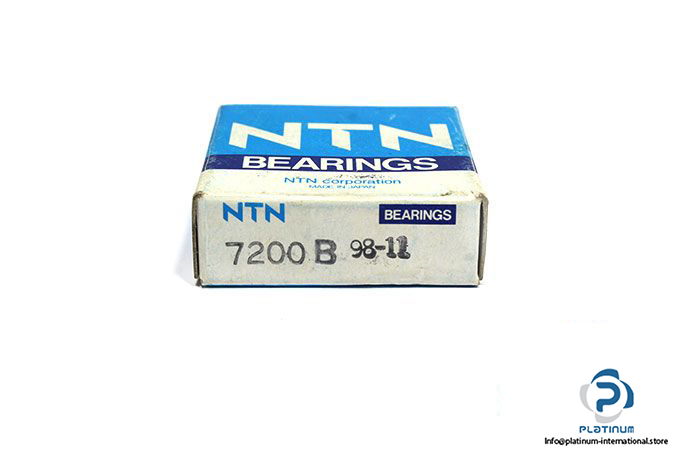

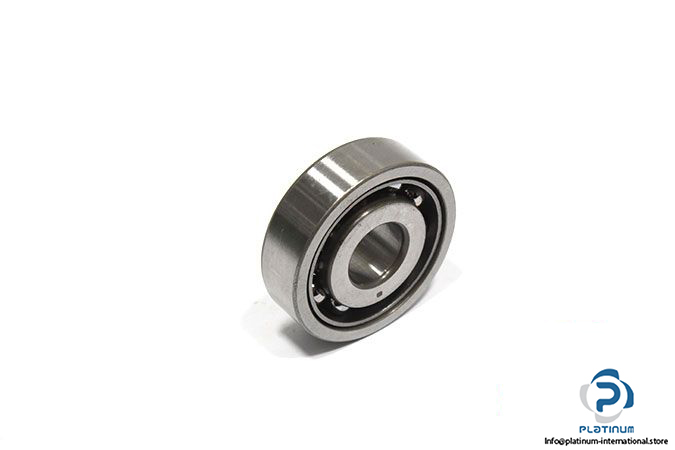

NTN 7200 B Angular Contact Ball Bearing

Manufacturer: NTN

Type: Angular contact Ball Bearing

Part No: 7200B

Bore Diameter: 10 mm

Outer diameter: 30 mm

Width: 9 mm

Chamfer r_min: 0.6 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 5 kN

Static C_0r: 2.5 kN

Limiting speed – Oil: 32000 rpm

Limiting speed – Grease: 24000 rpm

Cage: Steel

Weight: 0.35 kg
