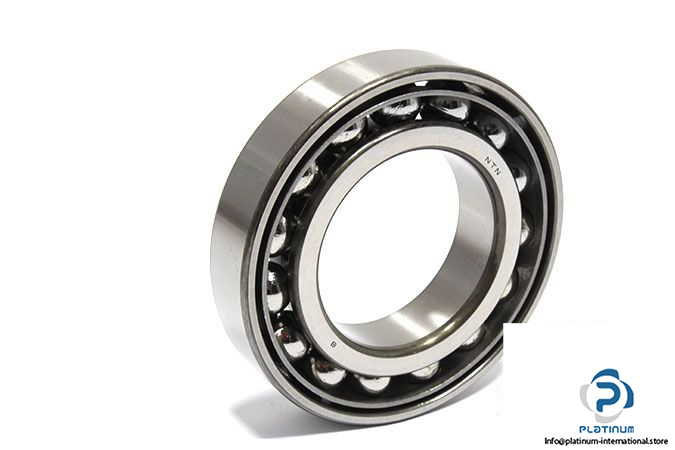

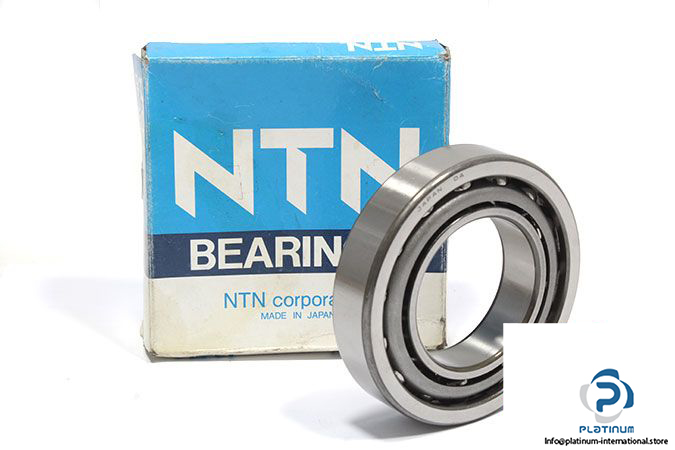

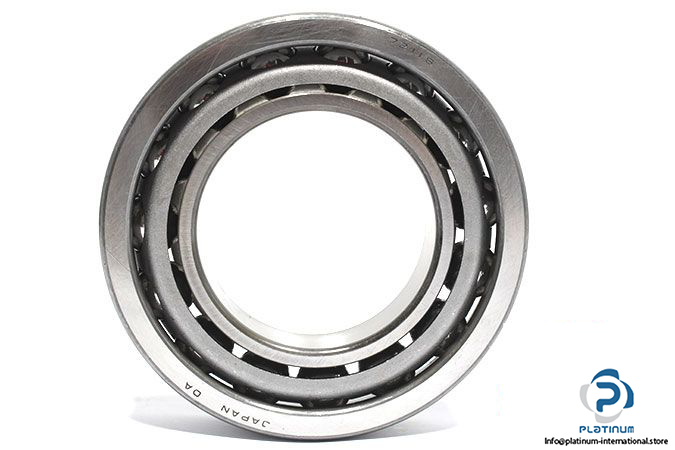

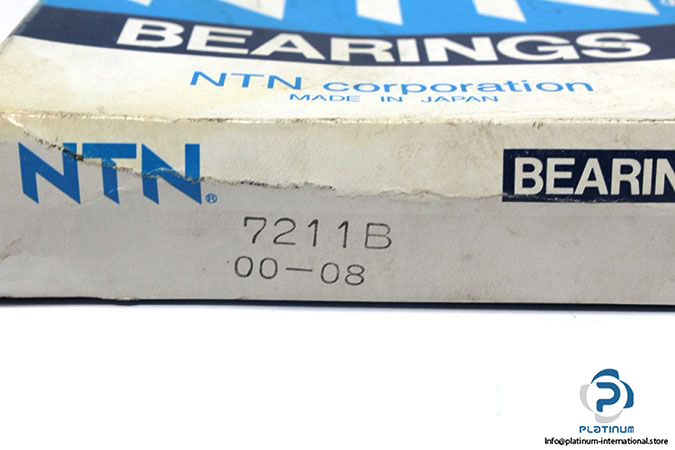

NTN 7211B Angular Contact Ball Bearing

Manufacturer: NTN ‎

Type: Angular contact Ball Bearing

Model: 7211B

Part No: 7211

Bore Diameter:  55 mm

Outer diameter: 100 mm

Width: 21 mm

Chamfer r_min: 1.5 mm

Contact Angle: 40°

Basic load ratings:

Dynamic C_r: 51,5 kN

Static C_0r: 36 kN

Fatigue load rating: 2,74 kN

Operating Temp.: -40 … 120 °C

Cage: Pressed Steel

Weight: 0.64 kg
