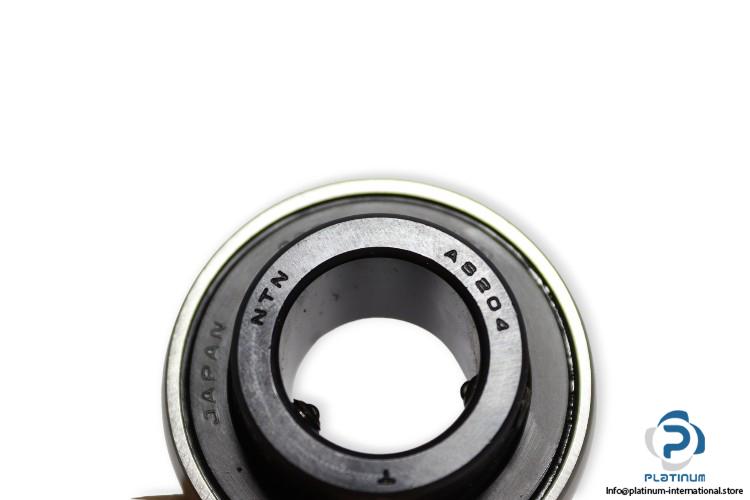

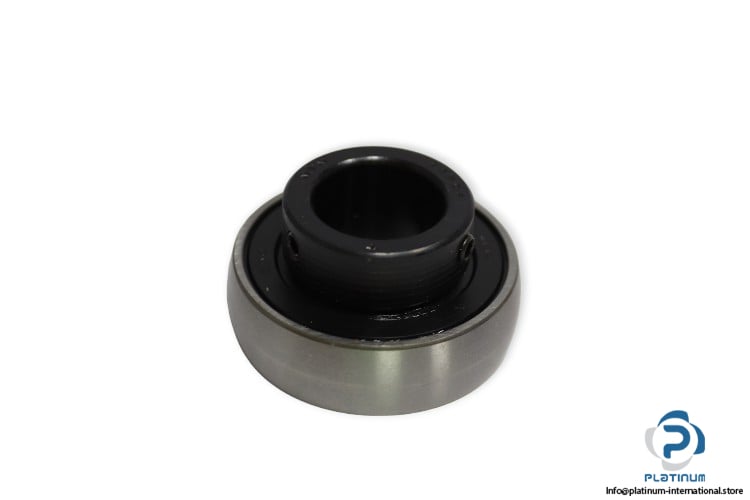

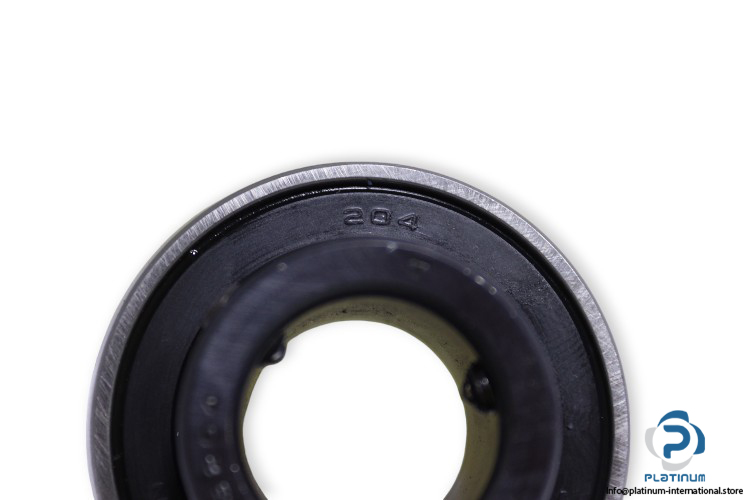

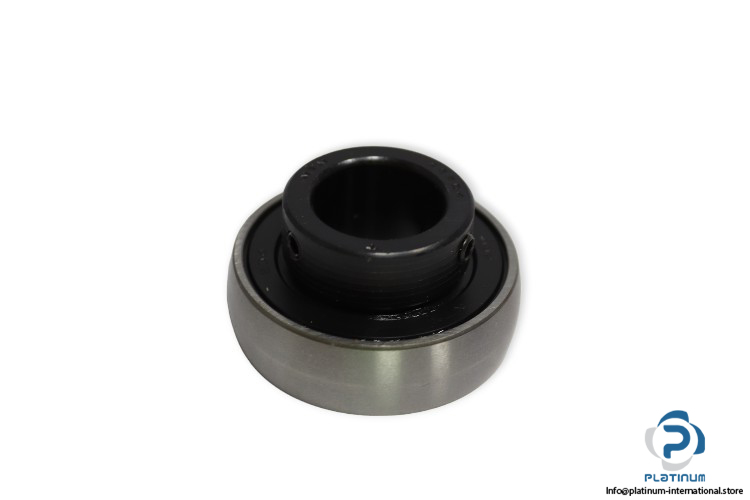

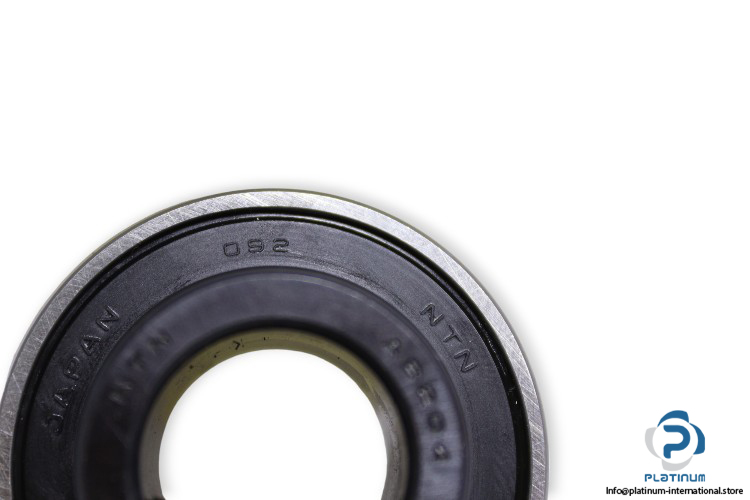

NTN AS204 Insert Ball Bearing

Manufacturer: NTN
Type: Insert Ball Bearing
Model: AS204
Basic Outer Ring: 204

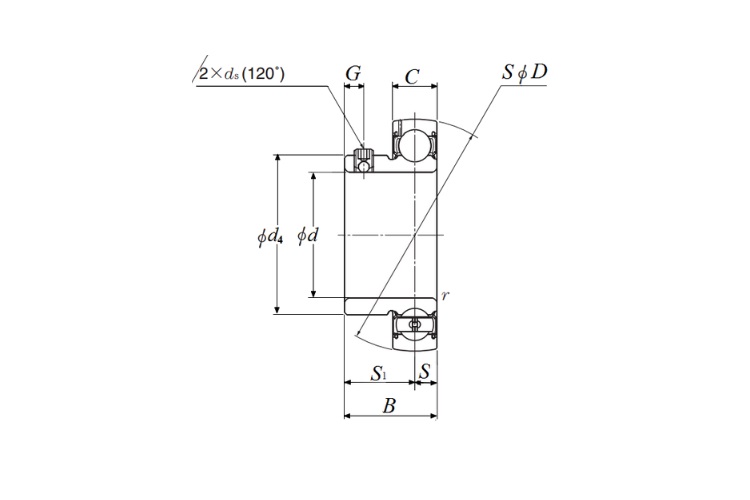

Dimensions
shaft diameter d: 20 mm
Outer diameter D: 47 mm
Width of inner ring B: 12 mm
Width of outer ring C: 12 mm
Set screw size: M5x0.8
Radius r: 2 mm
Basic load ratings:
Dynamic C: 12800 N
Static C₀: 6650 N
Limiting speed: 6700 rpm
Locking device: Set Screw
Seal Type: Contact
Enclosure: Double Sealed
