NTN KRV26LLH/3AS Stud Type Track Roller

Manufacturer: NTN

Type: Stud type track roller, Full-complement roller type, with seal

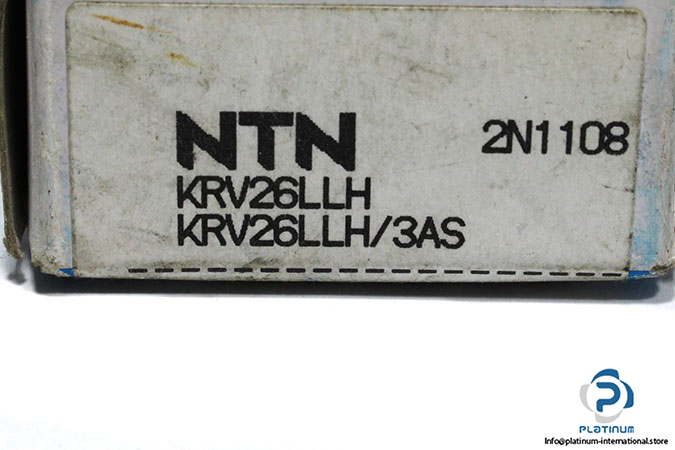

Model: KRV 26 LLH 3AS

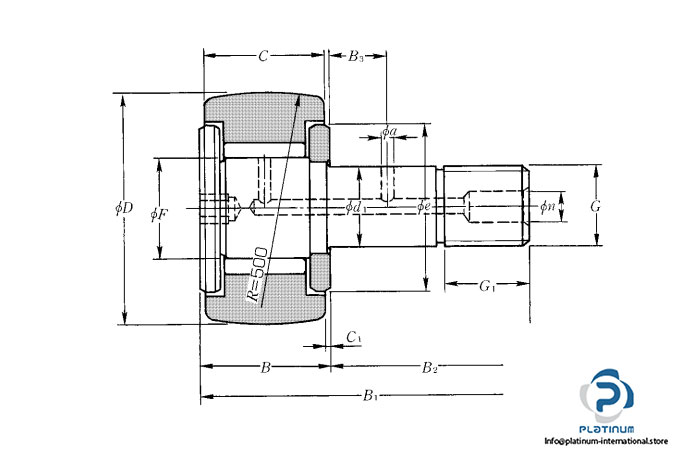

Dimensions

Outside diameter D: 26 mm

Fit diameter of roller stud d₁: 10 mm

Width B₁: 36 mm

Width outer ring C: 12 mm

Thread G: M10 X 1.25

Basic load ratings, radial:

Dynamic C_r: 8200 N

Static C_0r: 14000 N

Limiting speed grease lubrication: 8500 rpm

Limiting speed oil lubrication: 11000 rpm

Sealing: LL, seal on both sides
