NTN M-Aspfl 205 Pressed-Steel Oval Flange Unit

Name: NTN M-ASPFL 205 PRESSED-STEEL OVAL FLANGE UNIT
SKU: 1089923
Availability: LimitedAvailability

ntn-M-ASPFL-205-pressed-steel-oval-flange-unit-(new)-(carton)

ntn-M-ASPFL-205-pressed-steel-oval-flange-unit-(new)-(carton)-1

ntn-M-ASPFL-205-pressed-steel-oval-flange-unit-(new)-(carton)-2

ntn-M-ASPFL-205-pressed-steel-oval-flange-unit-(new)-(carton)-3

ntn-M-ASPFL-205-pressed-steel-oval-flange-unit-(new)-(carton)-4

ntn-M-ASPFL-205-pressed-steel-oval-flange-unit-(new)-(carton)-5

ntn-ASPFL-203-pressed-steel-oval-flange-unit-(new)-4

New

In stock5 unitsReady to ship

Flange Bearing Unit

NTN two-bolt pressed-steel oval flange unit with 25 mm bore, set screw locking, and high load capacity for industrial shaft support.

Manufacturer

NTN?

SKU

1089923

Category

Plummer Block Housing Units

Condition

New

205 AS205 bearing Bolt Flange Housing Industrial M-Aspfl NTN Oval PFL205 pressed screw Set Steel two Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

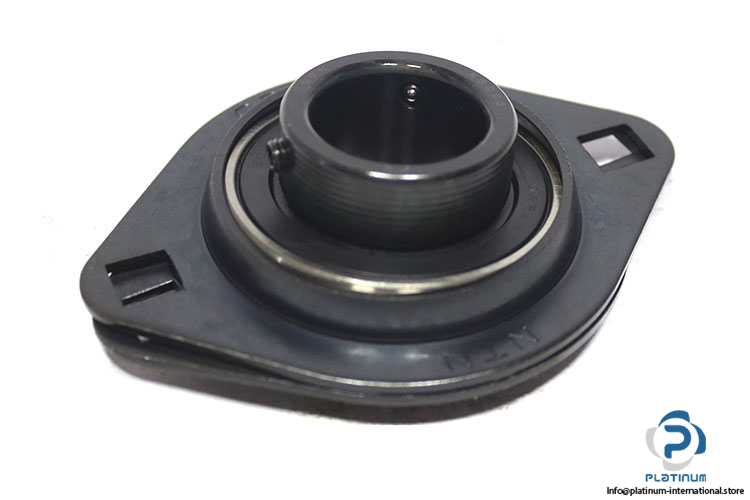

NTN M-ASPFL 205 Two-Bolt Flange Unit

The NTN M-ASPFL 205 is a two-bolt pressed-steel oval flange bearing unit designed to provide reliable shaft support and stable operation in industrial applications requiring compact mounting and precise alignment.

Manufacturer: NTN

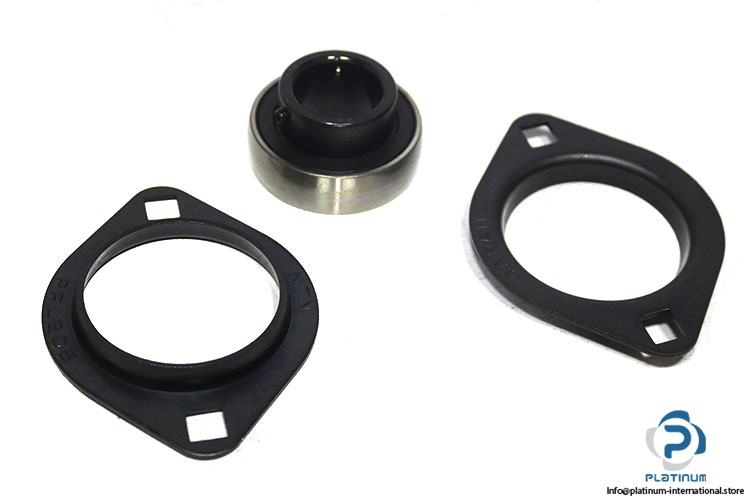

Type: Two Bolt Pressed-Steel Oval Flange Unit

Model: M-ASPFL 205

Bearing Number: AS205

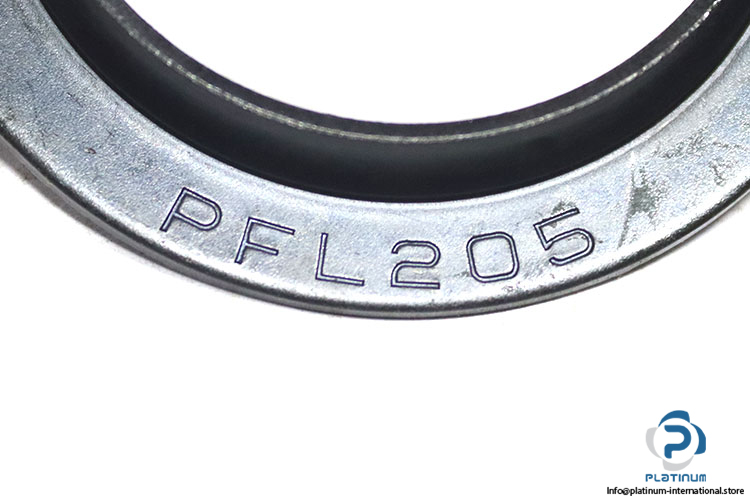

Housing Number: PFL205

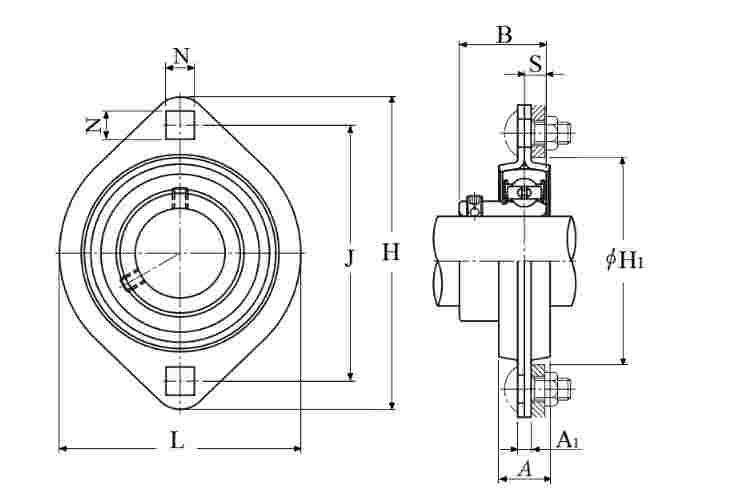

Bore Diameter	25 mm
H	95 mm
A	18 mm
B	27 mm
Outside Ring Width	12 mm
Inside Ring Width	12 mm
Static Load Rating	7850 N
Dynamic Load Rating	14000 N
Rotational Speed	5900 RPM
Bore Type	Cylindrical
Mounting Type	Two-Bolt Flange
Locking Device	Set Screw
Housing Material	Pressed Steel
