NTN M-ASPFL202 Pressed-Steel Oval Flange Unit

Name: NTN M-ASPFL202 PRESSED-STEEL OVAL FLANGE UNIT
SKU: 1090085
Price: 24.44 USD
Availability: InStock

ntn-M-ASPFL202-pressed-steel-oval-flange-unit-(new)-(carton)

ntn-M-ASPFL202-pressed-steel-oval-flange-unit-(new)-(carton)-1

ntn-M-ASPFL202-pressed-steel-oval-flange-unit-(new)-(carton)-2

ntn-M-ASPFL202-pressed-steel-oval-flange-unit-(new)-(carton)-3

ntn-M-ASPFL202-pressed-steel-oval-flange-unit-(new)-(carton)-4

ntn-ASPFL-203-pressed-steel-oval-flange-unit-(new)-4

New

In stock3 unitsReady to ship

24,44$

Flange Bearing Unit

NTN two-bolt oval flange bearing unit with 15 mm bore, pressed steel housing, set screw locking, and high load capacity for industrial applications.

Manufacturer

NTN?

SKU

1090085

Category

Plummer Block Housing Units

Condition

New

bearing Bolt Flange Industrial mounted NTN Oval pressed screw Set Steel two Unit

Massive Inventory

Global Shipping

Expert Support

Quality Guaranteed

NTN M-ASPFL202 Flange Bearing Unit

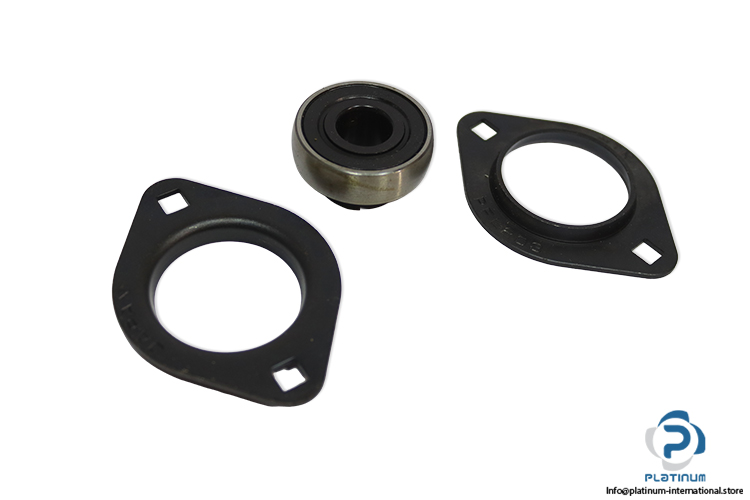

The NTN M-ASPFL202 is a two-bolt pressed-steel oval flange bearing unit designed for stable shaft support and reliable operation in industrial applications.

Manufacturer: NTN

Type: Two Bolt Pressed-Steel Oval Flange Unit

Model: M-ASPFL202

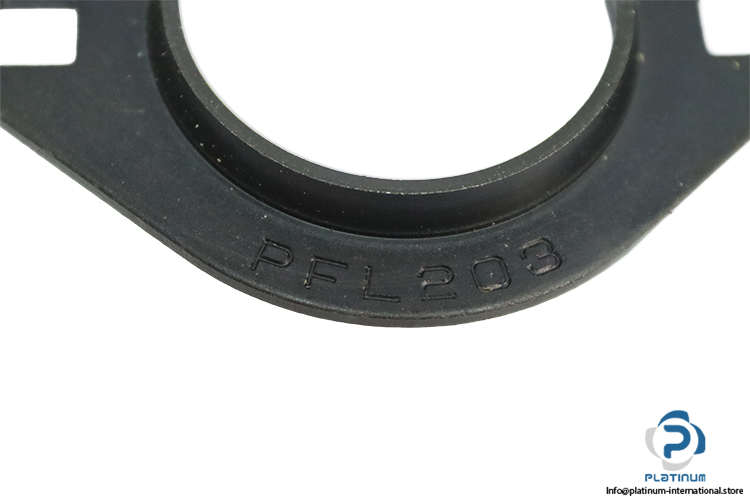

Housing No.: PFL203

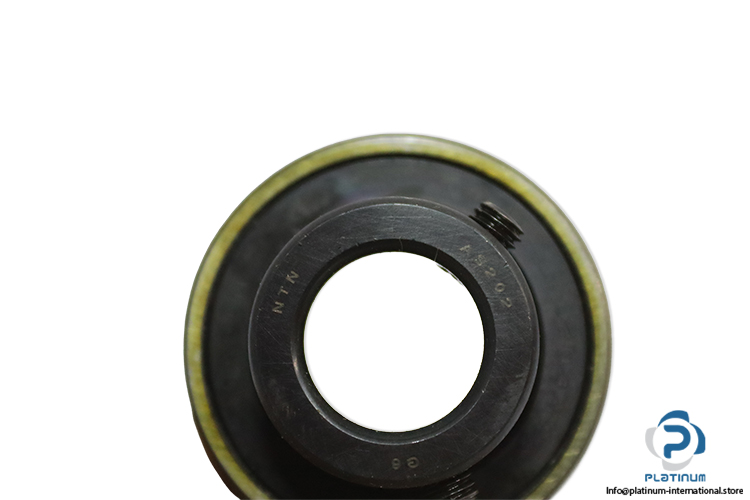

Bearing No.: AS202

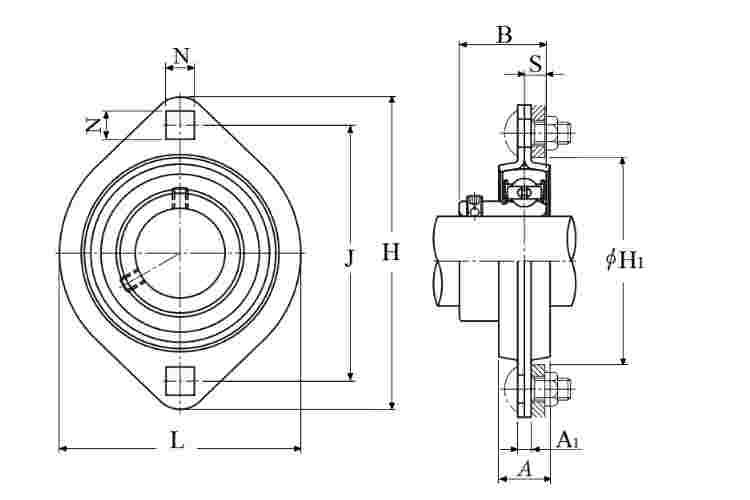

Bore Diameter	15 mm
H	81 mm
A	14 mm
B	22 mm
Outside Ring Width	16 mm
Inside Ring Width	16 mm
Static Load Rating	4600 N
Dynamic Load Rating	9600 N
Rotational Speed	10000 RPM
Bore Type	Cylindrical
Mounting Type	Two-Bolt Flange
Locking Device	Set Screw
End Type	Open
Housing Material	Pressed Steel
Operating Temperature	-40 to 120 °C
