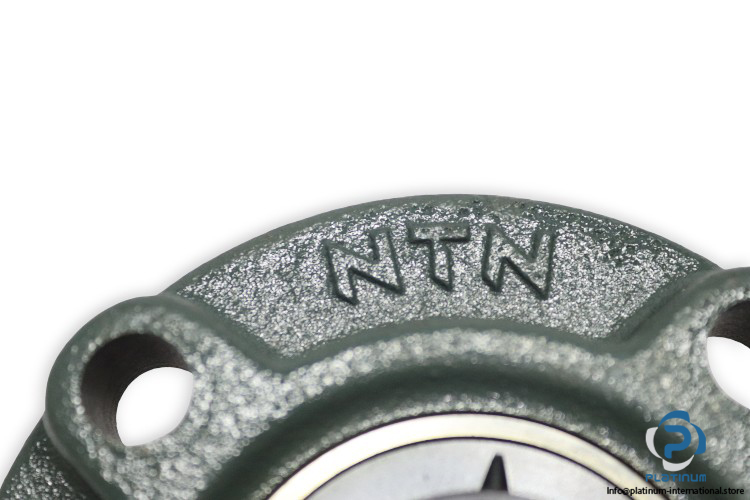

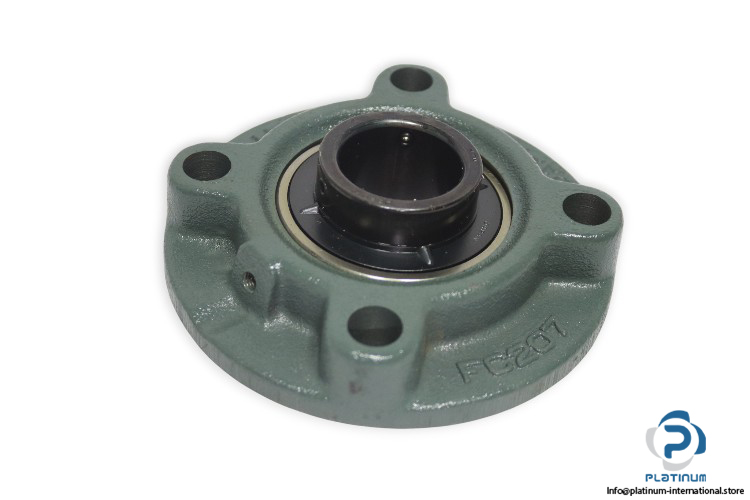

NTN M-UCFC207D1 Four Bolt Round Flanged Unit

In stock1 unitReady to ship

Four Bolt Bearing Unit

NTN four-bolt flange ball bearing unit with UC207 insert, cast iron housing, set screw locking, and high load capacity for industrial machinery.

Manufacturer
NTN?
SKU
1089945
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

NTN M-UCFC207D1 Four Bolt Ball Bearing Unit

The NTN M-UCFC207D1 is a four-bolt flange-mounted ball bearing unit designed to provide stable shaft support, high load capacity, and reliable operation in industrial applications.

Manufacturer: NTN

Type: Four Bolt Ball Bearing Unit

Model: M-UCFC207D1

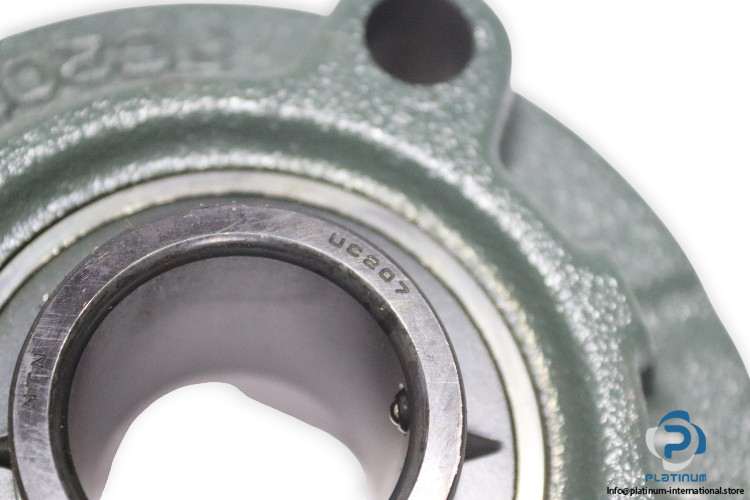

Bearing Number: UC207

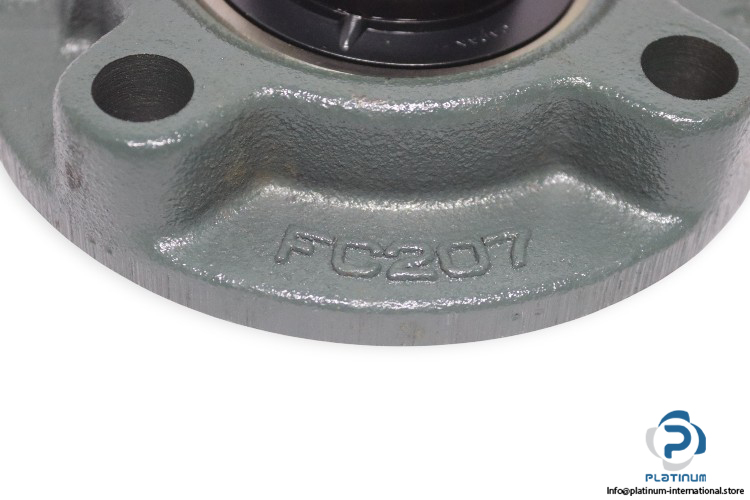

Housing Number: FC207

Bore Diameter (d)35 mm
Overall Length (L)135 mm
Overall Height (H2)52 mm
Width of Inner Ring (B)42.90 mm
Distance Between Attachment Bolts (J)110 mm
Attachment Bolt Hole Diameter (N)14 mm
Dynamic Load Rating (Cr)25,700 N
Static Load Rating (C0r)15,300 N
Maximum Rotational Speed4,200 rpm
Mounting TypeFour-Bolt Flange
Locking DeviceSet Screw
Housing MaterialCast Iron
