Hanger Unit

NTN hanger unit M-UCHB204D1 with UC204 insert bearing, 20 mm bore, cast iron housing, and set screw locking for industrial shaft support applications.

Manufacturer
NTN?
SKU
1089939
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

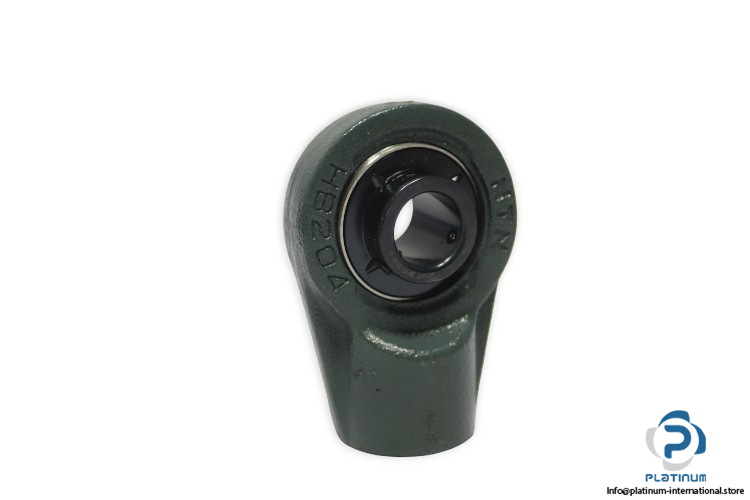

NTN M-UCHB204D1 Hanger Unit

The NTN M-UCHB204D1 hanger unit is a compact and robust bearing housing solution designed to support rotating shafts in industrial applications. It combines a UC204 insert bearing with a durable cast iron housing, ensuring stable operation and reliable load handling.

Manufacturer: NTN

Type: Hanger Unit

Model: M-UCHB204D1

Bearing Number: UC204

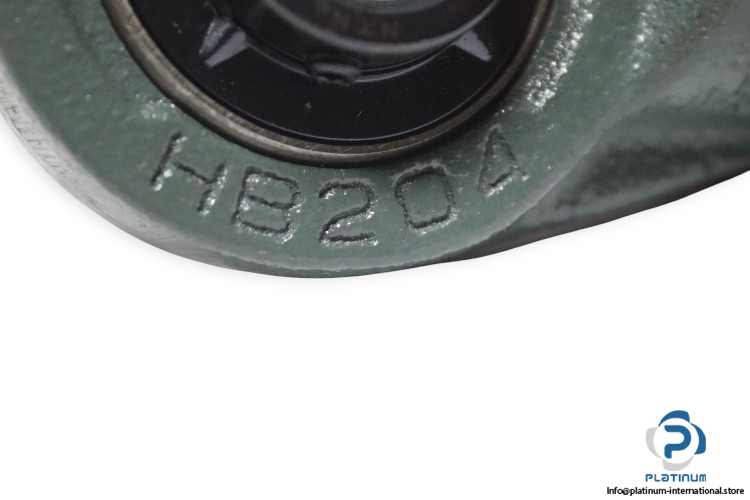

Housing Number: HB204

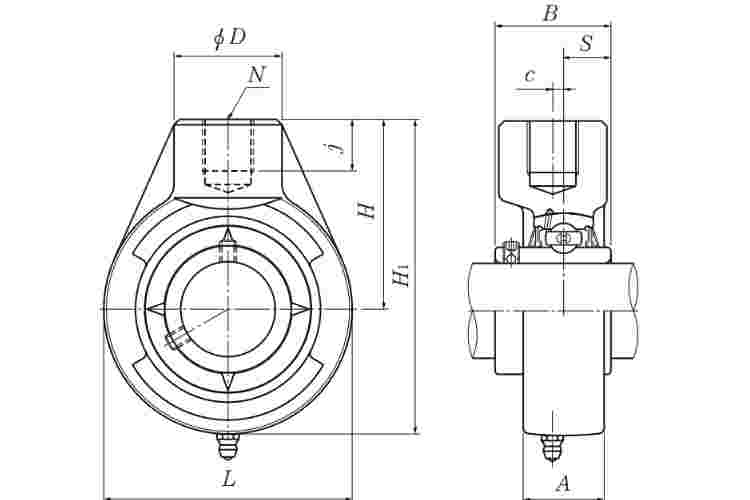

Bore Diameter (d)20 mm
Overall Length (L)64 mm
Overall Height (H1)96 mm
Width of Inner Ring (B)31 mm
Housing Height (H)64 mm
Mounting Holes Distance (j)19 mm
Housing Width (A)21 mm
Distance Front Side / Bearing Center (S)12.7 mm
Dynamic Load Rating (Cr)12,800 N
Static Load Rating (C0r)6,650 N
Maximum Rotational Speed6,700 RPM
Locking DeviceSet Screw
Housing MaterialCast Iron
