NTN M-UCP 203D1 Pillow Block Ball Bearing Unit

In stock4 unitsReady to ship

Pillow Block Bearing Unit

NTN M-UCP 203D1 pillow block bearing unit with UC203 insert, 17 mm bore, cast iron housing, and set screw locking for industrial shaft support.

Manufacturer
NTN?
SKU
1089926
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

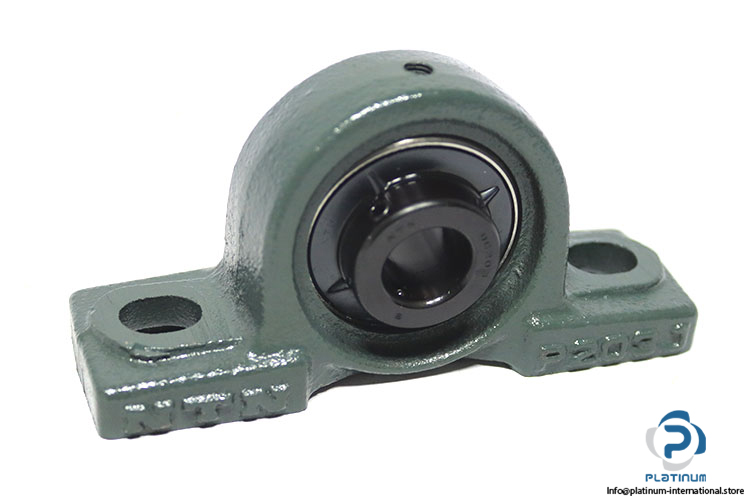

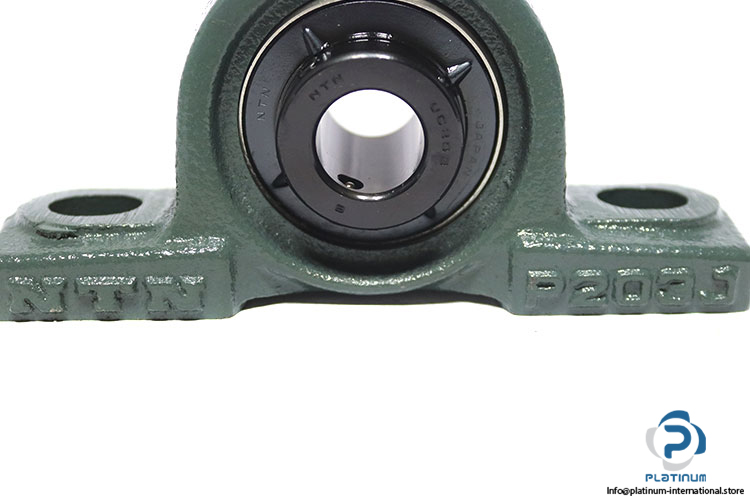

NTN M-UCP 203D1 Pillow Block Bearing Unit

The NTN M-UCP 203D1 is a pillow block ball bearing unit designed for stable shaft support and reliable operation in industrial applications. It combines a UC203 insert bearing with a P203J cast iron housing, providing durability, easy installation, and dependable load performance.

Manufacturer: NTN

Type: Pillow Block Ball Bearing Unit

Model: M-UCP 203D1

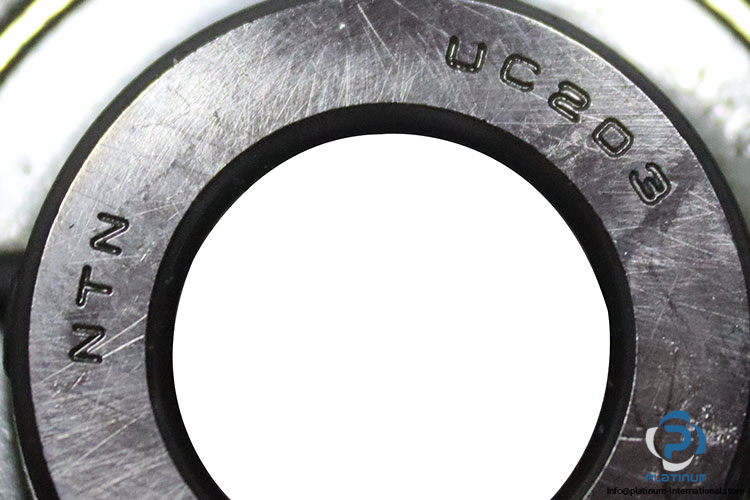

Bearing Number: UC203

Housing Number: P203J

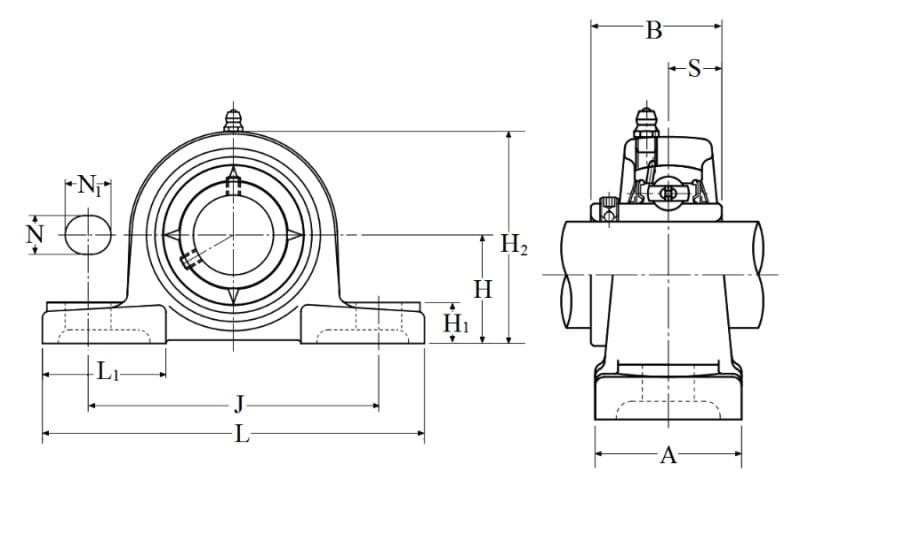

Bore Diameter (d)17 mm
Overall Length (L)127 mm
Overall Height (H2)62 mm
Width of Inner Ring (B)31 mm
Height of Spherical Seat Center (H)30.2 mm
Distance Between Attachment Bolts (J)95 mm
Diameter of Attachment Bolt Hole (N)13 mm
Length of Attachment Bolt Hole (N1)16 mm
Foot Height (H1)14 mm
Bolt SizeM10
Dynamic Load Rating (Cr)12,800 N
Static Load Rating (C0r)6,650 N
Locking DeviceSet Screw
Housing MaterialCast Iron
