NTN Ucfl 204 Flange Ball Bearing Unit
New
In stock1 unitReady to ship
NTN UCFL204 flange ball bearing unit with 20 mm bore, cast iron housing, set screw locking, and oval flange mounting for industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

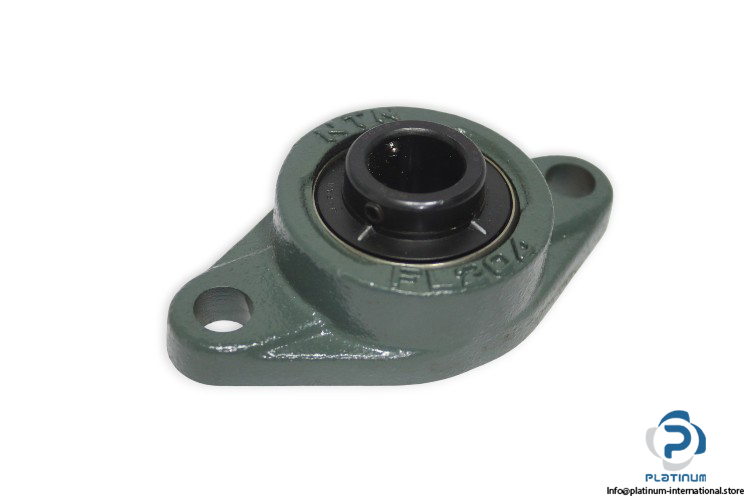

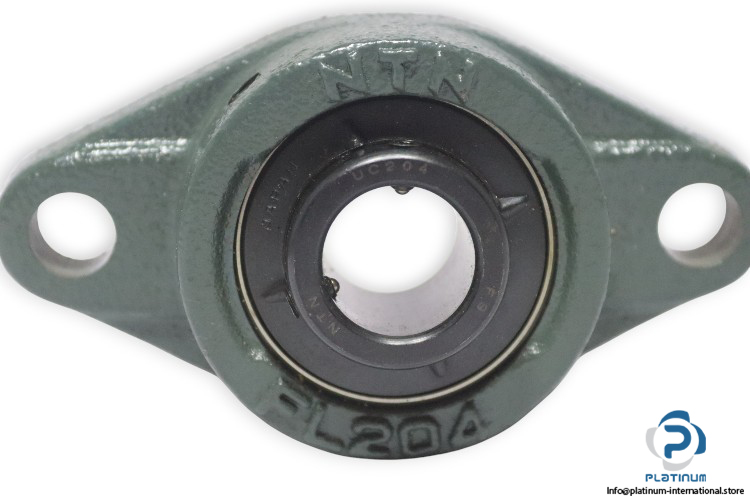

NTN UCFL204 Flange Ball Bearing Unit
The NTN UCFL204 is a robust flange-mounted bearing unit designed to provide reliable shaft support and smooth rotational performance in industrial applications. The unit combines a UC204 insert bearing with an FL204 cast iron housing for durability and stable operation.
Manufacturer: NTN
Type: Flange Ball Bearing Unit
Model: UCFL204
Bearing Number: UC204
Housing Number: FL204
| Bore Diameter (d) | 20 mm |
| Overall Length (L) | 60 mm |
| Overall Height (H) | 113 mm |
| Width of Inner Ring (B) | 31 mm |
| Distance Between Attachment Bolts (J) | 90 mm |
| Overall Unit Width (A0) | 33.3 mm |
| Dynamic Load Rating | 12,800 N |
| Static Load Rating | 6,650 N |
| Mounting | Oval Flange |
| Locking Device | Set Screw |
| Material | Cast Iron |
