NTN Ucfl 208 Oval Flange Ball Bearing Unit

Manufacturer: NTN
Type: Oval flange ball bearing unit
Model: UCFL 208
Bearing Number: UC208
Housing Number: FL208

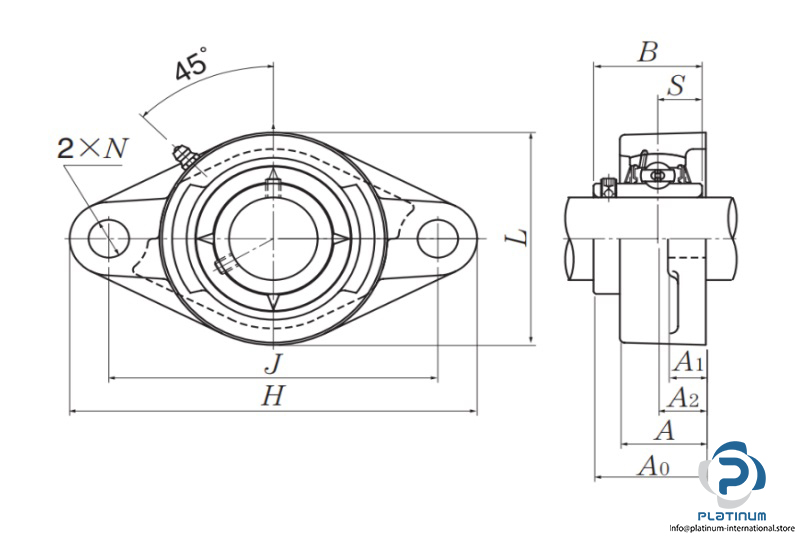

Dimensions
Bore Diameter d: 40 mm
Overall Length L: 100 mm
Overall Height H: 175 mm
Width of inner ring B: 49.2 mm
Distance Between Attachment Bolts J: 144 mm
Overall unit width A₀: 51.2 mm
Dynamic Load Rating: 29100 N
Static Load Rating: 17800 N
Maximum Rotational Speed: 3700 rpm
Mounting: Oval Flange
Housing Material: Cast Iron
Locking Device: Set Screw
