NTN UCT 205J Take UP Ball Bearing Unit
New
In stock1 unitReady to ship
Take-Up Bearing Unit
NTN UCT205J take-up ball bearing unit with 25 mm bore, UC205 insert bearing, cast iron housing, and set screw locking for industrial shaft support.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

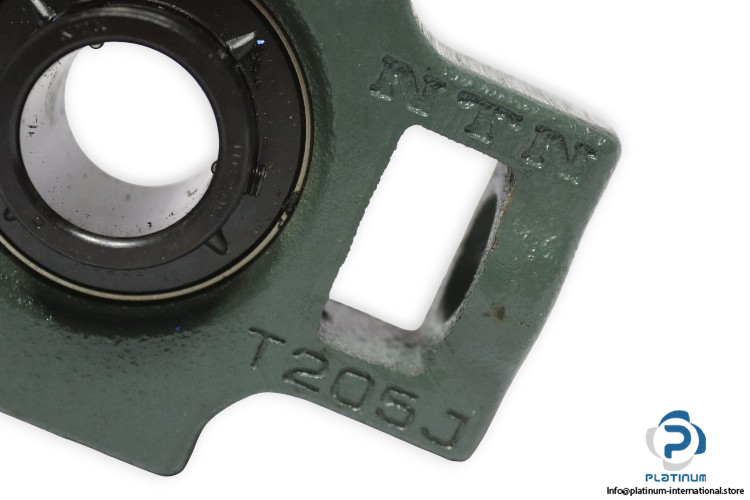

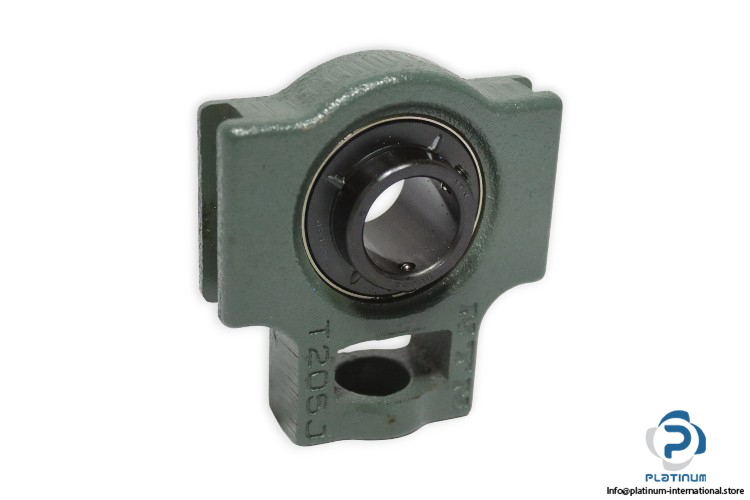

NTN UCT205J Take-Up Ball Bearing Unit
The NTN UCT205J is a take-up type ball bearing unit designed for reliable shaft support and easy position adjustment in industrial applications. The unit combines a UC205 insert bearing with a T205J cast iron housing, providing durability, stability, and secure shaft locking.
Manufacturer: NTN
Type: Take-Up Ball Bearing Unit
Model: UCT205J

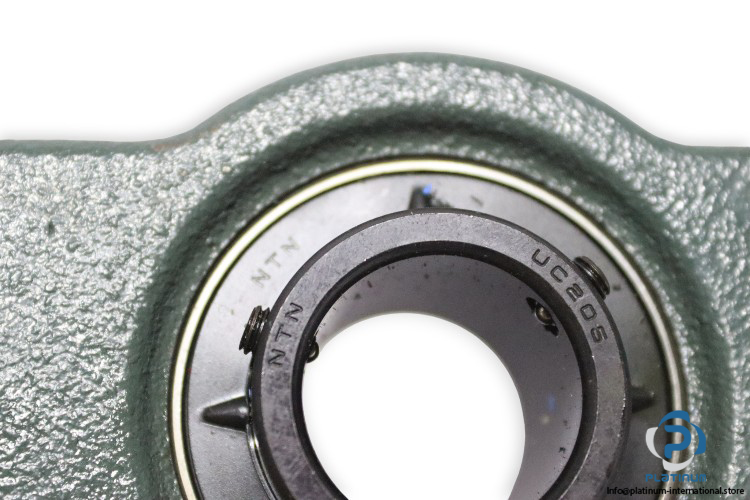

Bearing Number: UC205
Housing Number: T205J
| Shaft Diameter | 25 mm |
| Overall Width (B) | 34.1 mm |
| Overall Height (H) | 89 mm |
| Height Of Attachment End (H2) | 51 mm |
| Overall Length (L) | 97 mm |
| Housing Type | Take-Up (UCT Type) |
| Locking Device | Set Screw |
| Housing Material | Cast Iron |
