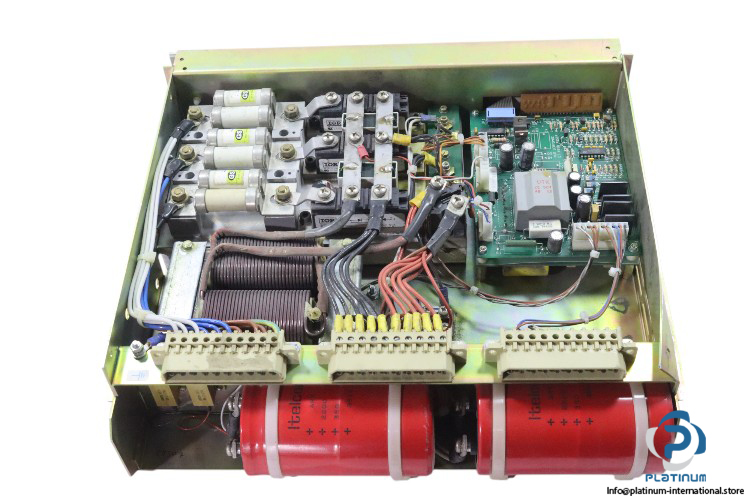

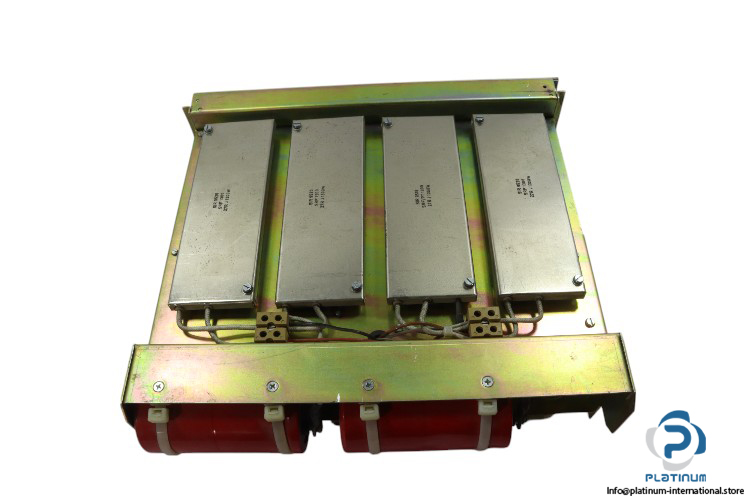

NUM 3PWS75L Power Supply Module
Used
In stock1 unitReady to ship
Power Supply Module
The NUM 3PWS75L is a compact and efficient industrial power supply module with 30 kW capacity, forced cooling, and 535 V DC output. Built for reliability in industrial automation environments.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
NUM 3PWS75L Power Supply Module
The NUM 3PWS75L Power Supply Module is a high-efficiency power solution designed for industrial control systems. It delivers stable power output, reliable thermal management, and compact design, making it ideal for demanding automation environments.
Manufacturer: NUM
Type: Power Supply Module
Model: 3PWS75L
Part No.: 95308073
| Power Supply Consumption | 30 kW |
| No-Load Dissipation | 20 W |
| Maximum Dissipation | 165 W |
| Input Voltage | 380 V AC, 50/60 Hz |
| DC Output Voltage | 535 V DC (for 380 V AC) |
| Cooling Type | Forced cooling with flow rate of 2 m/sec |
| Operating Temperature Range | 0 to +40 °C |
| Protection Class | IP10 |
| Module Dimensions (W x H x D) | 105 x 348 x 353 mm |
