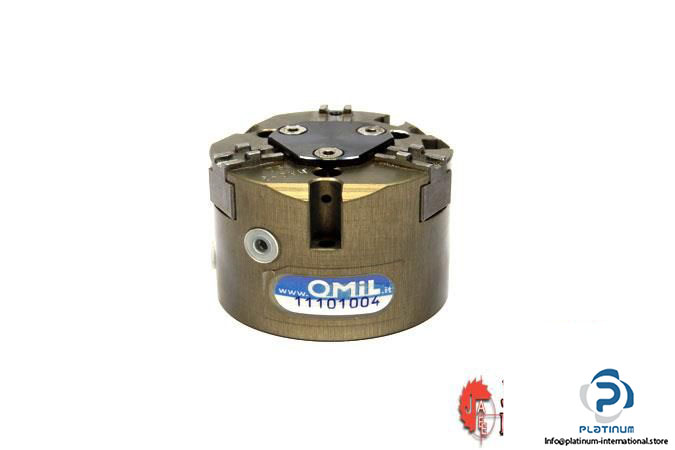

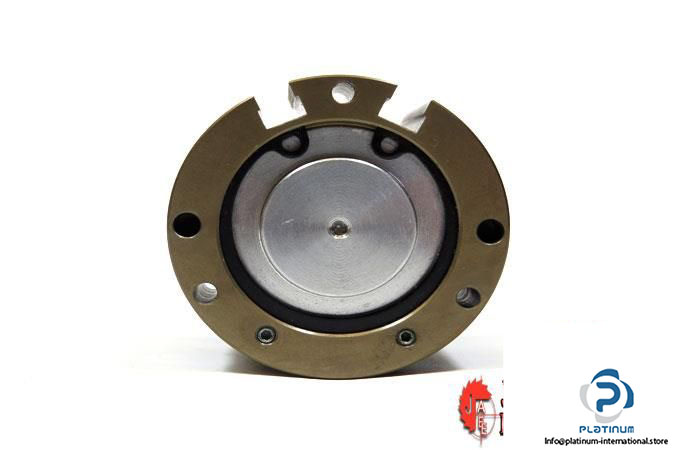

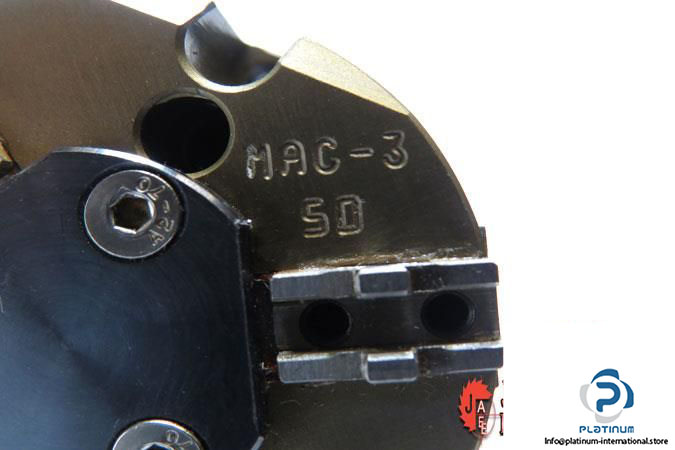

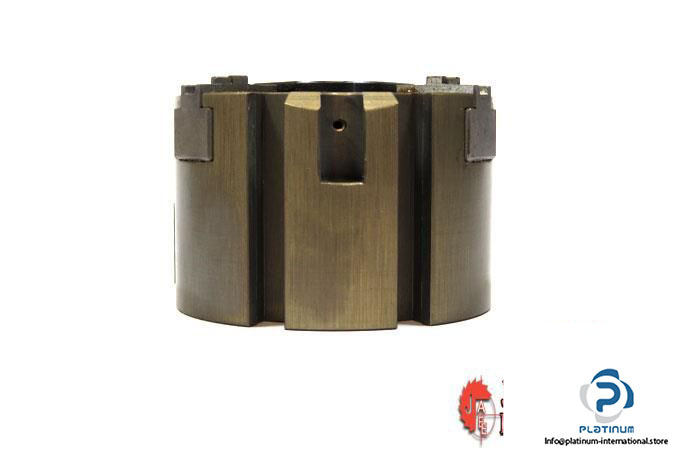

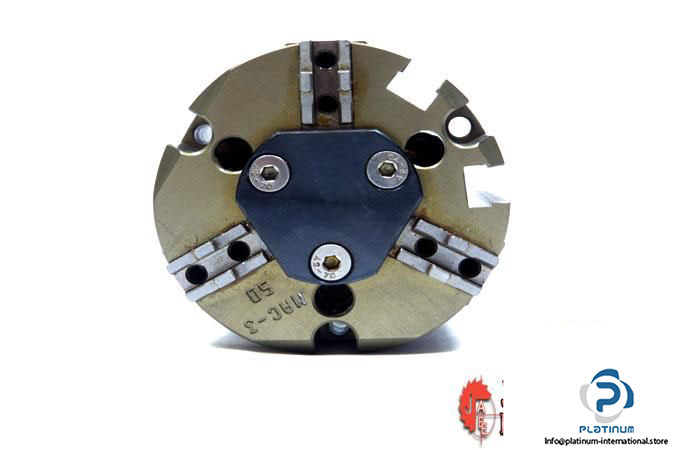

Omil MAC3-50 3-FINGER Self Centering Pneumatic Gripper

Manufacturer: OMIL

Type: 3-FINGER SELF CENTERING PNEUMATIC GRIPPER

Model: MAC3-50

Range of operating pressure: 2 … 8 Bar

Operating principle: wedge-hook kinematics

Gripping force at 6 bar: 270 N

Total strike: 9 mm

Strike for finger: 4.5 mm

Moment of inertia: 0.7 kgcm2

Recommended weight of part for transport: 1.35 kg

Gripping force of spring only with fixed elasticity (min.): 110 N

Gripping force of spring only with fixed elasticity (max.): 160 N

Gripping time (s) with spring only (pneumatic): 0.05 s

Actuation: Compressed air filtered (10 µm), dry or lubricated

Total air for double stroke consumed: 12 cm2

Max finger length / weight: 50/0.15

Opening time: Approx. 0.03

Closing time: Approx. 0.03

Housing material: High tensile hard-coated aluminum alloy, hard-anodized

Material of functional parts: Treated ground steel

Maintenance: No maintenance required for the first 1.5 million cycles

Ambient operating temperature: -10 … 90 °C

Enclosure rating: IP40

Mass: 0.22 Kg

Condition: New
