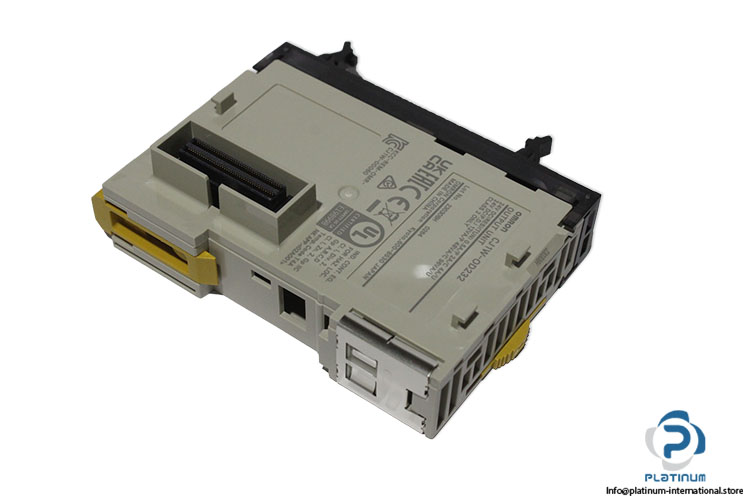

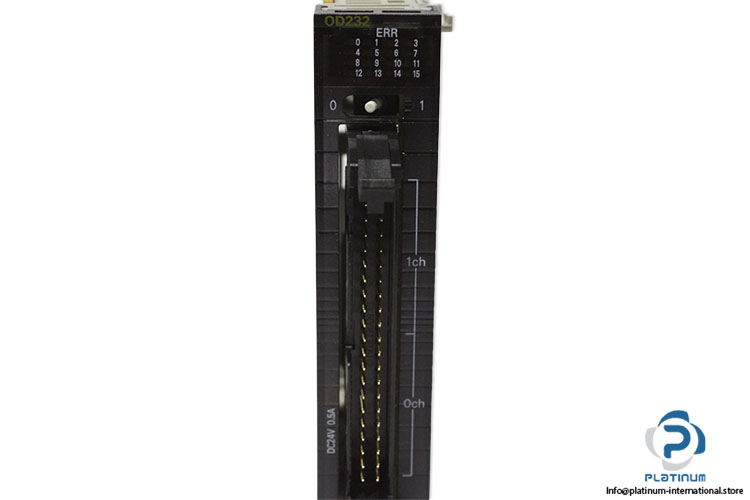

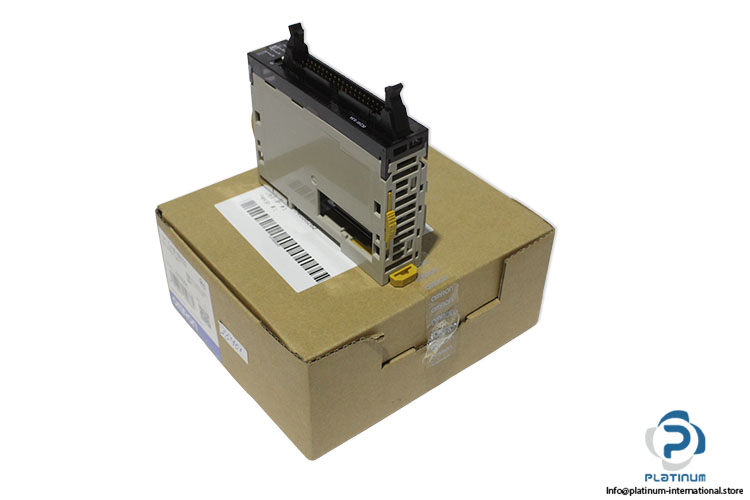

Omron CJ1W-OD232 32-POINT Transistor Output Unit
New
In stock2 unitsReady to ship
PLC Output Unit Omron CJ1W-OD232 32-point transistor output unit with PNP digital outputs, 24 VDC operation, and fast switching response for industrial PLC automation systems.
32AutomationCJCJ1WCJ1W-OD232ControlDigitalexpansionIndustrialModuModuleOD232OmronOutputPLCPNPPointSeriesSystemTransistorUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

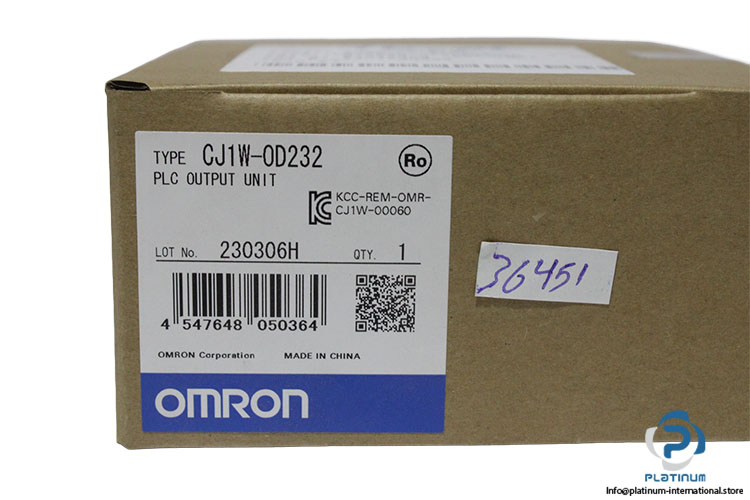

| Lot No. | 230306H |
| EAN. No. | 4 547648 050364 |
| Code | 0264 / KCC-REM-OMR-CJ1W-00060 |
| No. of digital outputs (DO) | 32 |
| Rated Voltage | 24 VDC |
| Operating Load Voltage Range | 20.4 … 26.4 VDC |
| Digital output type | PNP |
| Load Current | max. 0.5 A/point, 2.0 A/common, 4.0 A/Unit |
| Power | 12VA/point , 48VA/ common, 96VA/ Unit |
| Leakage Current | 0.1 mA max. |
| Residual Voltage | 1.5 V max. |
| OFF/ON delay | 2-8 ms |
| Internal Current Consumption | 5 VDC 150 mA max. |
| External Power Supply | 20.4 … 26.4 VDC, 70 mA min. |
| No. of Circuits | 32 (16 points/common, 2 circuits) |

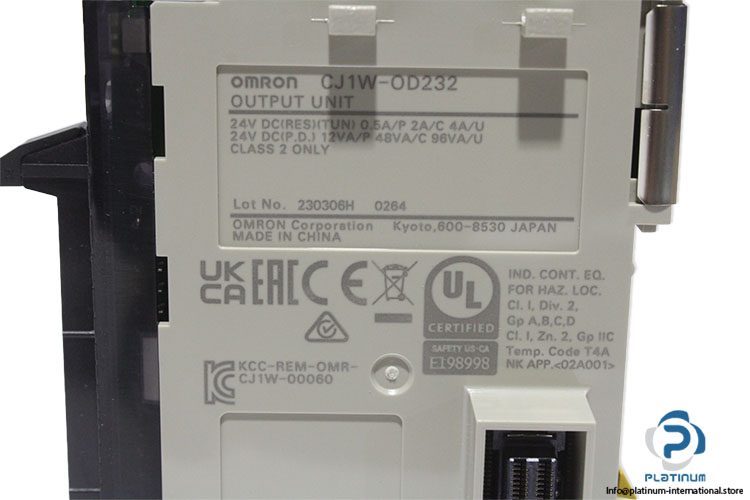

| Certificate | UKCA, CE, EAC, KC , UL |
| Dimensions | 90 X 20 X 83.6 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097672 |
| Weight | 0,13 |
