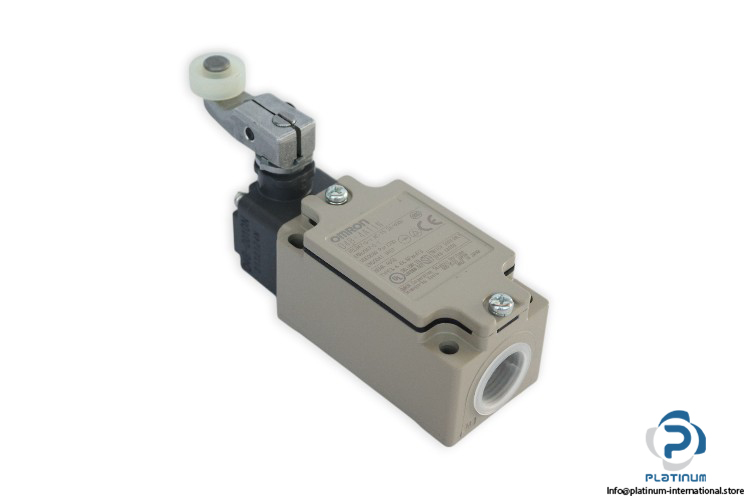

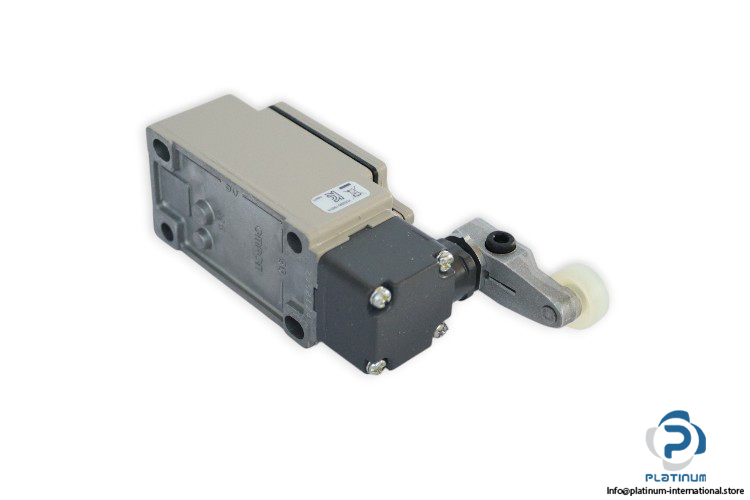

Omron D4B-4A11N Limit Switch

Manufacturer: OMRON
Type: Limit Switch
Model: D4B4A11N
Part No.: 20521Z4

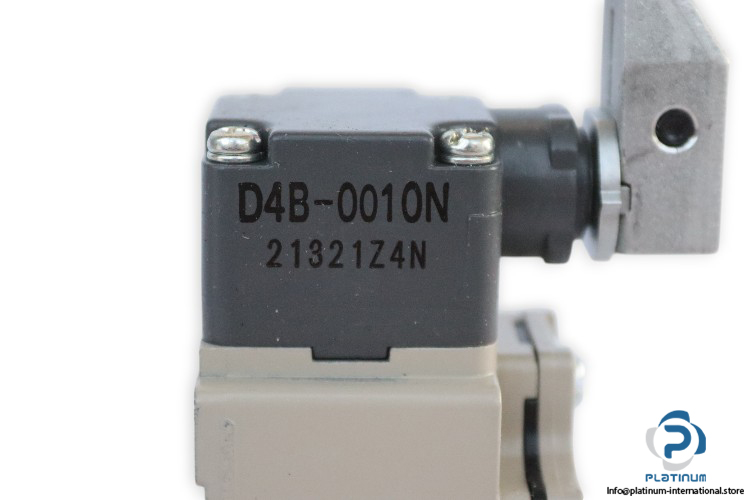

Actuator Model: D4B0010N
Actuator Part No.: 21321Z4N

Rated Operational Voltage AC-15: 400 V AC
Rated Operational Current AC-15: 2 A
Rated Insulation Voltage (Ui): 600 V
Rated Impulse Voltage (Uimp): 4 kV
Frequency: 50 … 60 Hz
Contact: 2 Normally Closed (NC)
Contact Operation: Slow-Action
Actuator Type: Roller Lever (Resin Roller)
Pretravel (PT): 21°
Roller Diameter: 17.5 mm
Material: Metal
Protection Class: IP67
Temperature: -40 … 80 °C
Dimensions: 99.5 x 40 x 43 mm
