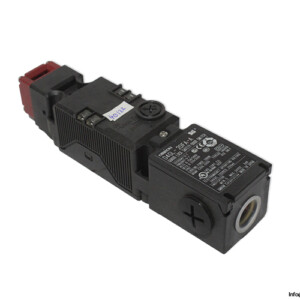

Omron D4GL-2DFA-A Guard Lock Safety-Door Switch
New
In stock1 unitReady to ship
149,99$
Guard Lock Safety-Door Switch The OMRON D4GL-2DFA-A is an IP67 guard lock safety-door switch with 1000 N locking force, designed for reliable industrial machine safety applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 27Y07Z |
| Series | D4GL |
| Rated Operating Voltage | 240 V AC / 250 V DC |
| Current | 0.75 / 0.27 A |

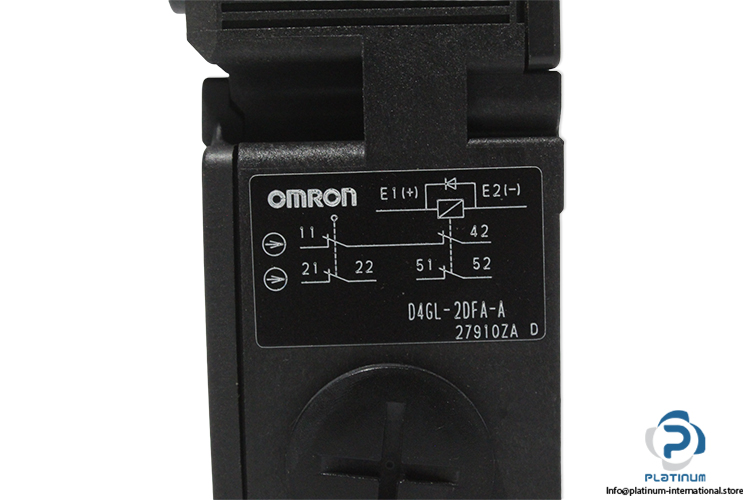

| Contact | 4 Normally Closed (NC) (Slow-Action) |
| Locking Force | 1000 N |
| Electromagnet Operating Voltage | 24 V DC, 200 mA |
| Indicator | 5 … 24 V DC, 3 mA |
| Head Mounting Direction No, | 4 Mounting Directions |
| Conduit Outlet | G1/2 |
| Material | Plastic |
| Protection Class | IP67 |
| Ambient Temperature | -10 … 55 °C |
| Dimensions | 187 x 43 x 47 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103940 |
| Weight | 0,44 |
