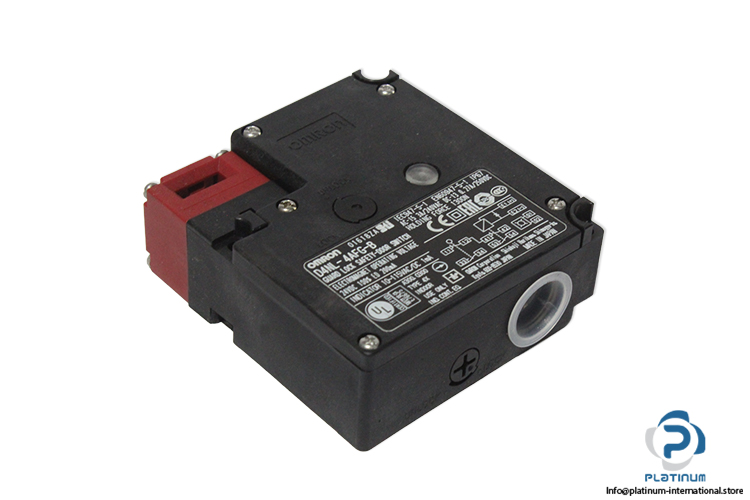

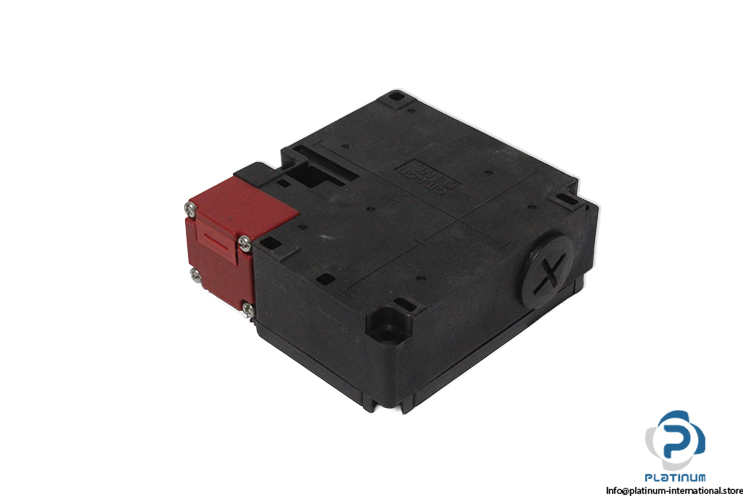

Omron D4NL-4AFG-B Guard Lock Safety Door Switch
New
In stock1 unitReady to ship
59,99$
Guard Lock Safety Door Switch OMRON D4NL-4AFG-B guard lock safety door switch with 24 V DC solenoid release, 1300 N locking force, and IP67 protection for industrial safety applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 03408Z |
| Series | D4NL |
| Rated Operating Voltage | 24 V DC |
| Current Consumption | 200 mA |
| Door Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Lock Monitor Contact | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Contact Ratings | AC-15: 240 V, 3 A / DC-13: 250 V, 0.27 A |
| Indicator | 10 … 115 V AC/DC (Orange LED Indicator) |
| Door Lock and Release | Mechanical Lock/24 V DC Solenoid Release |
| Locking Force | 1300 N |
| Head Mounting Direction | Four Mounting Directions Possible |
| Release Key Type | Standard (Resin) |
| Release Key Position | Bottom |
| Conduit Outlet | M20 |
| Material | Plastic |
| Protection Class | IP67 |
| Ambient Temperature | -10 … 55 °C |
| Dimensions | 95 x 88.5 x 35.5 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103945 |
| Weight | 0,42 |
