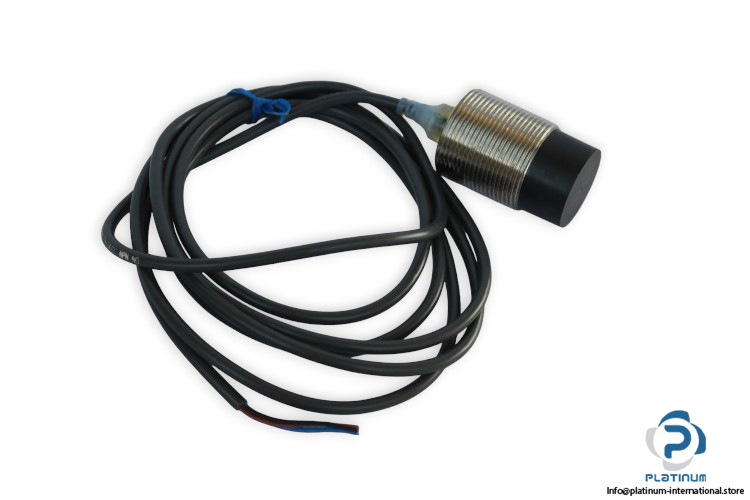

Omron E2A-M30KN20-WP-C1 Inductive Proximity Sensor

Manufacturer: OMRON
Type: Inductive Proximity Sensor
Model: E2AM30KN20WPC1
Part No.: 09110M

Series: E2A
Size: M30
Sensing Range: 20 mm
Detectable Object: Ferrous Metal 45 × 45 × 1 mm
Supply Voltage (Us): 12 … 24 V DC
Current Consumption: 10 mA
Contact: NPN Normally Open (NO)
Output Load Current: 200 mA
Electrical Connection: PVC Cable, 3-Wiers, 2 m
Material: Brass-Nickel Plated
Sensor Length, Diameter: 64.5, 30 mm
Protection Class: IP67
Ambient Temperature: -40 … 70 °C
