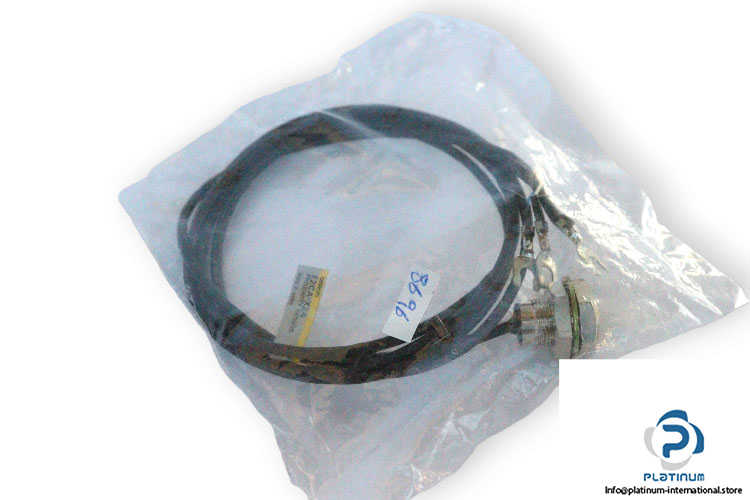

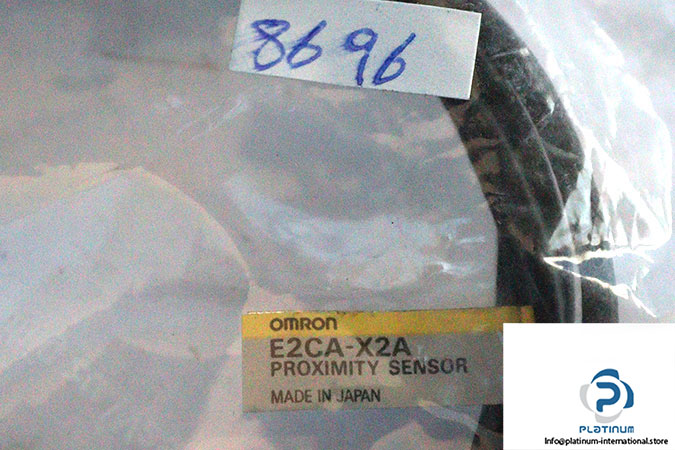

Omron E2CA-X2A Inductive Proximity Sensor

Manufacturer: Omron
Type: Inductive Proximity Sensor
Model: E2CAX2A

Size: M12
Nominal Sensing: 0.4 … 2 mm
Output Range: 4 … 20 mA (Analog Output)
Response Frequency: 10 kHz
Detecting Distance Sensitivity: Adjustable
Standard Target Size: 12 X 12 X 1 mm
Cable Length: 3 m
Cable Connection: 3 Wires
Control Type: Transistor
Control Voltage: 40 V DC
Control Current: 100 mA
Required Amplifier: E2CA-AL4D/ E2CA-AN4D
Operating Temperature: -25 … 70 °C
Degree of protection: IP67
Body Dimensions: M12 X 18 mm
