Omron E2S-Q23 Inductive Sensor
New
In stock1 unitReady to ship

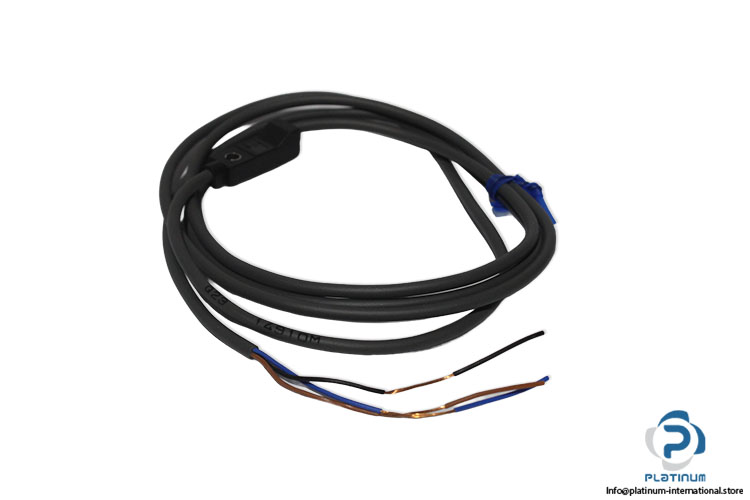

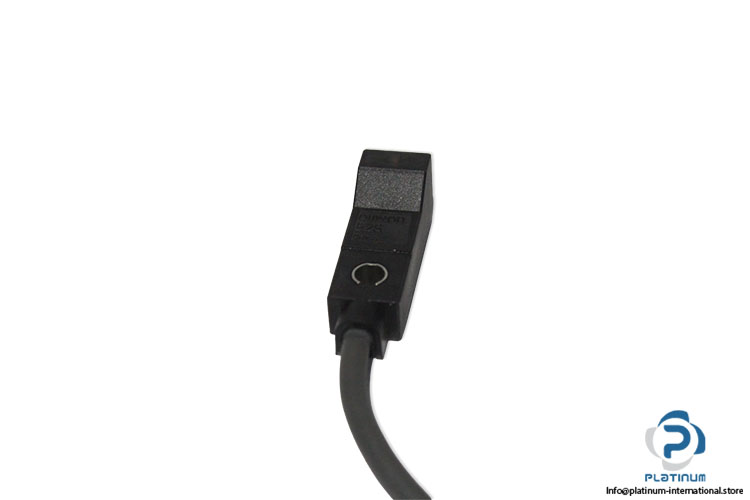

Inductive Proximity Sensor OMRON E2S-Q23 inductive proximity sensor with a 2.5mm sensing range, NPN normally open output, and IP67 protection for reliable industrial metal detection.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Series | E2S |
| Ref No | 14910M, 4 536854 841767 |
| Sensing direction | End face sensing |
| Size and sensing distance | 8x8mm,2.5mm(iron) |
| Electrical Design | NPN |
| Switching Output | Normally open |
| Sensing distance | 2.5mm |
| Setting distance | 0 to 1.9mm |
| Differential travel | 10% max.of sensing distance |
| Sensing object | Ferrous metal (refer toEngineeringDatafornon--ferrousmetal) |
| Standard sensing object | Iron,15x15x1mm |
| Supply voltage | 12to24VDC |
| Degree of protection | IEC60529, IP67 |
| Connection method | Pre--wired(standard length:1m) |
| Circuit protection | Reverse polarity connection and surge absorber |
| Ambient temperature Operating | -25 to 70C |
| Material Case | Polyallylate resin. |
| Stock key | CON003 |
| Condition | New |
| SKU | 1100899 |
| Weight | 0,03 |
