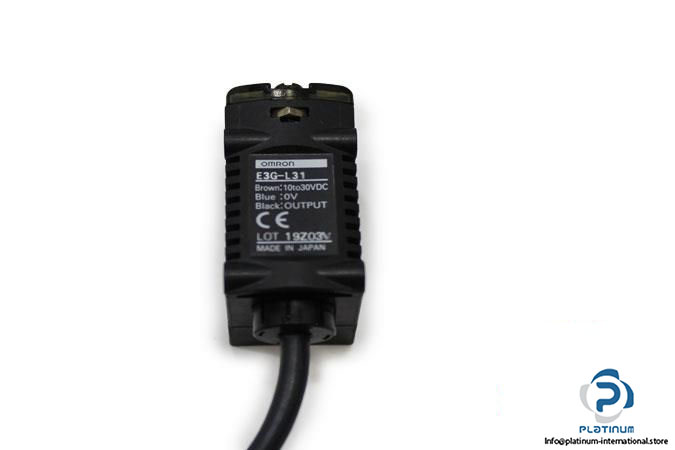

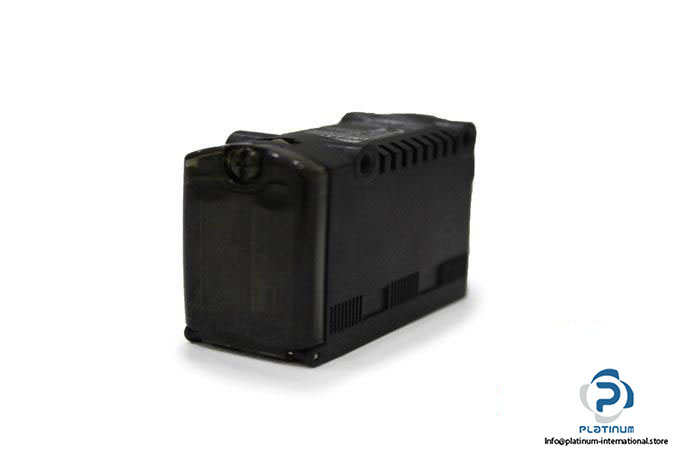

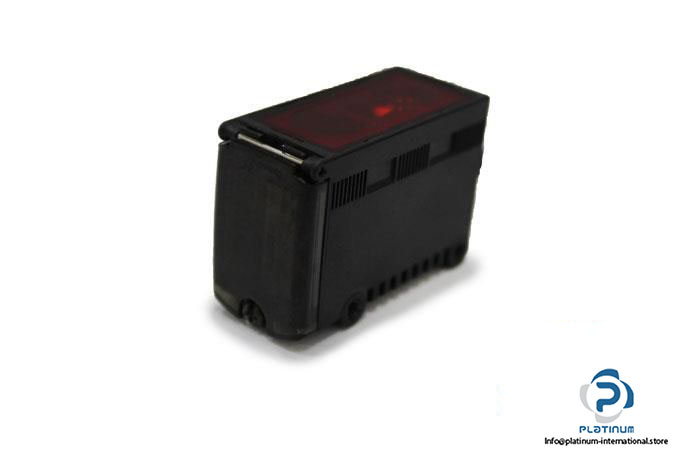

Omron E3G-L31 Photoelectric Switch Sensor

Manufacturer: OMRON

Type: PHOTOELECTRIC SWITCH SENSOR

Model: E3G-L31

Sensing Range: 50 … 200 mm

Power Supply Voltage: 10 … 30 VDC

Housing Material: Stainless steel and PBT

Ambient Temperature:  -30 … 70 °C

Enclosure Rating: IP67

Electrical Design: NPN

Response Time: 3 ms max.

Connection Method: Pre-wired

Indicators: Operation indicator (orange), Distance indicator (green: 8 levels), Threshold indicator (red)

Sensing Method: Diffuse-Reflective

Switching Mode: L/D

Dimension: 40 X 18.4 X 29 mm

Weight: 64 g
