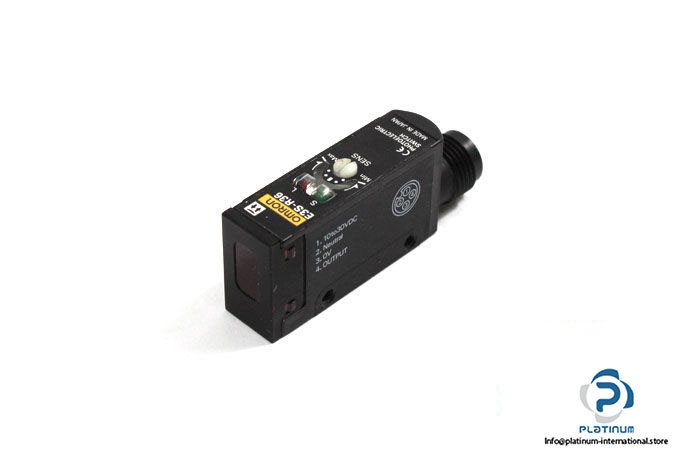

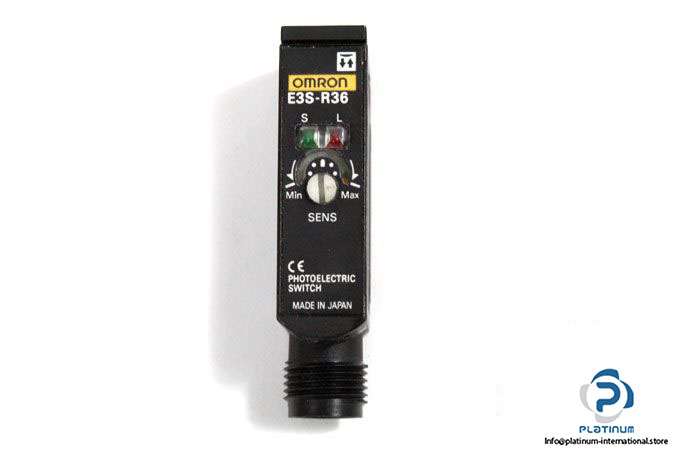

Omron E3S-R36 Photoelectric Retro-Reflective Sensor

Manufacturer: OMRON

Type: PHOTOELECTRIC RETRO-REFLECTIVE SENSOR

Model: E3S-R36

Sensing range: 100 … 1000 mm

Response time: 1 ms

Operating Voltage: 10 … 30 V DC

Current consumption: 30 mA

Electrical design: PNP

Switching output: Programmable Light on/Dark on

Type of light: Red LED, 700 nm

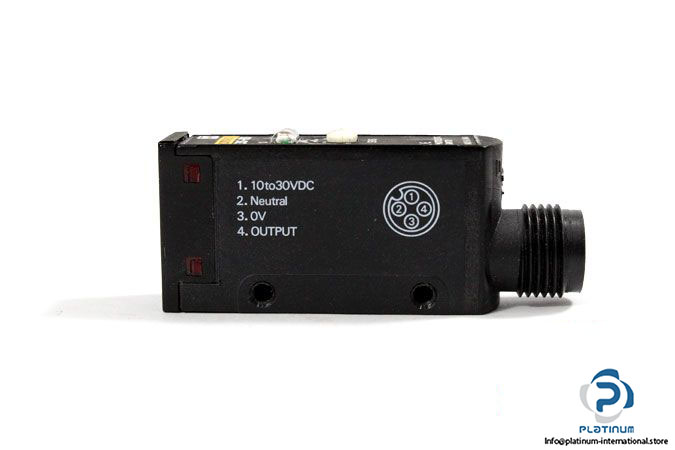

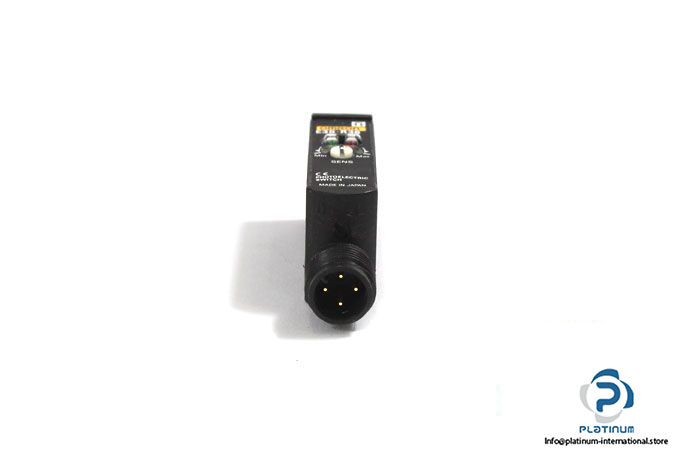

Connector type: M12 Connector, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: 0 … 40°C

Dimensions: 21 x 12 x 42 mm

Housing material: Polybutylene terephthalate

Sensing face material: Modified polyallylate

Mounting: Via mounting brackets

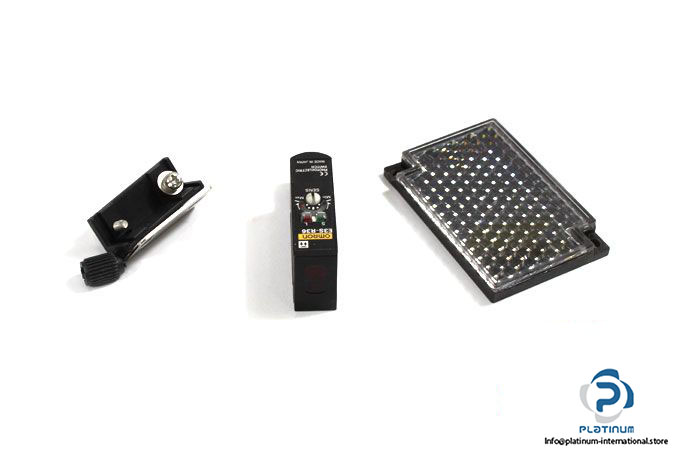

Supplied items: E39-R1 Reflector,Mounting brackets
