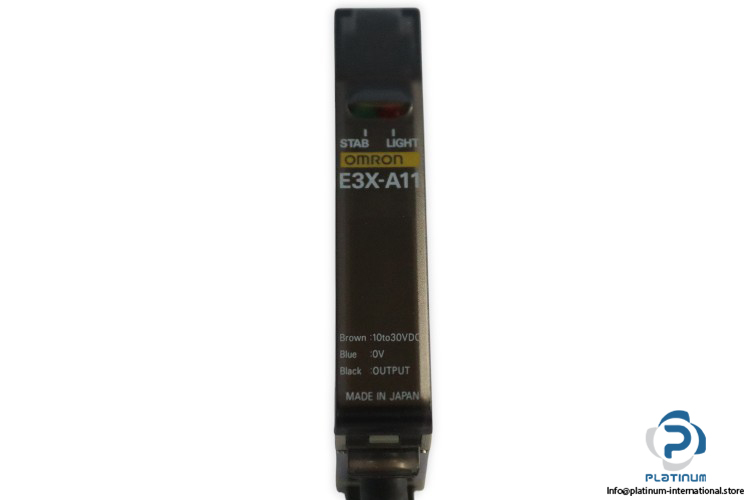

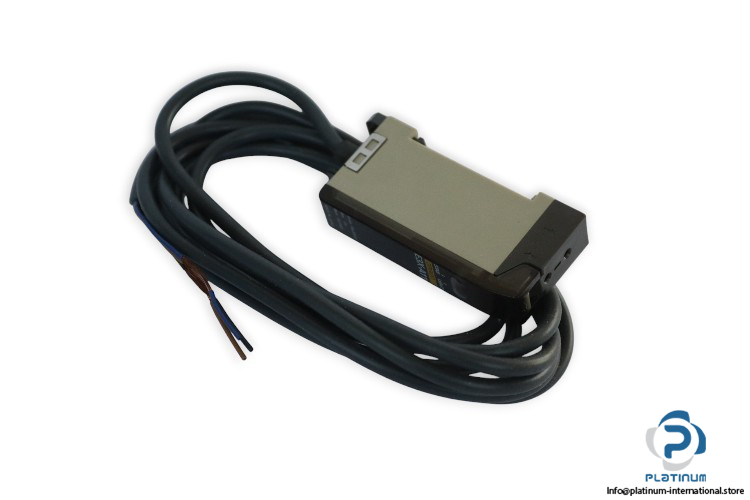

Omron E3X-A11 Sensor Amplifier

Manufacturer: OMRON
Type: Sensor Amplifier
Model: E3XA11

Application: Object Detection
Sensing Range Max.: 2 m
Light Source: Pulse-Modulated Red LED 660 nm
Supply Voltage: 10 … 30 V DC
Current Consumption: 35 mA
Switching Output: NPN
Output Current I_max.: 100 mA
Indicator: Light Indicator (Red), Stability Indicator (Green)
Operation Mode: Dark-ON, Light-ON or SET Modes (Switch Selectable)
Response Time: 200 ms
Connection Type:  Cable, 3-Wire, 2m
Material: Heat-Resistive ABS, Polycarbonate
Protection Class: IP66
Operating Temperature: -25 … 55 °C
Dimensions: 59 x 12 x 30 mm
