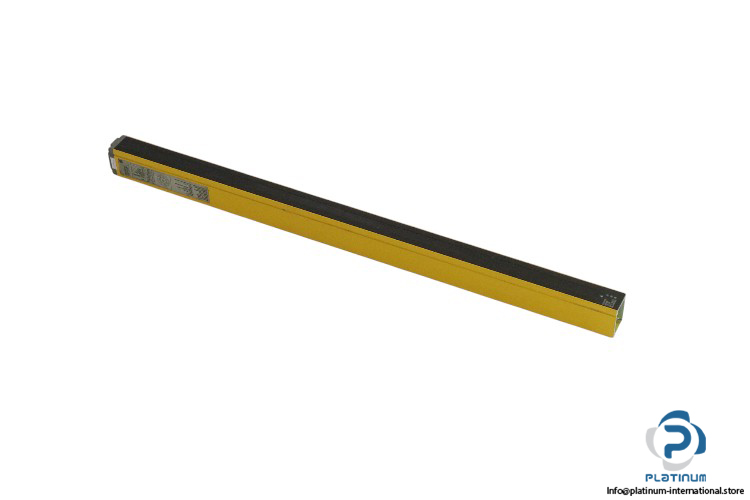

Omron F3S-B242P-L Safety Light Curtain

Omron Safety Light Curtain F3S-B242P-L

Manufacturer: Omron

Type: Safety Light Curtain

Model: F3S-B242P-L

The Omron Safety Light Curtain F3S-B242P-L is a precision-engineered safety device designed to deliver reliable protection and accurate detection in industrial environments. Utilizing advanced optical technology and robust construction, this light curtain provides a sensing distance from 0.3 to 5 m, ensuring rapid response and enhanced safety for automated systems.

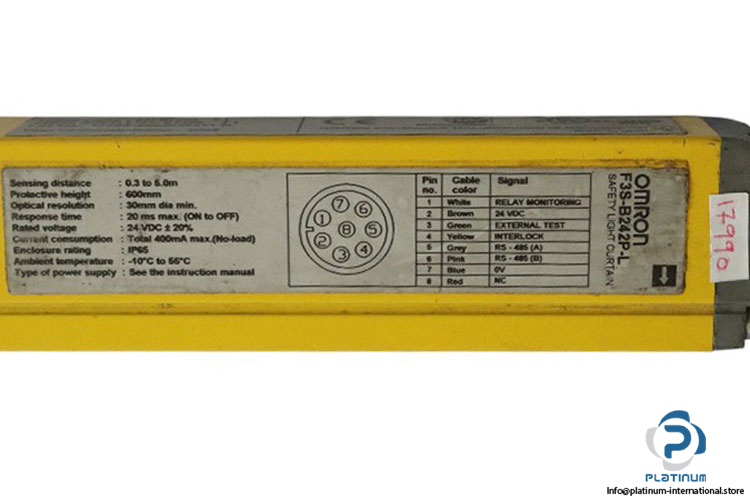

Technical Specifications

• Sensing Distance: 0.3 to 5 m
• Supply Voltage: 24V DC
• Current Consumption: 400 mA max
• Output: PNP
• Optical-axis Pitch: 25 mm
• Response Time: 20 ms max
• Optical Resolution: 30 mm dia min
• Operating Mode: Light ON
• Degree of Protection: IP65
• Materials: Case: Aluminum, Front Cover: PMMA (acrylic resin), End Caps: PA6
• Size (Cross Section): 30 x 40 mm

Engineered for demanding industrial applications, the Omron Safety Light Curtain F3S-B242P-L combines high performance with durable construction, making it an essential component for safeguarding operators and machinery in automated production environments.
