Omron F3SG-4RE0510P30 Safety Light Curtain
New
In stock1 unitReady to ship
Safety Light Curtain Omron F3SG-4RE0510P30 Type 4 safety light curtain with 24 beams, 510 mm protection height, 30 mm detection capability, and IP65/IP67 protection for industrial machine safety and hand protection applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Serial No. | D0154422N / L0154422N |

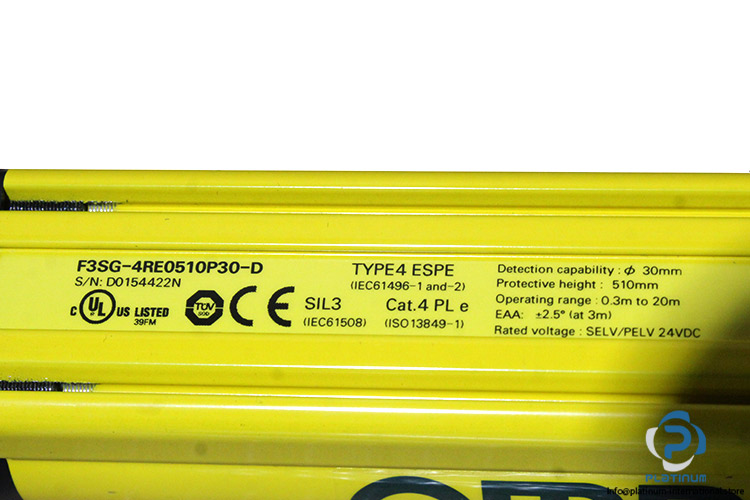

| Receiver Model | F3SG-4RE0510P30-D |

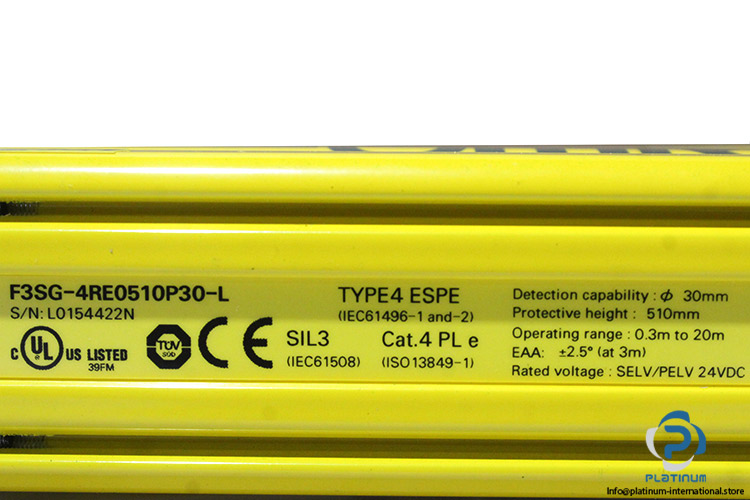

| Transmitter Model | F3SG-4RE0510P30-L |
| Function | Transmitter and Receiver |
| Voltage | 24 V DC |
| Output current OSSD | max. 300 mA |

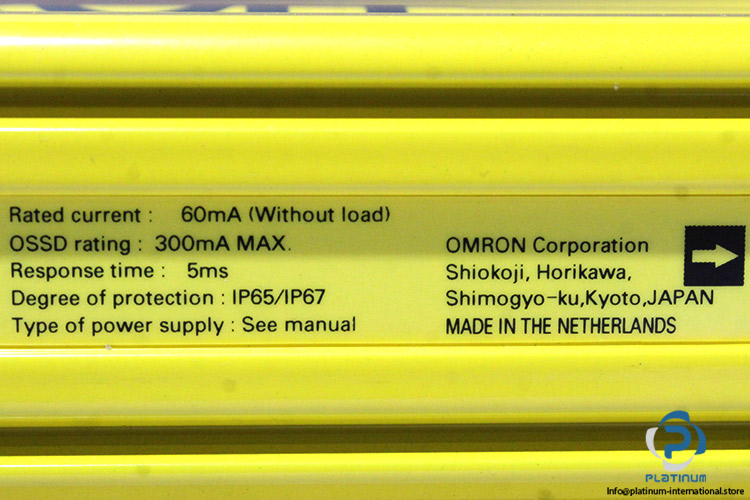

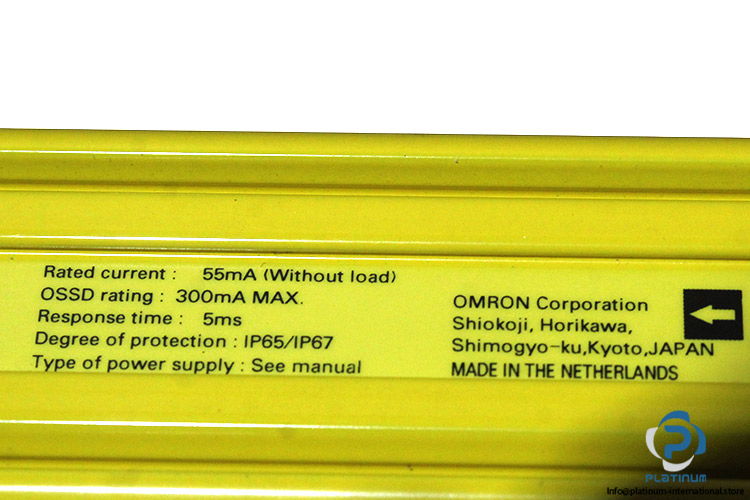

| Rated current (Without load) | 60 mA (Transmitter), 55 mA (Receiver) |
| Operating distance | 0.3 m to 20m |
| Key features | Fast response (ON/OFF applications), Simple wiring |
| Wavelength of the sensor | 870 nm |

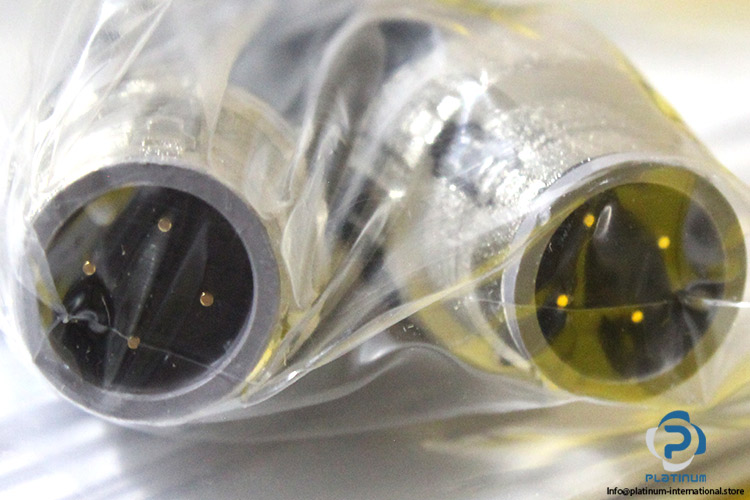

| Connection method | M12 pigtail Smartclick connector |
| Detection capability | 30 mm |
| Safety field height | 510 mm |
| No. of beams | 24 |
| No. of protected semiconductor outputs | 2 |
| Safety range | max. 20 m |
| EAA | ±2.5° (at 3m) |
| Response time | 5 ms |
| Safety Category | Type 4 ESPE ((IEC61496-1 and-2), (IEC61508) (ISO 13849-1) |
| Type of protection | Hand protection |
| Protection degree | IP65/IP67 |
| Certificate | CE, ROHS, STI, cULus, TUV |
| Temperature | -10 to 55°C |
| Overall length of sensor | 510 mm |
| Height of sensor | 35 mm |
| Width of sensor | 35 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097850 |
| Weight | 3,05 |
