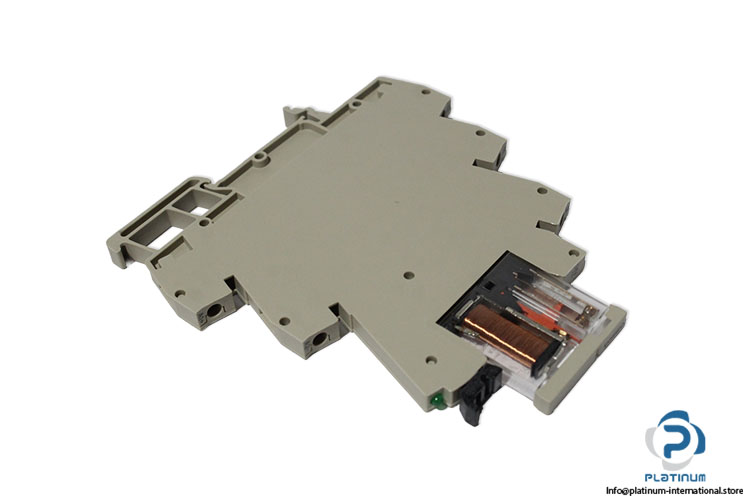

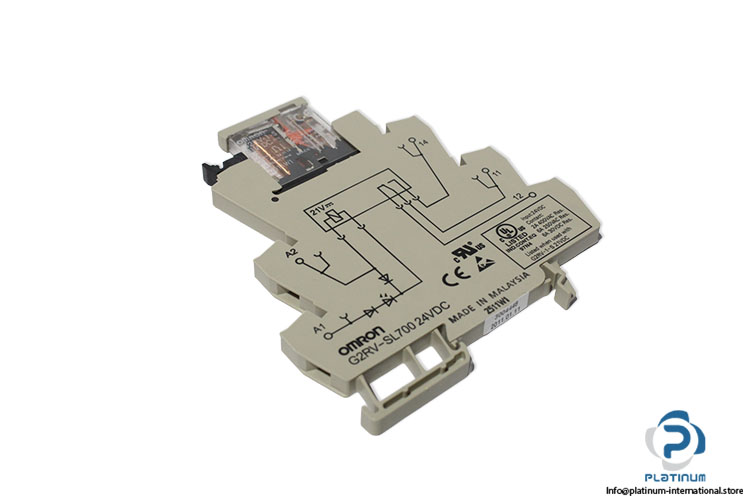

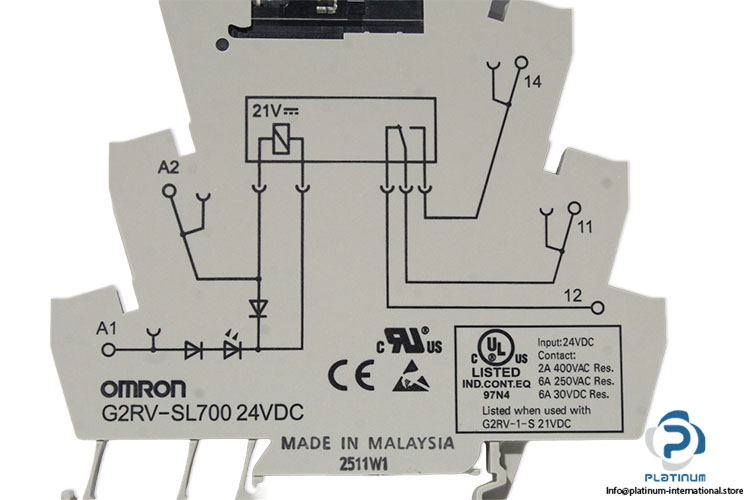

Omron G2RV-SL700 24VDC Slim Relay
New
In stock50 unitsReady to ship
Slim Relay Omron G2RV-SL700 24VDC slim relay with SPDT contacts, 24 VDC supply voltage, DIN rail mounting, and switching capacity up to 6 A, suitable for industrial control and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 2511W1 |
| Code | 6440 / 3004448 |
| Coil model | G2RV-1-S 21VDC |
| MO. No. | 0000798673 |
| Coil Voltage | 21 V DC |
| Supply voltage | 24 V DC |
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switching Current | max. 6 A |
| Rated Load | 2 A at 400 V AC / 6 A at 250 V AC / 6 A at 30 V DC (Resistive Load) |
| Switched Voltage | Max. 400 V AC / 125 V DC |
| Wiring Terminal Type | Rising box screw terminals |
| Mounting Type | Standard 35mm DIN Rail |
| Contact Material | Silver Tin Indium (AgSnIn) |
| Response Speed | 20 ms maximum operate time; 40 ms maximum release time |
| Certificate | CE, VDE, cURus, cULus |
| Operating temperature | -40 to 55°C |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097849 |
| Weight | 0,04 |
