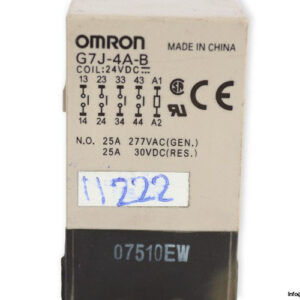

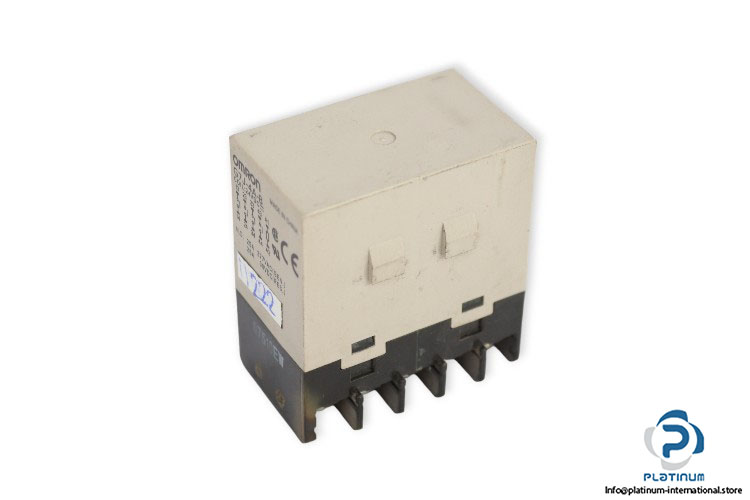

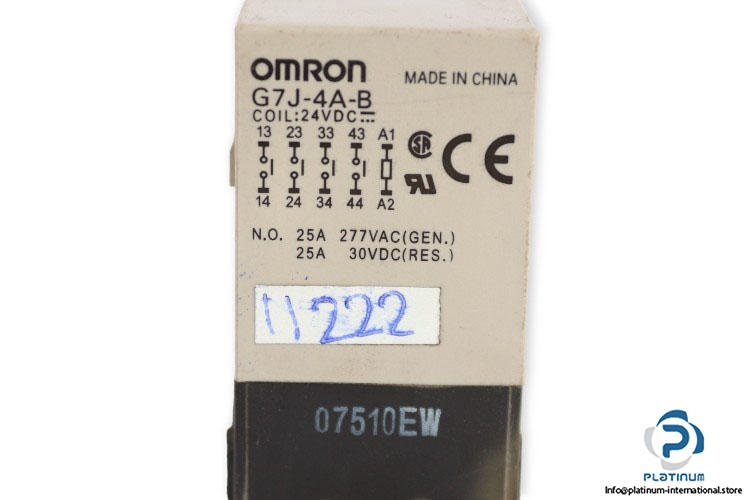

Omron G7J-4A-B Power Relay

Manufacturer: Omron
Type: Power relay
Model: G7J-4A-B

Coil ratings: 24 V DC, 83 mA
Coil resistance: 288 ohms
Power consumption: Approx. 2 W
Contact rated load:
277 VAC, 25 A (NO contact: Inductive load (cosφ = 0.4))
30 VDC, 25 A (NO contact: Resistive load)
Contact form: 4PST-NO
Contact method: Double break
Contact material: AG alloy
Terminal structurer: Screw terminal
Mounting method: W-bracket mounting
Ambient temperature (Operating): -25 … 60°C
Degree of protection: Closed type (cover)
Dimensions: 34.5 x 51.5 x 64 mm
