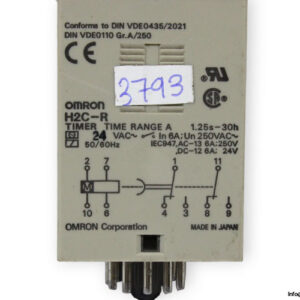

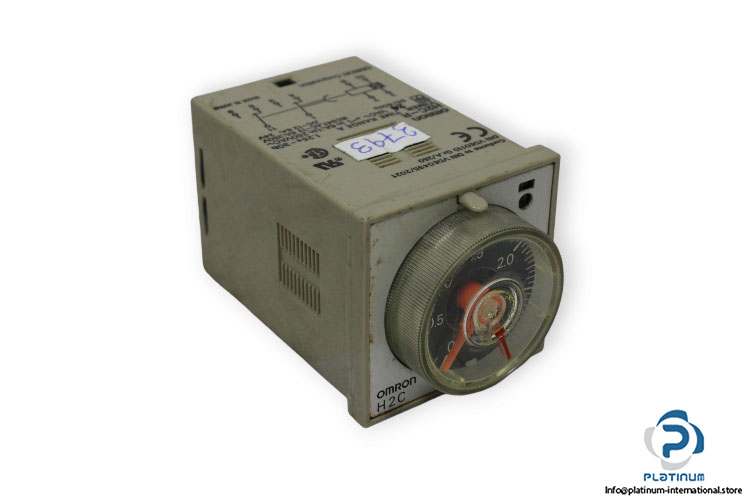

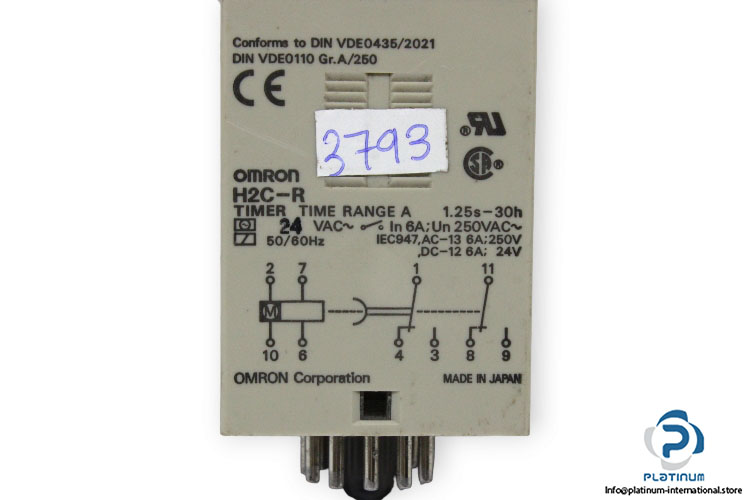

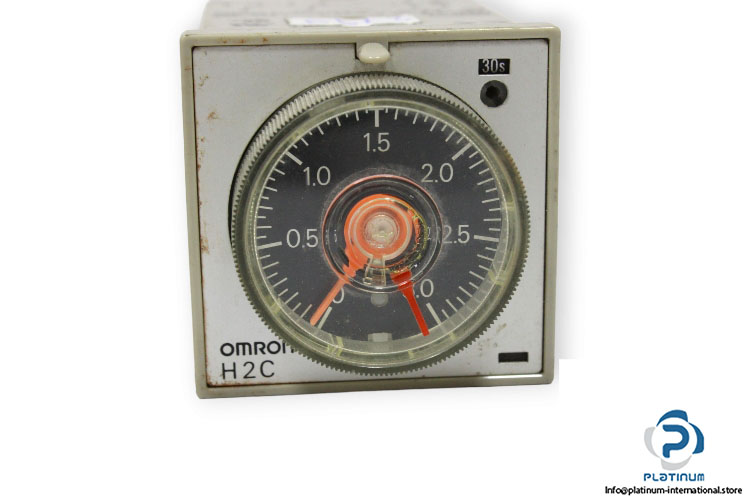

Omron H2C-R Motor Timer
Manufacturer: Omron
Type: Motor Timer
Model: H2CR
Supply Voltage: 24 V AC
Frequency: 50/60 Hz
Outputs: 2 CO contact (250 V AC,6 A)
Contact Rating:
AC-13: 250 V AC,6 A
DC-12: 24 V DC,6 A
Time ranges: 1.25s … 30h
Power consumption: 4.2 VA max.
Mounting method: Flush mounting
Ambient temperature Operating: -10 … 50°C
Degree of protection: IP40
Dimensions: 48 x 48 x 93.8 mm
