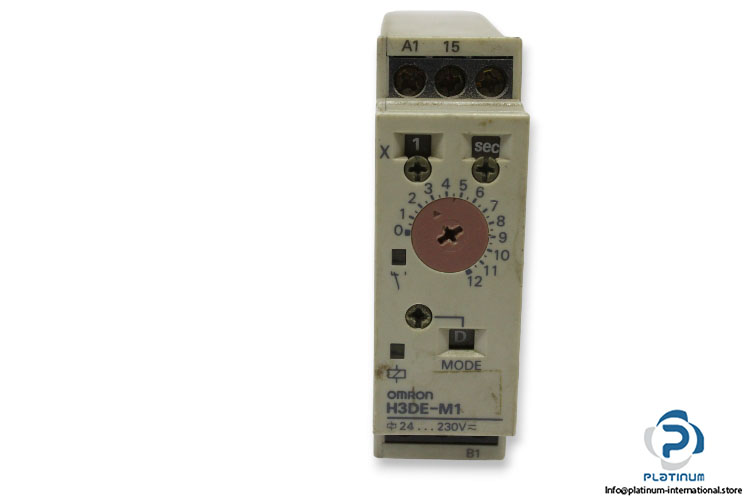

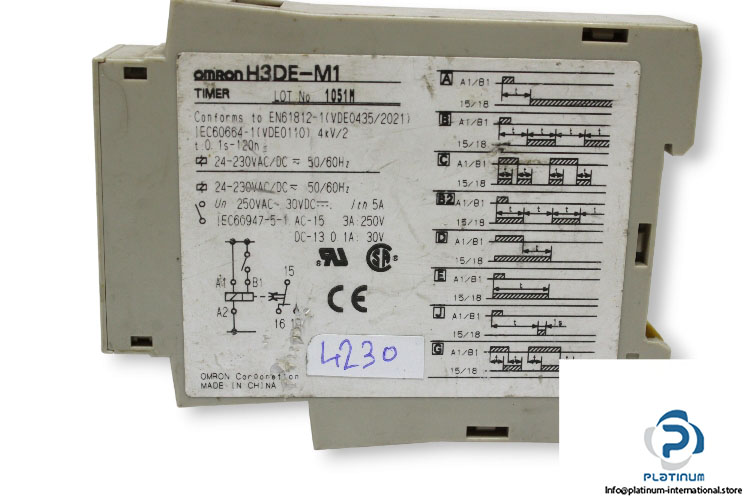

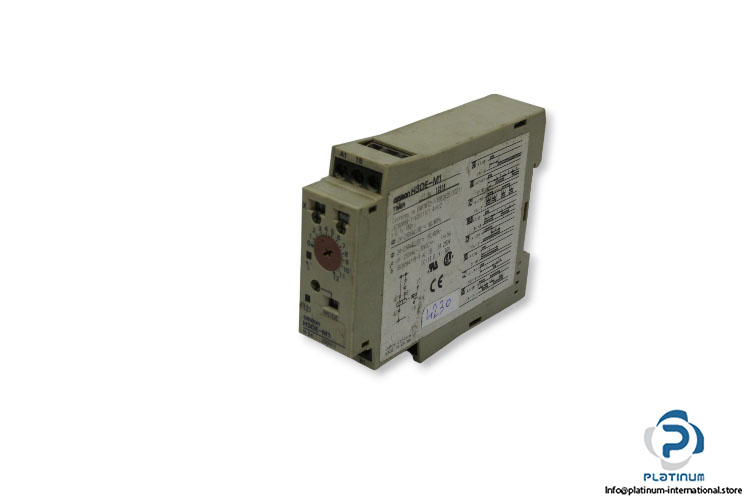

Omron H3DE-M1 Timer

Manufacturer: Omron

Type: Timer

Model: H3DE-M1

Part No: 1051M

Supply voltage: 24 … 230 VAC/DC

Frequency: 50/60 Hz

Power consumption: AC: approx. 4.3 VA (2.2 W) at 230 VAC, DC: approx. 0.7 W at 24 VDC

Control output: 1 Changeover contact (Single pole double through) 3 A at 250 VAC, 1 A at 30 VDC

Terminal block: Clamps two 2.5 mm2 max. bar terminals without sleeves

Terminal screw tightening torque: 0.98 N·m max. {approx. 10 kgf·cm max.}

Mounting method: DIN track mounting

Operating Temperature: -10 … +55 °C

Degree of protection: IP30 (Terminal block: IP20)

Dimensions: 100 x 75 x 22.5 mm
