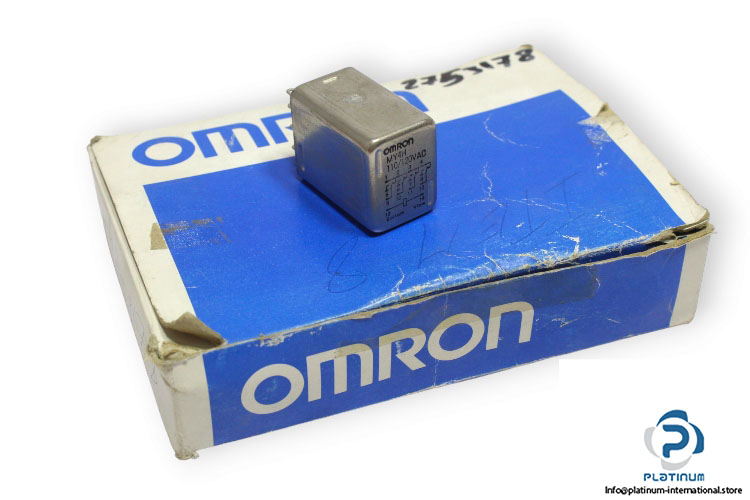

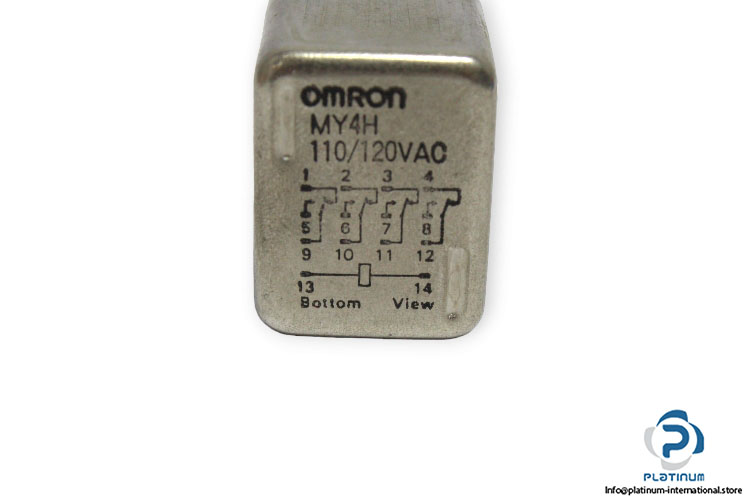

Omron MY4H Hermetically Sealed Relay
Manufacture: Omron
Type: Hermetically Sealed Relay
Model: MY4H
Rated voltage: 110/120 V AC
Rated current: 9.9/10.8 A-8.4/9.2 A,50-60 Hz
Coil resistance: 4,43 ohm
Power Consumption: 0.9 … 1.1 VA
Contact material: Ag alloy
Contact Ratings:
Max. switching voltage: 125 V AC, 125 V DC
Max. switching current: 3 A
Max. switching power: 330 VA, 72 W
Operate time: 20 ms max.
No. of poles: 4
Ambient temperature Operating: -25 … 60°C
Dimensions: 42.2 x 28.5 x 22 mm
